| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 415-22-21001 | AXLE,FRONT | 1 | SN: 10041- |
|||
| ? | □415-22-21000 | AXLE,FRONT | 1 | SN: 10001-10040 |
|||

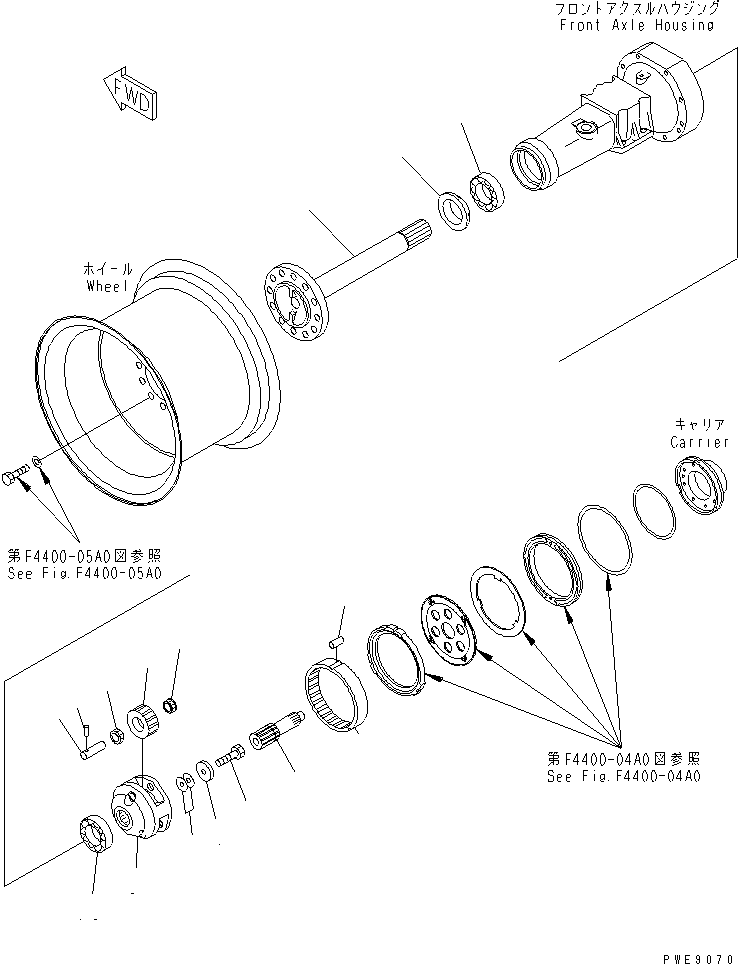

| ? | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-05A0. | ||||||
| ? | 415-22-22530 | • GEAR | 6 | SN: 10001- |
|||
| ? | 415-22-12811 | • BEARING | 12 | SN: 10001- |
|||
| ? | 415-22-22611 | • CARRIER | 2 | SN: 10001- |
|||
| ? | 415-22-12351 | • HOLDER | 2 | SN: 10001- |
|||
| ? | 415-22-12512 | • SHAFT | 6 | SN: 10001- |
|||
| ? | 04025-00616 | • PIN,SPRING | 6 | SN: 10001- |
|||
| ? | 415-22-22450 | • SHAFT | 2 | SN: 10001- |
|||
| ? | 415-22-22810 | • BEARING | 2 | SN: 10001- |
|||
| ? | 415-22-22830 | • SEAL | 2 | SN: 10001- |
|||
| ? | 415-22-22820 | • BEARING | 2 | SN: 10001- |
|||
| ? | 415-22-22540 | • GEAR | 2 | SN: 10001- |
|||
| ? | 415-22-22580 | • PIN | 6 | SN: 10001- |
|||
| ? | 01010-61250 | • BOLT | 2 | SN: 10001- |
|||
| ? | 415-22-12360 | • SHIM¤ 0.05MM | 2 | SN: 10001- |
|||
| ? | 415-22-12370 | • SHIM¤ 0.2MM | 4 | SN: 10001- |
|||
| ? | 415-22-12380 | • SHIM¤ 0.3MM | 6 | SN: 10001- |
|||
| ? | 415-22-12390 | • SHIM¤ 0.8MM | 2 | SN: 10001- |
|||
| ? | 415-22-22420 | • SHAFT | 2 | SN: 10001- |
