| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

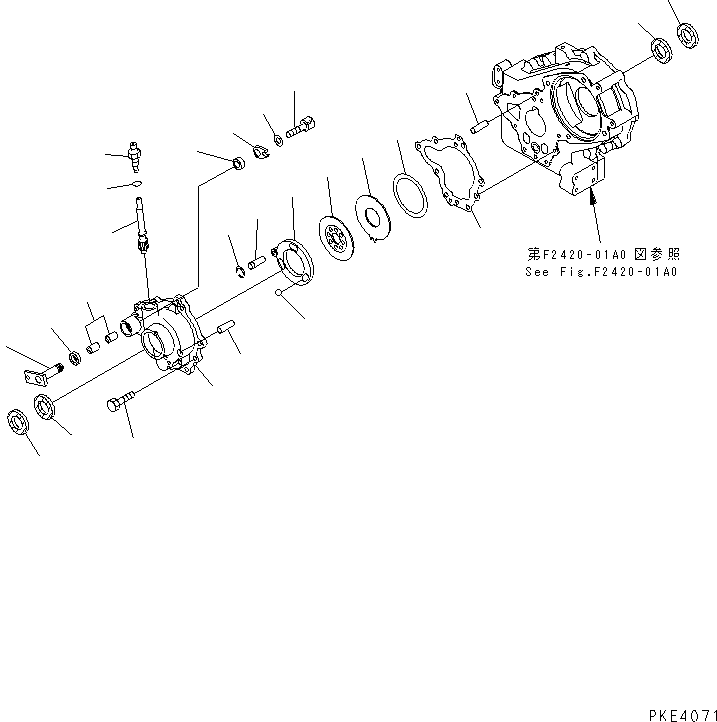

| ? | (415-17-20003) | TRANSFER ASS'Y | 1 | SN: 10050- |
|||
| ? | (□415-17-20002) | TRANSFER ASS'Y | 1 | SN: 10001-10049 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2420-01A0 AND F2420-02A0. | ||||||
| ? | 415-17-26111 | • HOUSING | 1 | SN: 10001- |
|||
| ? | 01010-31235 | • BOLT | 8 | SN: 10001- |
|||
| ? | 04020-01228 | • PIN,DOWEL | 2 | SN: 10001- |
|||
| ? | 714-09-16520 | • GASKET | 1 | SN: 10001- |
|||
| ? | 714-09-16221 | • PISTON ASS'Y | 1 | SN: 10001- |
|||
| ? | 714-09-16121 | • • PISTON | 1 | SN: 10001- |
|||
| ? | 714-09-16230 | • • PIN | 1 | SN: 10001- |
|||
| ? | 714-09-16240 | • • E-RING | 1 | SN: 10001- |
|||
| ? | 04260-01587 | • BALL | 3 | SN: 10001- |
|||
| ? | 415-17-26172 | • LEVER | 1 | SN: 10001- |
|||
| ? | 714-09-16271 | • SPACER | 1 | SN: 10001- |
|||
| ? | 714-09-16181 | • LEVER | 1 | SN: 10001- |
|||
| ? | 714-09-16282 | • WASHER | 1 | SN: 10001- |
|||
| ? | 01252-30816 | • BOLT | 1 | SN: 10001- |
|||
| ? | 06120-02016 | • BEARING | 2 | SN: 10001- |
|||
| ? | 714-09-16190 | • SEAL | 1 | SN: 10001- |
|||
| ? | 714-09-16130 | • PLATE | 6 | SN: 10001- |
|||
| ? | 714-09-16140 | • DISC | 5 | SN: 10001- |
|||
| ? | 714-09-16150 | • SPRING,WAVE | 5 | SN: 10001- |
|||
| ? | 04022-20065 | • PIN,DOWEL | 1 | SN: 10001- |
|||
| ? | 415-17-23820 | • GEAR | 1 | SN: 10001- |
|||
| ? | 415-22-11880 | • SLEEVE | 1 | SN: 10001- |
|||
| ? | 07002-12434 | • O-RING | 1 | SN: 10001- |
|||
| ? | 714-01-13271 | • SEAL,OIL | 2 | SN: 10001- |
|||
| ? | 714-01-13280 | • SEAL,DUST | 2 | SN: 10001- |
