| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

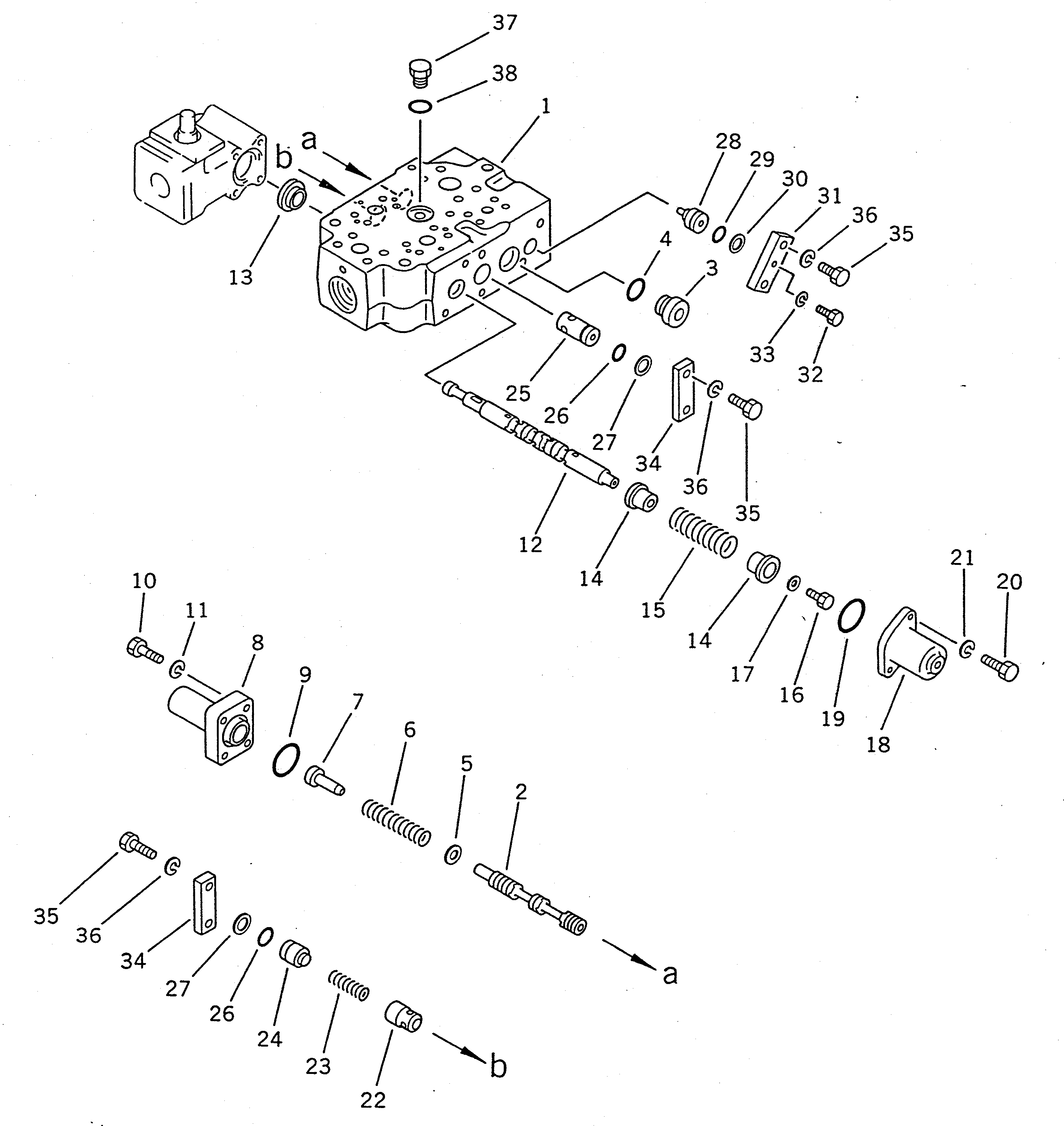

| ? | 702-13-64001 | VALVE ASS'Y | 1 | SN: 10001-19999 |
|||
| ? | ☆ | • BODY | 1 | SN: 10001-19999 |
|||
| ? | ☆ | • SPOOL | 1 | SN: 10001-19999 |
|||
| ? | 07040-12414 | • PLUG | 1 | SN: 10001-19999 |
|||
| ? | 07002-12434 | • O-RING | 1 | SN: 10001-19999 |
|||
| ? | 287-17-11251 | • RETAINER | 1 | SN: 10001-19999 |
|||
| ? | 702-13-64170 | • SPRING | 1 | SN: 10001-19999 |
|||
| ? | 702-13-61390 | • BOSS | 1 | SN: 10001-19999 |
|||
| ? | 702-13-61181 | • COVER | 1 | SN: 10001-19999 |
|||
| ? | 07000-13038 | • O-RING | 1 | SN: 10001-19999 |
|||
| ? | 01010-51040 | • BOLT | 4 | SN: 10001-19999 |
|||
| ? | 01602-21030 | • WASHER,SPRING | 4 | SN: 10001-19999 |
|||
| ? | ☆ | • SPOOL | 1 | SN: 10001-19999 |
|||
| ? | 702-13-61650 | • COLLAR | 1 | SN: 10001-19999 |
|||
| ? | 702-13-61160 | • RETAINER | 2 | SN: 10001-19999 |
|||
| ? | 702-13-64270 | • SPRING | 1 | SN: 10001-19999 |
|||
| ? | 01252-30816 | • BOLT | 1 | SN: 10001-19999 |
|||
| ? | 01643-30823 | • WASHER | 1 | SN: 10001-19999 |
|||
| ? | ☆ | • CASE | 1 | SN: 10001-19999 |
|||
| ? | 07000-13040 | • O-RING | 1 | SN: 10001-19999 |
|||
| ? | 01252-30825 | • BOLT | 2 | SN: 10001-19999 |
|||
| ? | 01602-20825 | • WASHER,SPRING | 2 | SN: 10001-19999 |
|||
| ? | 07750-02537 | • VALVE,CHECK | 1 | SN: 10001-19999 |
|||
| ? | 07750-02545 | • SPRING | 1 | SN: 10001-19999 |
|||
| ? | 702-13-61190 | • SEAT | 1 | SN: 10001-19999 |
|||
| ? | 702-13-64151 | • ORIFICE | 1 | SN: 10001-19999 |
|||
| ? | 07000-12021 | • O-RING | 2 | SN: 10001-19999 |
|||
| ? | 07001-02021 | • RING,BACK-UP | 2 | SN: 10001-19999 |
|||
| ? | 702-13-61290 | • SEAT | 1 | SN: 10001-19999 |
|||
| ? | 07000-12018 | • O-RING | 1 | SN: 10001-19999 |
|||
| ? | 07001-02018 | • RING,BACK-UP | 1 | SN: 10001-19999 |
|||
| ? | 702-13-64240 | • PLATE | 1 | SN: 10001-19999 |
|||
| ? | 01010-50820 | • BOLT | 1 | SN: 10001-19999 |
|||
| ? | 01602-20825 | • WASHER,SPRING | 1 | SN: 10001-19999 |
|||
| ? | 702-13-61240 | • PLATE | 2 | SN: 10001-19999 |
|||
| ? | 01010-51030 | • BOLT | 6 | SN: 10001-19999 |
|||
| ? | 01602-21030 | • WASHER,SPRING | 6 | SN: 10001-19999 |
|||
| ? | 07040-11812 | • PLUG | 1 | SN: 10001-19999 |
|||
| ? | 07002-11823 | • O-RING | 1 | SN: 10001-19999 |
