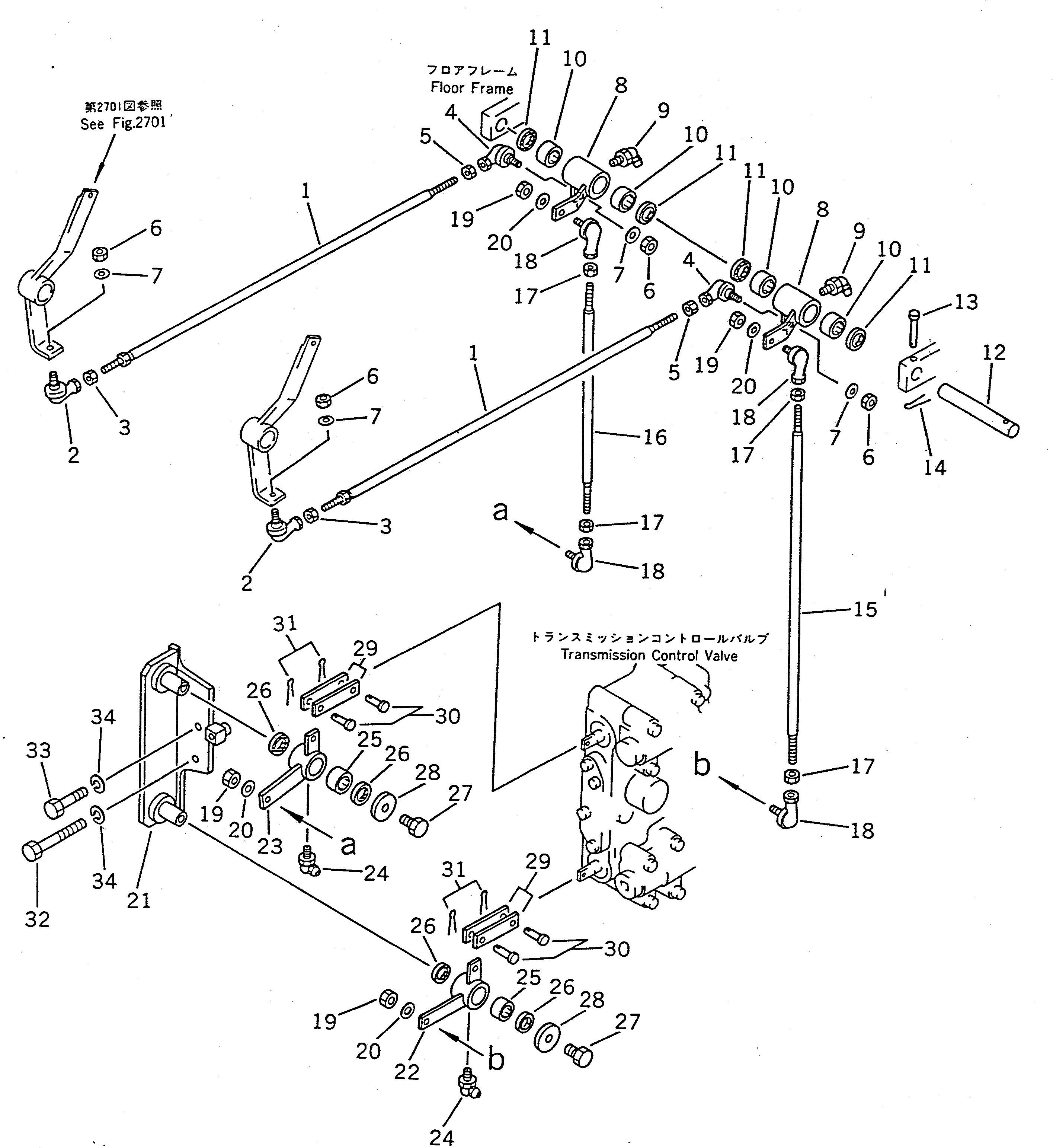

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 417-43-16222 | ROD | 2 | SN: 10001-@ |
|||
| ? | 417-09-12130 | JOINT | 2 | SN: 10001-@ |
|||
| ? | 01580-00806 | NUT | 2 | SN: 10001-@ |
|||
| ? | 417-09-12150 | JOINT,L.H. THREAD | 2 | SN: 10001-@ |
|||
| ? | 01508-20805 | NUT,L.H. THREAD | 2 | SN: 10001-@ |
|||
| ? | 426-09-11140 | NUT | 4 | SN: 10001-@ |
|||
| ? | 01643-30823 | WASHER | 4 | SN: 10001-@ |
|||
| ? | 417-43-16231 | LEVER | 2 | SN: 10001-19999 |
|||
| ? | 07020-00900 | FITTING,GREASE | 2 | SN: 10001-@ |
|||
| ? | 06120-02016 | BEARING,NEEDLE | 4 | SN: 10001-@ |
|||
| ? | 06122-02004 | SEAL,BEARING | 4 | SN: 10001-@ |
|||
| ? | 417-43-16250 | PIN | 1 | SN: 10001-@ |
|||
| ? | 20T-26-11220 | PIN | 1 | SN: 10001-@ |
|||
| ? | 04050-11612 | PIN,COTTER | 1 | SN: 10001-@ |
|||
| ? | 417-43-16271 | ROD | 1 | SN: 10001-19999 |
|||
| ? | 417-43-16261 | ROD | 1 | SN: 10001-@ |
|||
| ? | 01580-00806 | NUT | 4 | SN: 10001-@ |
|||
| ? | 417-09-12130 | JOINT | 4 | SN: 10001-@ |
|||
| ? | 426-09-11140 | NUT | 4 | SN: 10001-@ |
|||
| ? | 01643-30823 | WASHER | 4 | SN: 10001-@ |
|||
| ? | 417-43-16323 | BRACKET | 1 | SN: .-19999 |
|||
| ? | □417-43-16321 | BRACKET | 1 | SN: 10001-. |
|||
| ? | 417-43-16292 | LEVER | 1 | SN: .-19999 |
|||
| ? | □417-43-16291 | LEVER | 1 | SN: 10001-. |
|||
| ? | 417-43-16282 | LEVER | 1 | SN: .-19999 |
|||
| ? | □417-43-16281 | LEVER | 1 | SN: 10001-. |
|||
| ? | 07020-00900 | FITTING,GREASE | 2 | SN: 10001-@ |
|||
| ? | 06120-02016 | BEARING,NEEDLE | 2 | SN: 10001-@ |
|||
| ? | 06122-02004 | SEAL,BEARING | 4 | SN: 10001-@ |
|||
| ? | 01010-31016 | BOLT | 2 | SN: 10001-19999 |
|||
| ? | 417-43-16210 | WASHER | 2 | SN: 10001-@ |
|||
| ? | 417-43-16311 | PLATE | 4 | SN: 10001-@ |
|||
| ? | 04205-10820 | PIN | 4 | SN: 10001-@ |
|||
| ? | 04050-12015 | PIN,COTTER | 4 | SN: 10001-@ |
|||
| ? | 01010-31070 | BOLT | 1 | SN: 10001-19999 |
|||
| ? | 01010-31045 | BOLT | 2 | SN: 10001-19999 |
|||
| ? | 01602-01030 | WASHER,SPRING | 3 | SN: 10001-19999 |
