| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (416-15-11001) | TRANSMISSION ASS'Y | 1 | SN: 10001-19999 |
|||

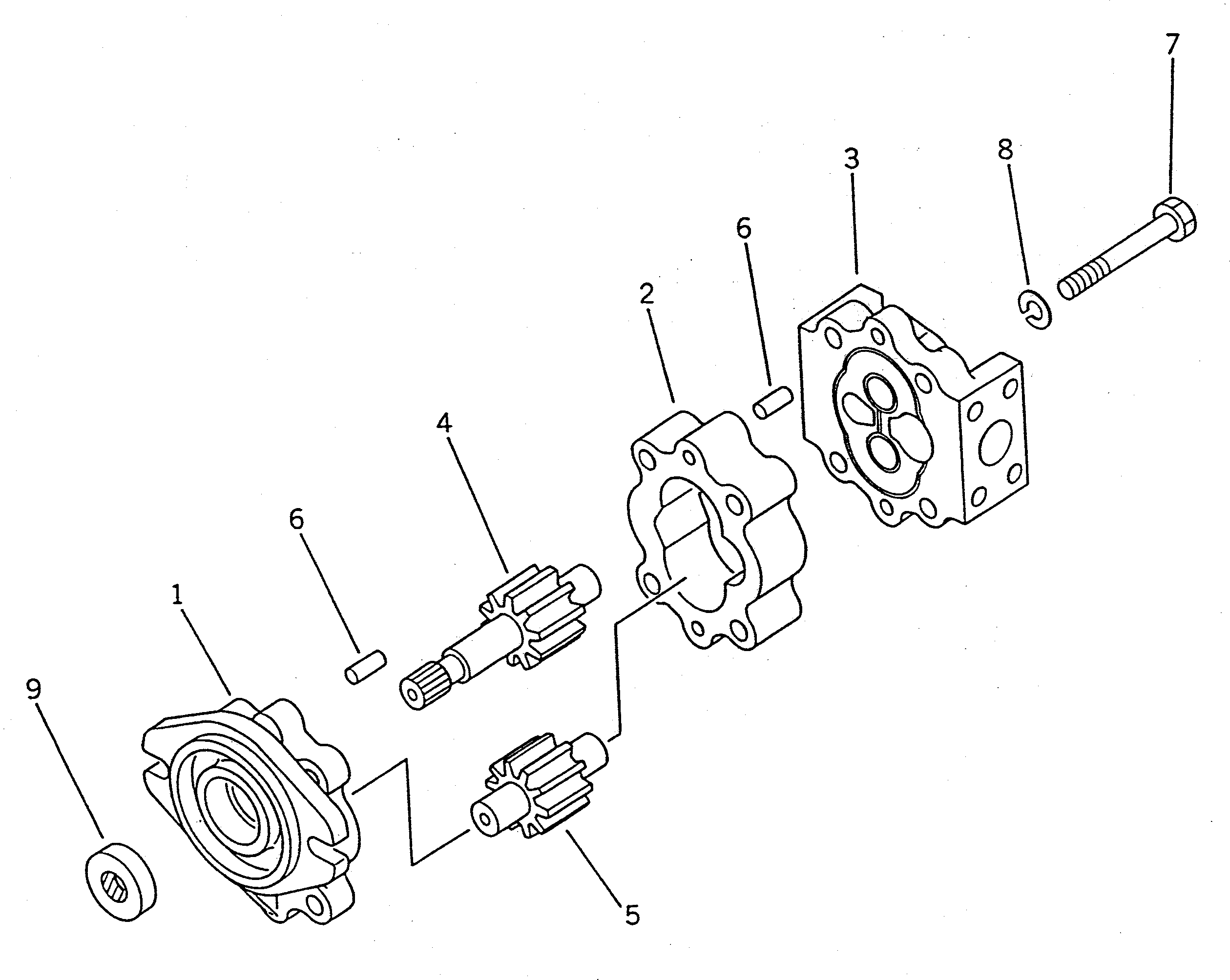

| ? | 704-21-29400 | • PUMP ASS'Y | 1 | SN: 10001-19999 |
|||
| ? | (★704-27-01010) | • • BRACKET | 1 | SN: 10001-19999 |
|||
| ? | (★704-27-01620) | • • • BUSHING | 2 | SN: 10001-19999 |
|||
| ? | (★704-27-29110) | • • CASE,GEAR | 1 | SN: 10001-19999 |
|||
| ? | (★704-27-01410) | • • COVER | 1 | SN: 10001-19999 |
|||
| ? | (★704-27-01620) | • • • BUSHING | 2 | SN: 10001-19999 |
|||
| ? | (★704-27-29610) | • • GEAR,DRIVE | 1 | SN: 10001-19999 |
|||
| ? | (★704-27-29710) | • • GEAR,DRIVEN | 1 | SN: 10001-19999 |
|||
| ? | (★04020-00820) | • • PIN,DOWEL | 4 | SN: 10001-19999 |
|||
| ? | (★01252-31075) | • • BOLT | 4 | SN: 10001-19999 |
|||
| ? | (★01602-21030) | • • WASHER,SPRING | 4 | SN: 10001-19999 |
|||
| ? | 07423-71160 | • • SEAL,OIL | 1 | SN: 10001-19999 |
