| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

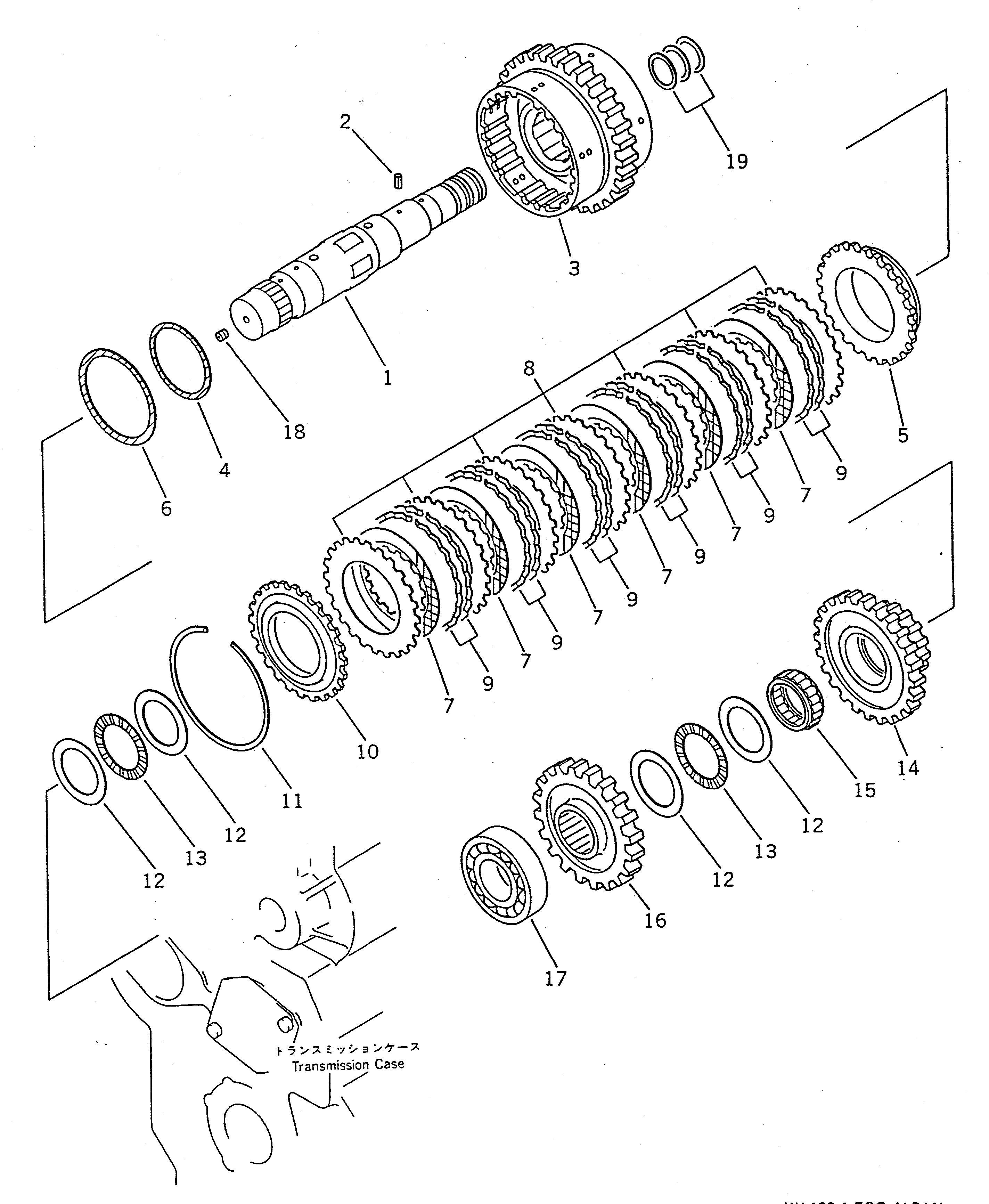

| ? | (416-15-11001) | TRANSMISSION ASS'Y | 1 | SN: 10001-19999 |
|||
| ? | 416-15-13100 | • CLUTCH ASS'Y,2ND AND 3RD | 1 | SN: 10001-19999 |
|||
| ? | 416-15-13110 | • • SHAFT ASS'Y | 1 | SN: 10001-19999 |
|||
| ? | ☆ | • • • SHAFT,2ND AND 3RD | 1 | SN: 10001-19999 |
|||
| ? | ☆ | • • • PIN,SPRING | 4 | SN: 10001-19999 |
|||
| ? | ☆ | • • • HOUSING | 1 | SN: 10001-19999 |
|||
| ? | 419-15-12210 | • • RING,SEAL (KIT) | 1 | SN: 10001-@ |
|||
| ? | 419-15-13191 | • • PISTON,2ND | 1 | SN: 10001-@ |
|||
| ? | 419-15-12580 | • • RING,SEAL (KIT) | 1 | SN: 10001-@ |
|||
| ? | 419-15-12290 | • • DISC | 6 | SN: 10001-19999 |
|||
| ? | 419-15-12310 | • • PLATE,SEPARATE | 7 | SN: 10001-19999 |
|||
| ? | 419-15-12132 | • • SPRING,WAVE | 12 | SN: 10001-19999 |
|||
| ? | 419-15-12280 | • • PLATE,END | 1 | SN: 10001-@ |
|||
| ? | 419-15-12140 | • • RING,SNAP | 1 | SN: 10001-@ |
|||
| ? | 419-15-12680 | • • WASHER,THRUST | 4 | SN: 10001-@ |
|||
| ? | 419-15-12670 | • • BEARING,THRUST | 2 | SN: 10001-@ |
|||
| ? | 417-15-13221 | • • GEAR,2ND | 1 | SN: 10001-@ |
|||
| ? | 419-15-13150 | • • BEARING | 1 | SN: 10001-@ |
|||
| ? | 417-15-13241 | • • GEAR | 1 | SN: 10841-@ |
|||
| ? | □417-15-13240 | • • GEAR | 1 | SN: 10001-10840 |
|||
| ? | 06030-06312 | • • BEARING | 1 | SN: 10001-@ |
|||
| ? | 419-15-12750 | • ORIFICE | 1 | SN: 10001-@ |
|||
| ? | 419-15-12120 | • RING,SEAL (KIT) | 3 | SN: 10001-19999 |
