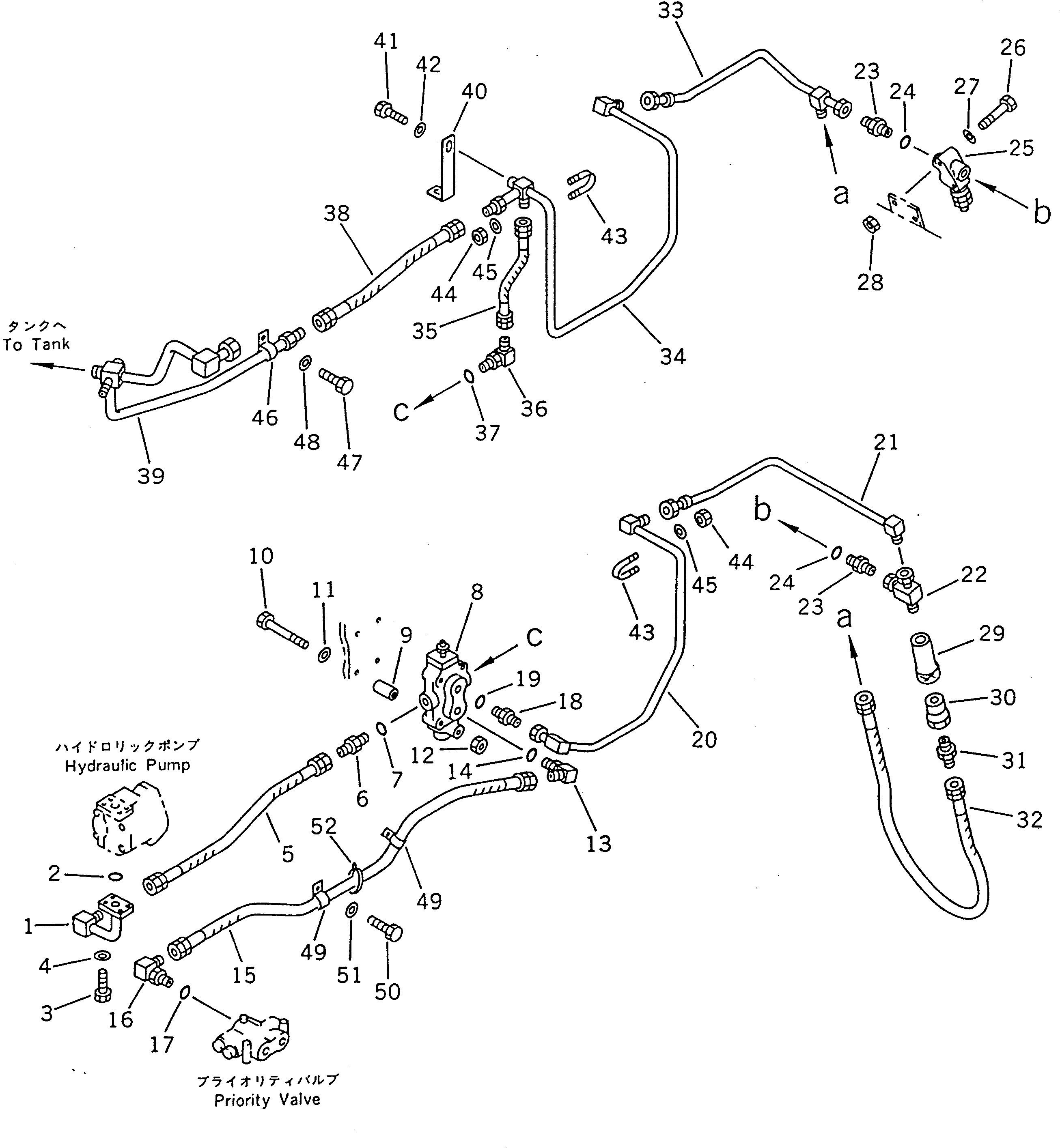

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 416-855-2270 | TUBE | 1 | SN: 10001- |
|||
| ? | 07000-13025 | O-RING | 1 | SN: 10001- |
|||
| ? | 01010-30835 | BOLT | 4 | SN: 10001- |
|||
| ? | 01643-50823 | WASHER | 4 | SN: 10001- |
|||
| ? | 07086-00607 | HOSE | 1 | SN: 10001- |
|||
| ? | 07230-10628 | UNION | 1 | SN: 10001- |
|||
| ? | 07002-12434 | O-RING | 1 | SN: 10001- |
|||
| ? | 416-855-2110 | SELECTOR VALVE ASS'Y | 1 | SN: 10001- |
|||
| ? | 416-855-2120 | SPACER | 3 | SN: 10001- |
|||
| ? | 01011-51060 | BOLT | 3 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 6 | SN: 10001- |
|||
| ? | 01580-11008 | NUT | 3 | SN: 10001- |
|||
| ? | 07235-10628 | ELBOW | 1 | SN: 10001- |
|||
| ? | 07002-12434 | O-RING | 1 | SN: 10001- |
|||
| ? | 07086-00614 | HOSE | 1 | SN: 20001- |
|||
| ? | (416-62-13420) | ELBOW | 1 | SN: 20001- |
|||
| ? | (416-62-13450) | O-RING | 1 | SN: 20001- |
|||
| ? | 07230-10522 | UNION | 1 | SN: 20001- |
|||
| ? | 07002-12434 | O-RING | 1 | SN: 10001- |
|||
| ? | 416-855-2620 | TUBE | 1 | SN: 20001- |
|||
| ? | 416-855-2660 | TUBE | 1 | SN: 20001- |
|||
| ? | 416-855-2490 | TEE | 1 | SN: 10001- |
|||
| ? | 416-855-2510 | NIPPLE | 2 | SN: 10001- |
|||
| ? | 15R-62-15410 | O-RING | 2 | SN: 10001- |
|||
| ? | 416-855-2201 | RELIEF VALVE ASS'Y | 1 | SN: 10001- |
|||
| ? | 01010-50860 | BOLT | 2 | SN: 10001- |
|||
| ? | 01643-30823 | WASHER | 2 | SN: 10001- |
|||
| ? | 01580-10806 | NUT | 2 | SN: 10001- |
|||
| ? | 416-855-2340 | JOINT ASS'Y | 1 | SN: 10001- |
|||
| ? | 416-855-2360 | • JOINT | 1 | SN: 10001- |
|||
| ? | 416-855-2350 | • JOINT | 1 | SN: 10001- |
|||
| ? | 205-62-69660 | NIPPLE | 1 | SN: 10001- |
|||
| ? | 07108-20512 | HOSE | 1 | SN: 10001- |
|||
| ? | 416-855-2640 | TUBE | 1 | SN: 20001- |
|||
| ? | 416-855-2650 | TUBE | 1 | SN: 20001- |
|||
| ? | 416-855-2680 | HOSE | 1 | SN: 20001- |
|||
| ? | 114-62-23210 | ELBOW | 1 | SN: 10001- |
|||
| ? | 07002-12434 | O-RING | 1 | SN: 10001- |
|||
| ? | 07108-20404 | HOSE | 1 | SN: 10001- |
|||
| ? | 416-855-2382 | TUBE | 1 | SN: 20001- |
|||
| ? | 416-855-2690 | PLATE | 1 | SN: 20001- |
|||
| ? | 01010-51020 | BOLT | 2 | SN: 20001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 20001- |
|||
| ? | 07283-22236 | CLIP | 2 | SN: 10001- |
|||
| ? | 01599-01011 | NUT | 4 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 10001- |
|||
| ? | 421-09-12170 | CLIP | 1 | SN: 10001- |
|||
| ? | 01010-51020 | BOLT | 1 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 1 | SN: 10001- |
|||
| ? | 08036-23014 | CLIP | 2 | SN: 20001- |
|||
| ? | 01010-51020 | BOLT | 2 | SN: 20001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 20001- |
|||
| ? | 08034-00823 | BAND | 2 | SN: 10001- |
