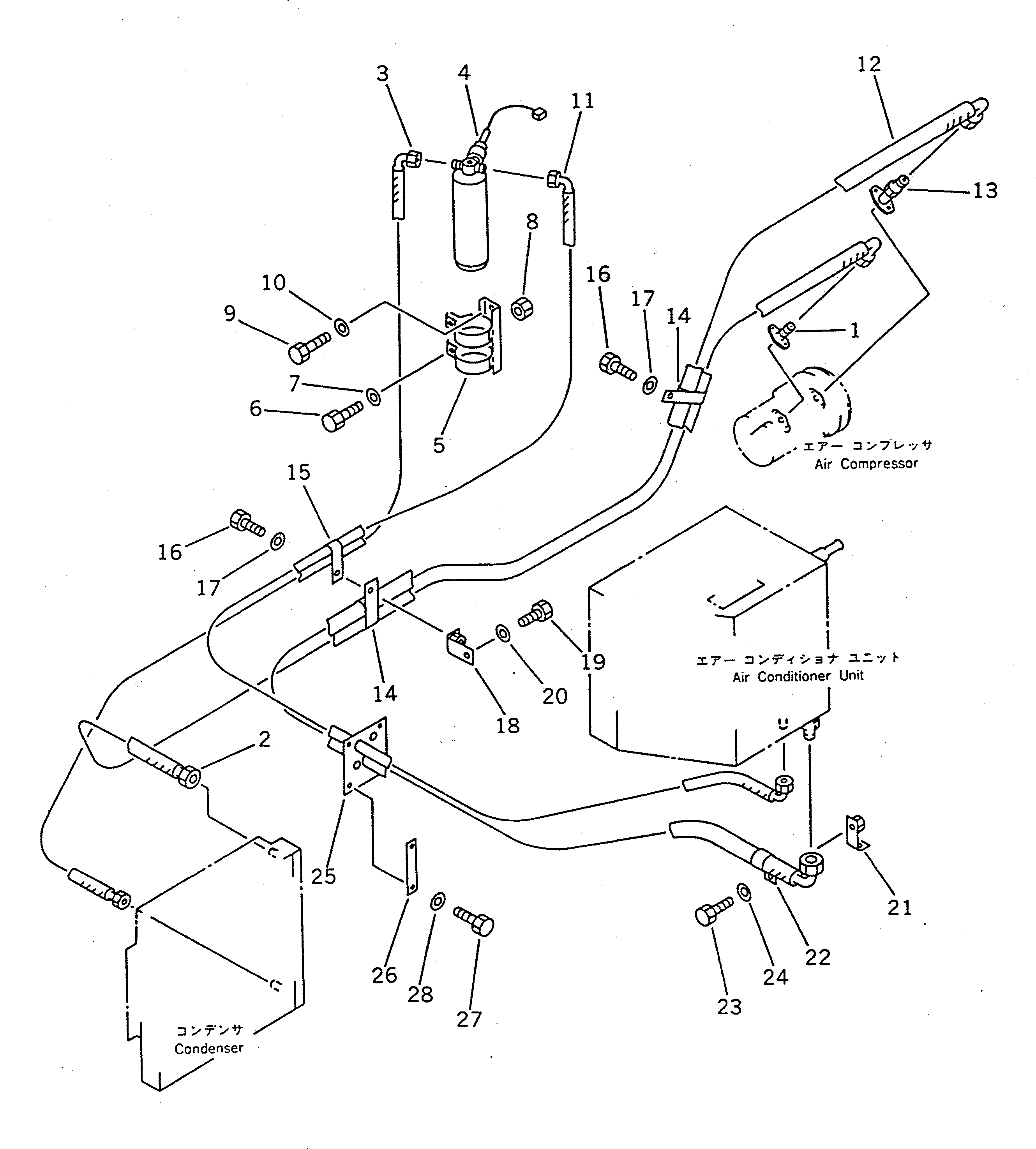

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 421-07-11780 | CONNECTOR | 1 | SN: 10001-19999 |
|||
| ? | 417-963-2110 | HOSE | 1 | SN: 10001-19999 |
|||
| ? | 417-963-2120 | HOSE | 1 | SN: 10001-19999 |
|||
| ? | 419-07-11711 | TANK,RECEIVER | 1 | SN: 10001-19999 |
|||
| ? | 425-07-11270 | • SWITCH,PRESSURE | 1 | SN: 10001-19999 |
|||
| ? | 425-07-11850 | • COVER | 1 | SN: 10001-19999 |
|||
| ? | 425-07-11860 | • WIRE ASS'Y | 1 | SN: 10001-19999 |
|||
| ? | 419-07-11721 | BRACKET | 1 | SN: 10001-19999 |
|||
| ? | 01010-50620 | • BOLT | 2 | SN: 10001-19999 |
|||
| ? | 01643-30623 | • WASHER | 2 | SN: 10001-19999 |
|||
| ? | 01580-10605 | • NUT | 2 | SN: 10001-19999 |
|||
| ? | 01010-50820 | BOLT | 2 | SN: 10001-19999 |
|||
| ? | 01643-30823 | WASHER | 2 | SN: 10001-19999 |
|||
| ? | 417-963-2130 | HOSE | 1 | SN: 10001-19999 |
|||
| ? | 417-963-2140 | HOSE | 1 | SN: 10001-19999 |
|||
| ? | 425-07-12160 | CONNECTOR | 1 | SN: 10001-19999 |
|||
| ? | 421-07-11760 | CLIP | 2 | SN: 10001-19999 |
|||
| ? | 101-04-12250 | CLIP ASS'Y | 1 | SN: 10001-19999 |
|||
| ? | 01010-51025 | BOLT | 2 | SN: 10001-19999 |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 10001-19999 |
|||
| ? | 417-963-1620 | BRACKET | 1 | SN: 10001-19999 |
|||
| ? | 01010-51020 | BOLT | 1 | SN: 10001-19999 |
|||
| ? | 01643-31032 | WASHER | 1 | SN: 10001-19999 |
|||
| ? | 417-963-1771 | BRACKET | 1 | SN: 10001-19999 |
|||
| ? | 424-09-12560 | CLIP | 1 | SN: 10001-19999 |
|||
| ? | 01010-51220 | BOLT | 1 | SN: 10001-19999 |
|||
| ? | 01643-31232 | WASHER | 1 | SN: 10001-19999 |
|||
| ? | 417-963-1570 | SHEET | 1 | SN: 10001-19999 |
|||
| ? | 417-963-1790 | PLATE | 2 | SN: 10001-19999 |
|||
| ? | 01010-50820 | BOLT | 4 | SN: 10001-19999 |
|||
| ? | 01643-30823 | WASHER | 4 | SN: 10001-19999 |
