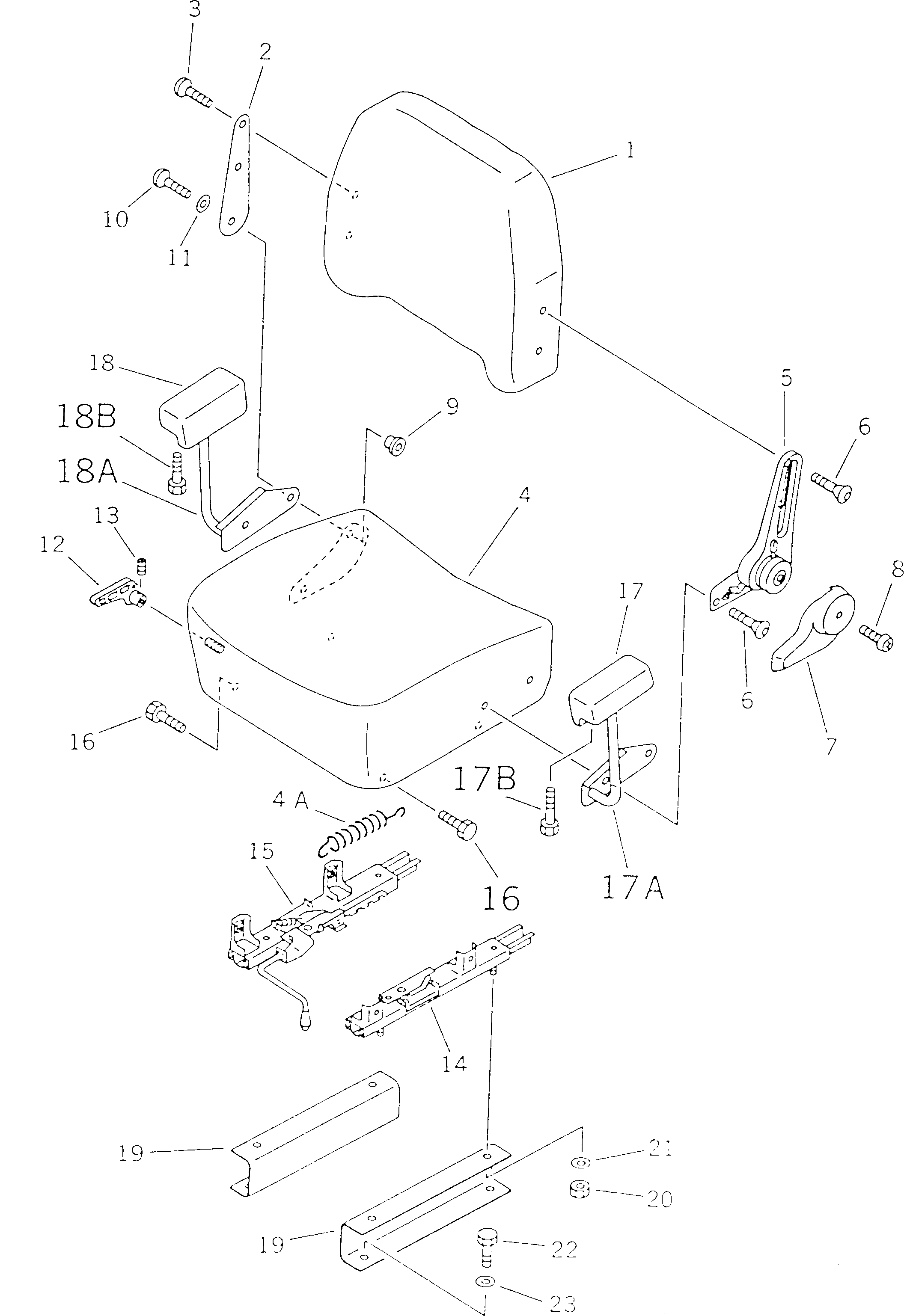

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 417-57-11211 | SEAT ASS'Y | 1 | SN: 10460- |
|||
| ? | □417-57-11210 | SEAT ASS'Y | 1 | SN: 10001-10459 |
|||
| ? | 417-57-11220 | • SEAT ASS'Y | 1 | SN: 10001- |
|||
| ? | 417-57-11250 | • • CUSHION,BACK | 1 | SN: 10001- |
|||
| ? | 423-57-11490 | • • BRACKET | 1 | SN: 10001- |
|||
| ? | 423-57-11380 | • • BOLT | 2 | SN: 10001- |
|||
| ? | 417-57-11260 | • • CUSHION,SEAT | 1 | SN: 10001- |
|||
| ? | 423-57-11330 | • • RECLINING ASS'Y | 1 | SN: 10001- |
|||
| ? | 423-57-11380 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 423-57-11371 | • • COVER | 1 | SN: 10001- |
|||
| ? | 423-57-11160 | • • SCREW | 1 | SN: 10001- |
|||
| ? | 423-57-11420 | • • BUSHING | 1 | SN: 10001- |
|||
| ? | 423-57-11430 | • • SCREW | 1 | SN: 10001- |
|||
| ? | 423-57-11440 | • • WASHER | 1 | SN: 10001- |
|||
| ? | 423-57-11360 | • • LEVER | 1 | SN: 10001- |
|||
| ? | 423-57-11410 | • • SCREW | 1 | SN: 10001- |
|||
| ? | 423-57-11350 | • • SLIDE | 1 | SN: 10001- |
|||
| ? | 417-57-11270 | • • SLIDE | 1 | SN: 10001- |
|||
| ? | 423-57-11390 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 417-57-11231 | • ARM REST ASS'Y,L.H. | 1 | SN: 10460- |
|||
| ? | □417-57-11230 | • ARM REST ASS'Y,L.H. | 1 | SN: 10001-10459 |
|||
| ? | 417-57-11310 | • • ARM,REST | 1 | SN: 10460- |
|||
| ? | 417-57-11340 | • • ARM | 1 | SN: 10460- |
|||
| ? | 417-57-11360 | • • BOLT | 2 | SN: 10460- |
|||
| ? | 417-57-11241 | • ARM REST ASS'Y,R.H. | 1 | SN: 10460- |
|||
| ? | □417-57-11240 | • ARM REST ASS'Y,R.H. | 1 | SN: 10001-10459 |
|||
| ? | 417-57-11310 | • • ARM,REST | 1 | SN: 10460- |
|||
| ? | 417-57-11350 | • • ARM | 1 | SN: 10460- |
|||
| ? | 417-57-11360 | • • BOLT | 2 | SN: 10460- |
|||
| ? | 417-57-11112 | SUPPORT | 2 | SN: 10001- |
|||
| ? | 01580-10806 | NUT | 4 | SN: 10001- |
|||
| ? | 01643-30823 | WASHER | 4 | SN: 10001- |
|||
| ? | 01010-51225 | BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 10001- |
