| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

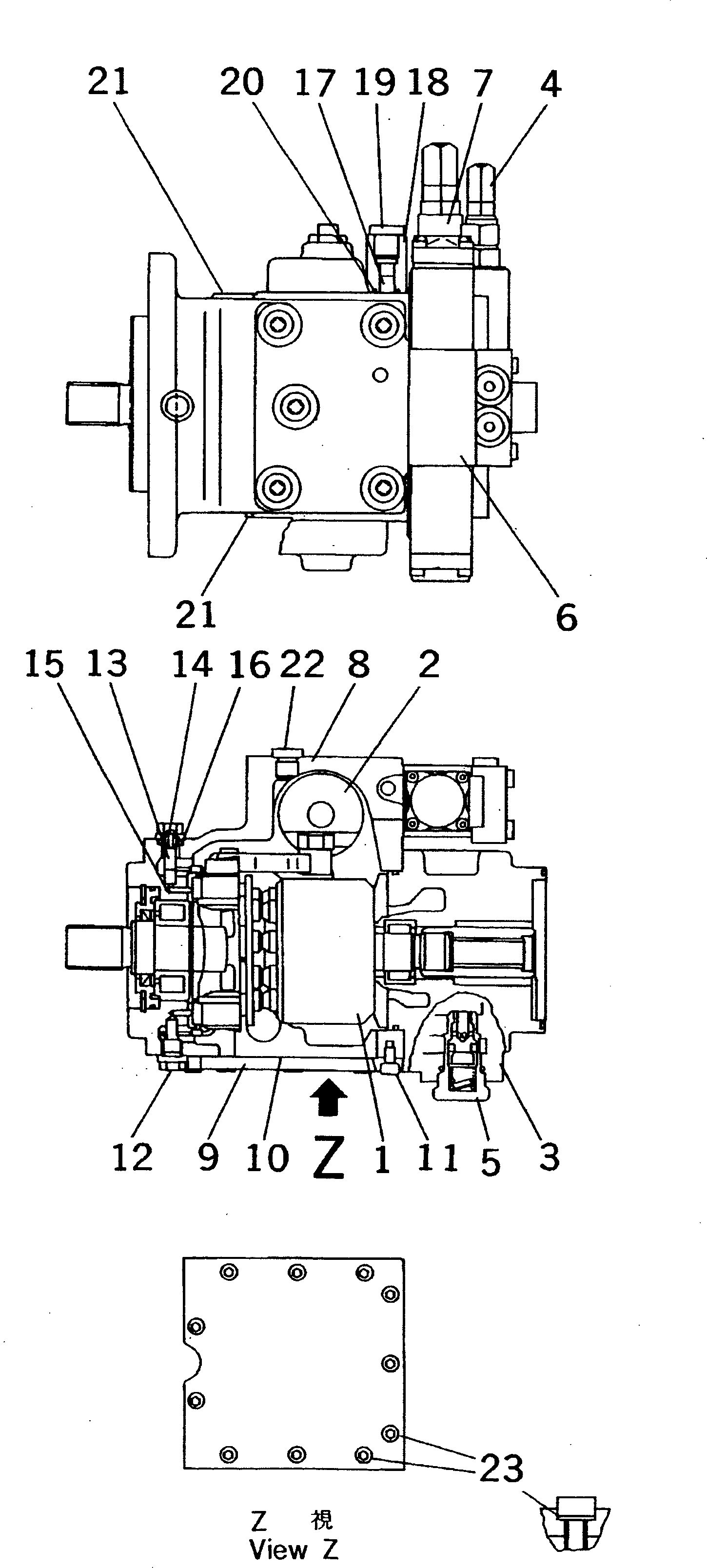

| ? | (363-17-31402) | PUMP ASS'Y,(A4VG28DA-931-0) | 1 | SN: 21212- KIT-FLAG: _- SERIALNO: 21212- |
|||
| ? | (363-17-31401) | PUMP ASS'Y,(A4VG28DA-965-1) | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-02A0A TO Y1610-06A0A . | SERIALNO: |
|||||
| ? | THE UCHIDA YUATSU KIKI PART NUMBER IS THAT UC IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | SERIALNO: |
|||||
| ? | (UCBA041S9146-0) | • PUMP ASS'Y,PISTON | 1 | SN: 21212- KIT-FLAG: _- SERIALNO: 21212- |
|||
| ? | (UCB1043R9565-0) | • PUMP ASS'Y,PISTON | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-02A0A TO Y1610-06A0. | SERIALNO: |
|||||
| ? | UC4704375889 | • • ROTARY ASS'Y | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC4704340893 | • • CYLINDER ASS'Y,LEANING | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC4100571211 | • • COVER ASS'Y | 1 | SN: 21212- KIT-FLAG: _- SERIALNO: 21212- |
|||
| ? | (★UC4100440346) | • • COVER ASS'Y | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | UC4100368143 | • • RELIEF VALVE ASS'Y,HIGH PRESSURE | 2 | SN: 21212- KIT-FLAG: _- SERIALNO: 21212- |
|||
| ? | UC4100441064 | • • RELIEF VALVE ASS'Y,HIGH PRESSURE | 2 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | UC4704336674 | • • RELIEF VALVE ASS'Y,LOW PRESSURE | 1 | SN: 21212- KIT-FLAG: _- SERIALNO: 21212- |
|||
| ? | UC4100441073 | • • RELIEF VALVE ASS'Y,LOW PRESSURE | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | UC4100448139 | • • CONTROL VALVE ASS'Y | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC4100368152 | • • DA CURTRIDGE ASS'Y | 1 | SN: 21211- KIT-FLAG: _- SERIALNO: 21211- |
|||
| ? | UC4100441091 | • • DA CURTRIDGE ASS'Y | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | UC1100355618 | • • HOUSING | 1 | SN: 21212- KIT-FLAG: _- SERIALNO: 21212- |
|||
| ? | (★UC4100376933) | • • HOUSING | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | UC1704260763 | • • COVER | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1704352779 | • • PACKING | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | 01252-30612 | • • BOLT | 11 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1100389629 | • • PLUG | 2 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1704142279 | • • PIN | 2 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1700023809 | • • SPRING | 2 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1302193049 | • • PIN,SPRING | 2 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | 02891-02009 | • • O-RING | 2 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1100362276 | • • PIN | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1100357779 | • • NUT | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1701516926 | • • PLUG | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1301177009 | • • O-RING | 1 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
|||
| ? | UC1100350071 | • • PLUG | 2 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | 418-62-11620 | • • • O-RING | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | UC1607054546 | • • PLUG | 5 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | 416-62-11480 | • • • O-RING | 1 | SN: 20642-21211 KIT-FLAG: _- SERIALNO: 20642-21211 |
|||
| ? | UC1700843025 | • • SEAL | 2 | SN: 20642- KIT-FLAG: _- SERIALNO: 20642- |
