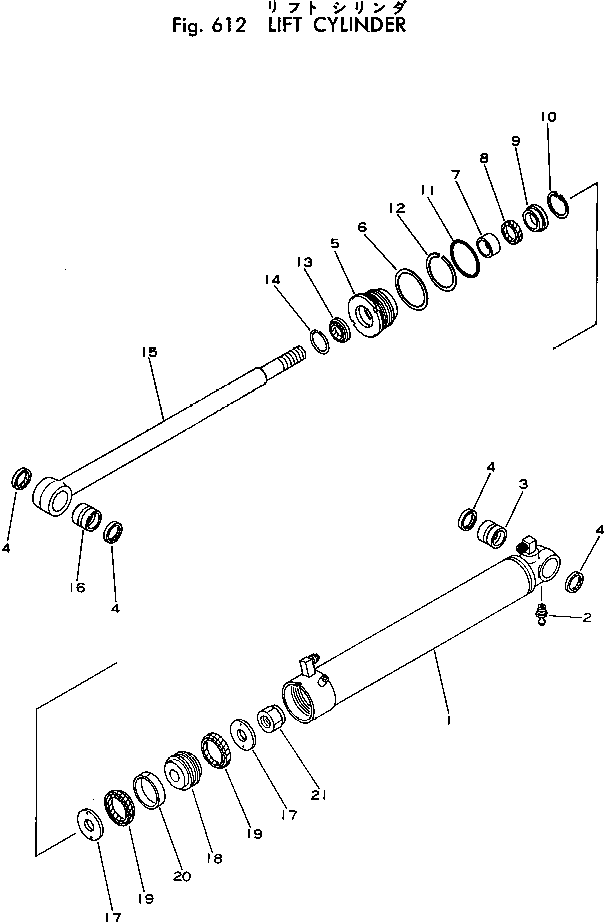

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 707-00-80121 | CYLINDER ASS'Y | 1 | SN: 1349- |
|||
| ? | □707-00-80120 | CYLINDER ASS'Y | 1 | SN: 1001-1348 |
|||
| ? | 707-11-80041 | • CYLINDER | 1 | SN: 1349- |
|||
| ? | □707-11-80040 | • CYLINDER | 1 | SN: 1001-1348 |
|||
| ? | 07020-00000 | • FITTING,GREASE | 1 | SN: 1001- |
|||
| ? | 07144-10404 | • BUSHING | 1 | SN: 1001- |
|||
| ? | 07145-00040 | • SEAL,DUST | 4 | SN: 1001- |
|||
| ? | 707-29-80011 | • HEAD,CYLINDER | 1 | SN: 1001- |
|||
| ? | 707-45-80011 | • WASHER,LOCK | 1 | SN: 1001- |
|||
| ? | 07177-04025 | • BUSHING | 1 | SN: 1001- |
|||
| ? | 707-51-40110 | • PACKING,ROD | 1 | SN: 1349- |
|||
| ? | □236-63-11173 | • PACKING,ROD | 1 | SN: 1001-1348 |
|||
| ? | 707-57-40010 | • RETAINER | 1 | SN: 1001- |
|||
| ? | 04065-06020 | • RING,SNAP | 1 | SN: 1001- |
|||
| ? | 07000-12085 | • O-RING | 1 | SN: 1001- |
|||
| ? | 07001-02085 | • RING,BACK-UP | 1 | SN: 1001- |
|||
| ? | 198-63-75190 | • SEAL,DUST | 1 | SN: 1349- |
|||
| ? | □07016-00407 | • SEAL,DUST | 1 | SN: 1001-1348 |
|||
| ? | 07179-00059 | • RING,SNAP | 1 | SN: 1001- |
|||
| ? | 707-58-40030 | • ROD,PISTON | 1 | SN: 1001- |
|||
| ? | 07143-10404 | • BUSHING | 1 | SN: 1001- |
|||
| ? | 111-63-99330 | • RETAINER | 2 | SN: 1001- |
|||
| ? | 10E-63-56170 | • PISTON | 1 | SN: 1001- |
|||
| ? | 20R-63-56280 | • U-PACKING,PISTON | 2 | SN: 1001- |
|||
| ? | 07155-00820 | • RING,WEAR | 1 | SN: 1001- |
|||
| ? | 07165-13033 | • NUT,NYLON | 1 | SN: 1001- |
