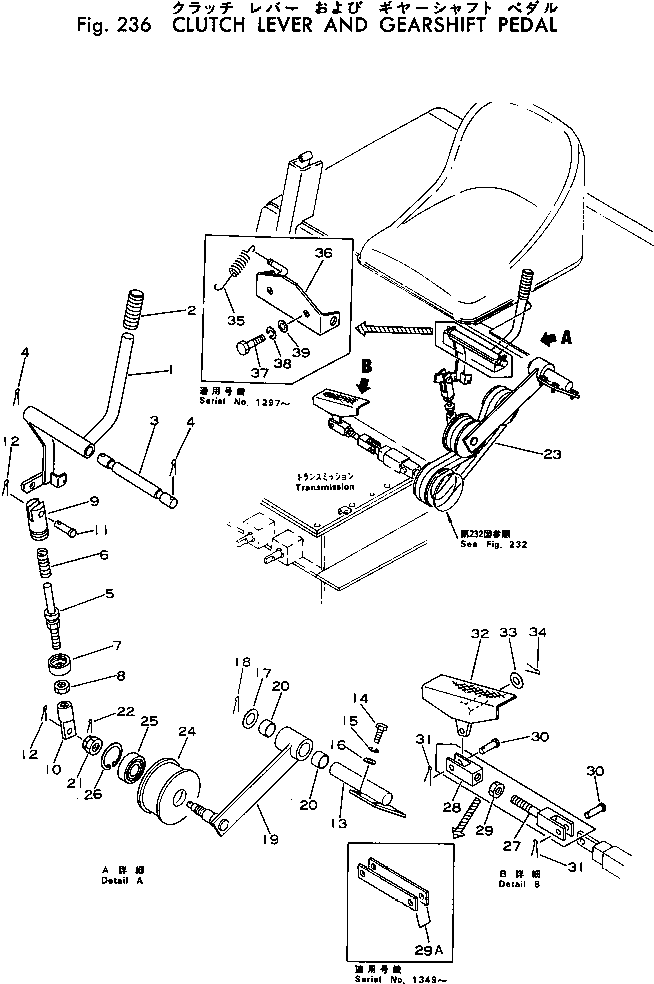

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | FF7820-44110 | LEVER | 1 | SN: 1001- |
|||
| ? | FF7820-40180 | RUBBER | 1 | SN: 1001- |
|||
| ? | FF7820-44120 | PIN | 1 | SN: 1001- |
|||
| ? | 04050-14025 | PIN,COTTER | 2 | SN: 1001- |
|||
| ? | FF7820-44331 | ROD | 1 | SN: 1001- |
|||
| ? | (☒FF7820-44330) | ROD | 1 | SN: (1001-.) |
|||
| ? | FF7820-44341 | SPRING | 1 | SN: 1001- |
|||
| ? | (☒FF7820-44340) | SPRING | 1 | SN: (1001-.) |
|||
| ? | FF7820-44320 | CAP | 1 | SN: 1001- |
|||
| ? | 01583-11006 | NUT | 1 | SN: 1001- |
|||
| ? | FF7820-44310 | YOKE | 1 | SN: 1001- |
|||
| ? | FF7820-44370 | JOINT | 1 | SN: 1001- |
|||
| ? | (☒04216-21045) | JOINT | 1 | SN: (1001-.) |
|||
| ? | 04205-11035 | PIN | 1 | SN: 1001- |
|||
| ? | 04050-13018 | PIN,COTTER | 2 | SN: 1001- |
|||
| ? | FF7820-44141 | BRACKET | 1 | SN: 1349- |
|||
| ? | FF7820-44140 | BRACKET | 1 | SN: 1001-1348 |
|||
| ? | 01010-50820 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 01640-20816 | WASHER | 4 | SN: 1001- |
|||
| ? | 01643-32260 | WASHER | 1 | SN: 1001- |
|||
| ? | 04050-15030 | PIN,COTTER | 1 | SN: 1001- |
|||
| ? | FF7820-44180 | LEVER ASS'Y | 1 | SN: 1001- |
|||
| ? | ☆ | • LEVER | 1 | SN: 1001- |
|||
| ? | WB8710-42120 | • BUSHING | 2 | SN: 1001- |
|||
| ? | FF7820-44360 | NUT | 1 | SN: 1001- |
|||
| ? | 04050-14025 | PIN,COTTER | 1 | SN: 1001- |
|||
| ? | FF7820-44350 | V-BELT | 1 | SN: 1001- |
|||
| ? | FF7820-44170 | PULLEY | 1 | SN: 1001- |
|||
| ? | 06004-06003 | BEARING | 2 | SN: 1001- |
|||
| ? | 04065-03515 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 04244-41006 | ROD | 1 | SN: 1001-1348 |
|||
| ? | 04211-21055 | YOKE | 1 | SN: 1001-1348 |
|||
| ? | 01583-11006 | NUT | 1 | SN: 1001-1348 |
|||
| ? | FF7820-44220 | PLATE | 2 | SN: 1349- |
|||
| ? | 04205-11028 | PIN | 2 | SN: 1001- |
|||
| ? | 04050-13015 | PIN,COTTER | 2 | SN: 1001- |
|||
| ? | FF7820-44210 | PEDAL | 1 | SN: 1001- |
|||
| ? | 01643-31645 | WASHER | 1 | SN: 1001- |
|||
| ? | 04050-14028 | PIN,COTTER | 1 | SN: 1001- |
|||
| ? | FF7820-44190 | SPRING | 1 | SN: 1297- |
|||
| ? | FF7820-44380 | BRACKET | 1 | SN: 1297- |
|||
| ? | 01010-51025 | BOLT | 2 | SN: 1297- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1297- |
|||
| ? | 01602-21030 | WASHER,SPRING | 2 | SN: 1297- |
