| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

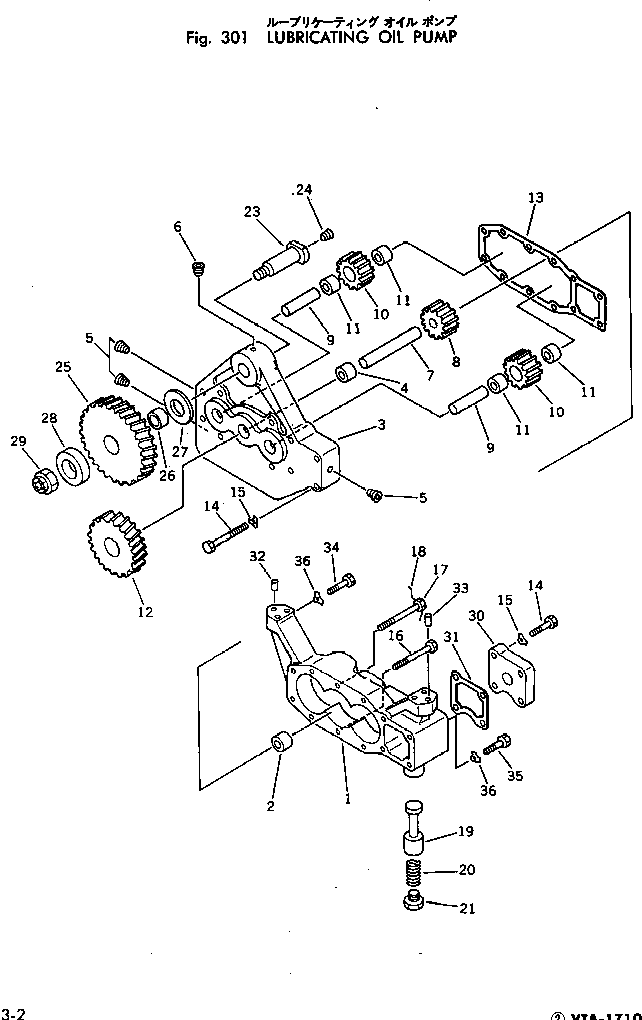

| ? | CUAR-11330 | OIL PUMP ASS'Y | 1 | SN: 430077- |
|||
| ? | CUAR-11322 | • BODY ASS'Y | 1 | SN: 430077- |
|||
| ? | ☆ | • • BODY | 1 | SN: 430077- |
|||
| ? | CU69521 | • • BUSHING | 1 | SN: 430077- |
|||
| ? | CUBM-98314 | • COVER ASS'Y | 1 | SN: 430077- |
|||
| ? | CU180758 | • • COVER | 1 | SN: 430077- |
|||
| ? | CU69514 | • • BUSHING | 2 | SN: 430077- |
|||
| ? | CU67622 | • PLUG | 3 | SN: 430077- |
|||
| ? | 02720-20104 | • PLUG | 1 | SN: 430077- |
|||
| ? | CU204193 | • SHAFT | 1 | SN: 430077- |
|||
| ? | CU131275 | • GEAR | 1 | SN: 430077- |
|||
| ? | CU180761 | • SHAFT | 2 | SN: 430077- |
|||
| ? | CUAR-11878 | • DRIVEN GEAR ASS'Y | 2 | SN: 430077- |
|||
| ? | ☆ | • • GEAR | 1 | SN: 430077- |
|||
| ? | CU69514 | • • BUSHING | 2 | SN: 430077- |
|||
| ? | CU146919 | • GEAR | 1 | SN: 430077- |
|||
| ? | CU180760 | • GASKET | 1 | SN: 430077- |
|||
| ? | 02010-20651 | • BOLT | 14 | SN: 430077- |
|||
| ? | CU68908 | • PLATE | 14 | SN: 430077- |
|||
| ? | 02010-20664 | • BOLT | 1 | SN: 430077- |
|||
| ? | CUS-197 | • BOLT | 1 | SN: 430077- |
|||
| ? | CU130148 | • WIRE | 2 | SN: 430077- |
|||
| ? | CU199843 | • PLUNGER | 1 | SN: 430077- |
|||
| ? | CU218206 | • SPRING | 1 | SN: 430077- |
|||
| ? | CU217151 | • CAP | 1 | SN: 430077- |
|||
| ? | CU180766 | • SHAFT | 1 | SN: 430077-550573 |
|||
| ? | CU3004056 | • SHAFT | 1 | SN: 550574- |
|||
| ? | 02720-20104 | • PLUG | 1 | SN: 430077- |
|||
| ? | CUBM-77618 | • IDLER GEAR ASS'Y | 1 | SN: 430077- |
|||
| ? | CU146920 | • • GEAR | 1 | SN: 430077- |
|||
| ? | CU116130 | • • BUSHING | 1 | SN: 430077- |
|||
| ? | CU69508 | • WASHER | 1 | SN: 430077- |
|||
| ? | CU180767 | • WASHER | 1 | SN: 430077- |
|||
| ? | CU113051 | • NUT | 1 | SN: 430077-550573 |
|||
| ? | CU3004057 | • NUT | 1 | SN: 550574- |
|||
| ? | CU204264 | • CONNECTION | 1 | SN: 430077- |
|||
| ? | CU204253 | • GASKET | 1 | SN: 430077- |
|||
| ? | CU70760 | • PIN | 1 | SN: 430077- |
|||
| ? | CU107948 | • PIN | 1 | SN: 430077- |
|||
| ? | 02010-20638 | • BOLT | 2 | SN: 430077- |
|||
| ? | CU199919 | • BOLT | 2 | SN: 430077-550573 |
|||
| ? | 02010-20632 | • BOLT | 2 | SN: 550574- |
|||
| ? | CU109003 | • PLATE | 4 | SN: 430077- |
