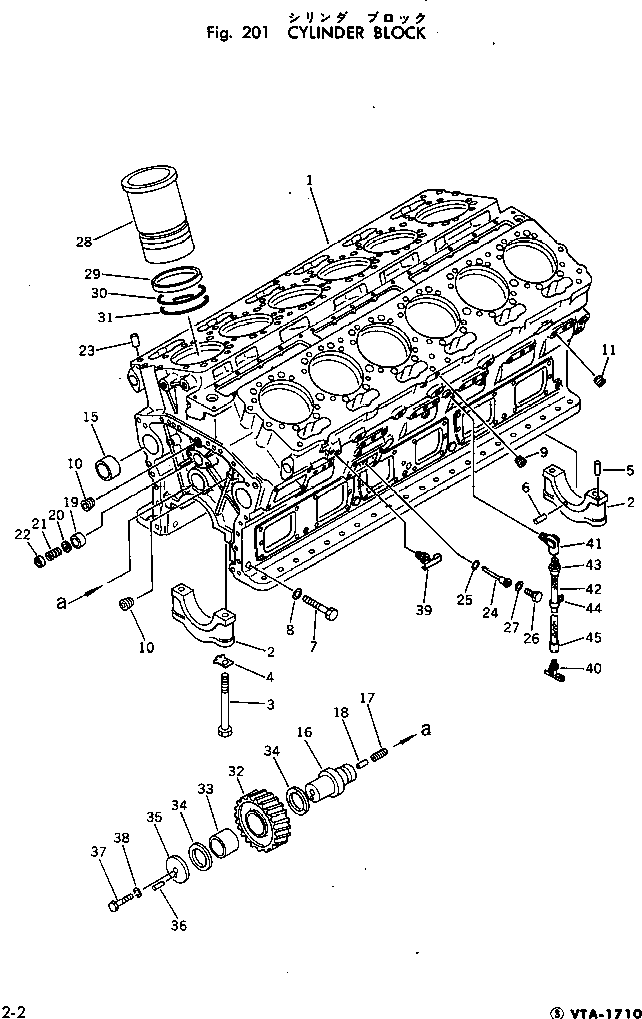

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | CUAR-4215 | CYLINDER BLOCK A. | 1 | SN: 430077-467000 |
|||
| ? | CUAR-45641 | CYLINDER BLOCK A. | 1 | SN: 467001-747368 |
|||
| ? | CU3014889 | CYLINDER BLOCK A. | 1 | SN: 747369-767390 |
|||
| ? | CU3021534 | CYLINDER BLOCK A. | 1 | SN: 767391- |
|||
| ? | ☆ | • BLOCK | 1 | SN: 430077-467000 |
|||
| ? | ☆ | • BLOCK | 1 | SN: 467001-767390 |
|||
| ? | ☆ | • BLOCK | 1 | SN: 767391- |
|||
| ? | \5\CU180157 | • CAP,N0.1 | 1 | SN: 430077- |
|||
| ? | \5\CU180158 | • CAP,N0.4 | 1 | SN: 430077- |
|||
| ? | \5\CU180159 | • CAP,N0.7 | 1 | SN: 430077- |
|||
| ? | \5\CU180170 | • CAP,N0.2 ?3 ?5 ?6 | 4 | SN: 430077- |
|||
| ? | CU181210 | • BOLT | 8 | SN: 430077- |
|||
| ? | CU181211 | • BOLT | 6 | SN: 430077- |
|||
| ? | CU168638 | • PLATE | 14 | SN: 430077- |
|||
| ? | CU202903 | • PIN | 2 | SN: .- |
|||
| ? | □6610-21-1270 | • PIN | 2 | SN: 430077-. |
|||
| ? | 6610-21-1280 | • PIN | 2 | SN: 430077- |
|||
| ? | CUS-123-B | • BOLT | 14 | SN: 430077- |
|||
| ? | CU127316 | • WASHER | 14 | SN: 430077- |
|||
| ? | CUS-658 | • WASHER | 2 | SN: 430077- |
|||
| ? | 6610-21-2720 | • PLUG | 14 | SN: 430077- |
|||
| ? | CU3008469 | • PLUG | 4 | SN: .- |
|||
| ? | □02720-21214 | • PLUG | 4 | SN: 430077-. |
|||
| ? | 02720-20204 | • PLUG | 19 | SN: 430077- |
|||
| ? | CU3008466 | • PLUG | 4 | SN: .- |
|||
| ? | □02720-20406 | • PLUG | 4 | SN: 430077-. |
|||
| ? | CU3008468 | • PLUG | 2 | SN: .- |
|||
| ? | □02720-20810 | • PLUG | 2 | SN: 430077-. |
|||
| ? | CU3013786 | • PLUG | 6 | SN: .- |
|||
| ? | □CU67622 | • PLUG | 6 | SN: 430077-. |
|||
| ? | CU70437 | • BUSHING | 28 | SN: 430077- |
|||
| ? | CU121780 | • SHAFT | 1 | SN: 430077-. |
|||
| ? | CU3023128 | • SHAFT | 1 | SN: .- |
|||
| ? | CUS-1536 | • SCREW | 1 | SN: 430077- |
|||
| ? | CUS-1533 | • SCREW | 1 | SN: 430077- |
|||
| ? | CUAR-4242 | • VALVE ASS'Y | 1 | SN: 430077-747368 |
|||
| ? | CU3017754 | • VALVE ASS'Y | 1 | SN: 747369- |
|||
| ? | CU196077 | • • HOUSING | 1 | SN: 430077- |
|||
| ? | CU200819 | • • DISC | 1 | SN: 430077- |
|||
| ? | CU251152 | • • SPRING | 1 | SN: 430077-747368 |
|||
| ? | CU3017751 | • • SPRING | 1 | SN: 747369- |
|||
| ? | CU175830 | • PLUG | 1 | SN: 430077- |
|||
| ? | CU102978 | • PIN | 8 | SN: 430077- |
|||
| ? | CUBM-98572 | NOZZLE ASS'Y | 12 | SN: 430077- |
|||
| ? | CU180776 | • NOZZLE | 1 | SN: 430077-. |
|||
| ? | CU3016644 | • NOZZLE | 1 | SN: .- |
|||
| ? | CU3007441 | • O-RING | 1 | SN: 550574- |
|||
| ? | □6685-21-6820 | • O-RING | 1 | SN: 430077-550573 |
|||
| ? | CUS-911-B | • PLUG | 1 | SN: 430077- |
|||
| ? | CU152364 | • BOLT | 1 | SN: 430077- |
|||
| ? | 01602-00825 | WASHER | 1 | SN: 430077- |
|||
| ? | CUAR-9311 | LINER ASS'Y | 12 | SN: 430077- |
|||
| ? | CU210130 | • LINER | 1 | SN: 430077- |
|||
| ? | CU215090 | • SEAL | 1 | SN: 430077- |
|||
| ? | CU215091 | • RING | 1 | SN: 430077- |
|||
| ? | CU183049 | • O-RING | 1 | SN: 430077- |
|||
| ? | CUBM-66766 | IDLER GEAR ASS'Y | 1 | SN: 430077- |
|||
| ? | CU121769 | • GEAR | 1 | SN: 430077- |
|||
| ? | CU121790 | • BUSHING | 1 | SN: 430077- |
|||
| ? | CU9235-1 | WASHER | 2 | SN: 430077- |
|||
| ? | CU121768 | PLATE | 1 | SN: 430077- |
|||
| ? | CU9732 | PIN | 1 | SN: 430077- |
|||
| ? | CUS-112-A | BOLT | 1 | SN: 430077- |
|||
| ? | 01602-01338 | WASHER | 1 | SN: 430077- |
|||
| ? | CUS-923-E | VALVE | 4 | SN: 430077- |
|||
| ? | CU176307 | VALVE | 1 | SN: 430077- |
|||
| ? | CU185347 | ELBOW | 1 | SN: 430077- |
|||
| ? | CU3000484 | HOSE | 1 | SN: 430077- |
|||
| ? | CU148376 | ADAPTER | 1 | SN: 430077- |
|||
| ? | CU180372 | CLIP | 1 | SN: 430077- |
|||
| ? | CUS-935 | COUPLING | 1 | SN: 430077- |
|||
| ? | 6610-81-8820 | ELBOW,(NOT SHOWN) | 1 | SN: 430077- |
