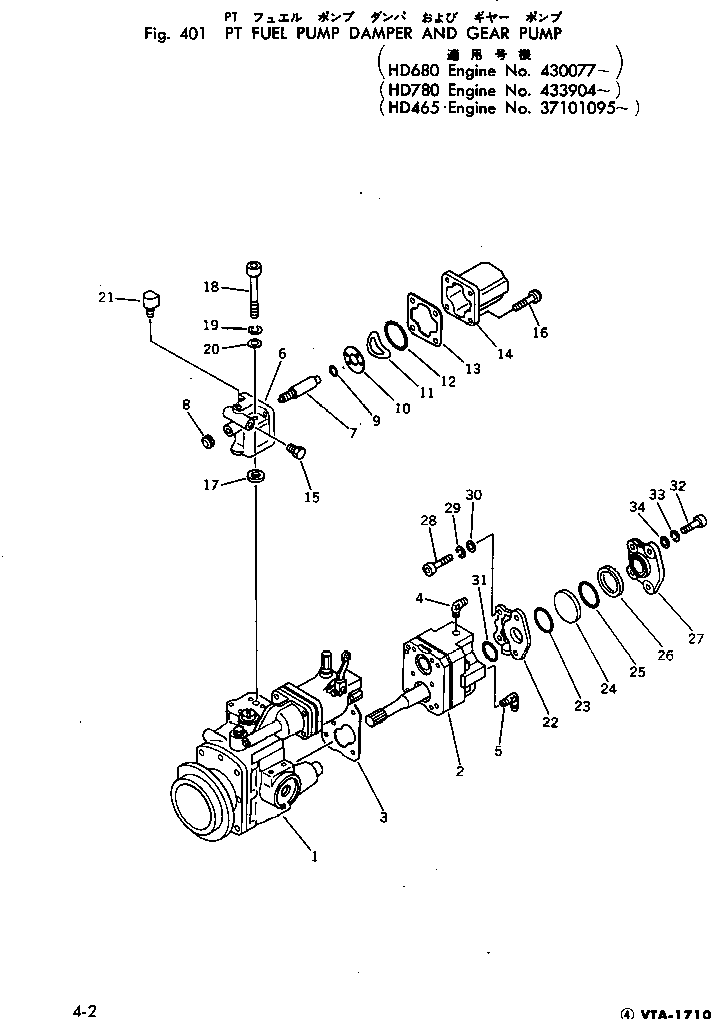

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | CU3006036 | PT PUMP ASS'Y,(CODE NO.2799) | 1 | SN: 430077-. |
|||
| ? | CU3028809 | PT PUMP ASS'Y,(CODE NO.V009) | 1 | SN: .- |
|||
| ? | CU3024550 | • GEAR PUMP ASS'Y | 1 | SN: 535024- |
|||
| ? | CU210647 | • GASKET | 1 | SN: 430077- |
|||
| ? | 6610-71-8190 | • ELBOW | 1 | SN: 430077- |
|||
| ? | CU203848 | • ELBOW | 1 | SN: 430077- |
|||
| ? | CU3017993 | SHUT-OFF VALVE | 1 | SN: 430077- |
|||
| ? | CU3014010 | • HOUSING | 1 | SN: 430077- |
|||
| ? | CU3013036 | • SHAFT | 1 | SN: 430077- |
|||
| ? | CU3013645 | • KNOB | 1 | SN: 430077- |
|||
| ? | CU190876 | • O-RING | 1 | SN: 430077- |
|||
| ? | CU129827 | • DISC | 1 | SN: 430077- |
|||
| ? | CU129768 | • SPRING | 1 | SN: 430077- |
|||
| ? | CU129888 | • O-RING | 1 | SN: 430077- |
|||
| ? | CU129839 | • SHIELD | 1 | SN: 430077- |
|||
| ? | CU3026501 | • ACTUATOR | 1 | SN: 430077- |
|||
| ? | 6610-71-1850 | • PLUG | 1 | SN: 430077- |
|||
| ? | CU187556 | • BOLT | 4 | SN: 430077- |
|||
| ? | 6610-71-3520 | O-RING | 1 | SN: 430077- |
|||
| ? | 02100-00445 | BOLT | 2 | SN: 430077- |
|||
| ? | 6610-71-1230 | WASHER | 2 | SN: 430077- |
|||
| ? | 6610-71-1840 | WASHER | 2 | SN: 430077- |
|||
| ? | 6610-71-4412 | CONNECTOR | 1 | SN: 430077- |
|||
| ? | CUBM-76340 | DAMPER ASS'Y | 1 | SN: 430077- |
|||
| ? | CU153336 | • BODY | 1 | SN: 430077- |
|||
| ? | CU100099 | • O-RING | 1 | SN: 430077- |
|||
| ? | CU202897 | • DIAPHRAGM | 1 | SN: 430077- |
|||
| ? | CU139988 | • O-RING | 1 | SN: 430077- |
|||
| ? | CU160514 | • WASHER | 1 | SN: 430077- |
|||
| ? | CU153338 | • COVER | 1 | SN: 430077- |
|||
| ? | 02100-00432 | • BOLT | 2 | SN: 430077- |
|||
| ? | CU181466 | • WASHER | 2 | SN: 430077- |
|||
| ? | CU70704 | • WASHER | 2 | SN: 430077- |
|||
| ? | CU151900 | SEAL | 1 | SN: 430077- |
|||
| ? | CU153346 | BOLT | 2 | SN: 430077- |
|||
| ? | CU181466 | WASHER | 2 | SN: 430077- |
|||
| ? | CU70704 | WASHER | 2 | SN: 430077- |
