| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 363-876-3131 | VALVE ASS'Y | 1 | SN: 26001- |
|||

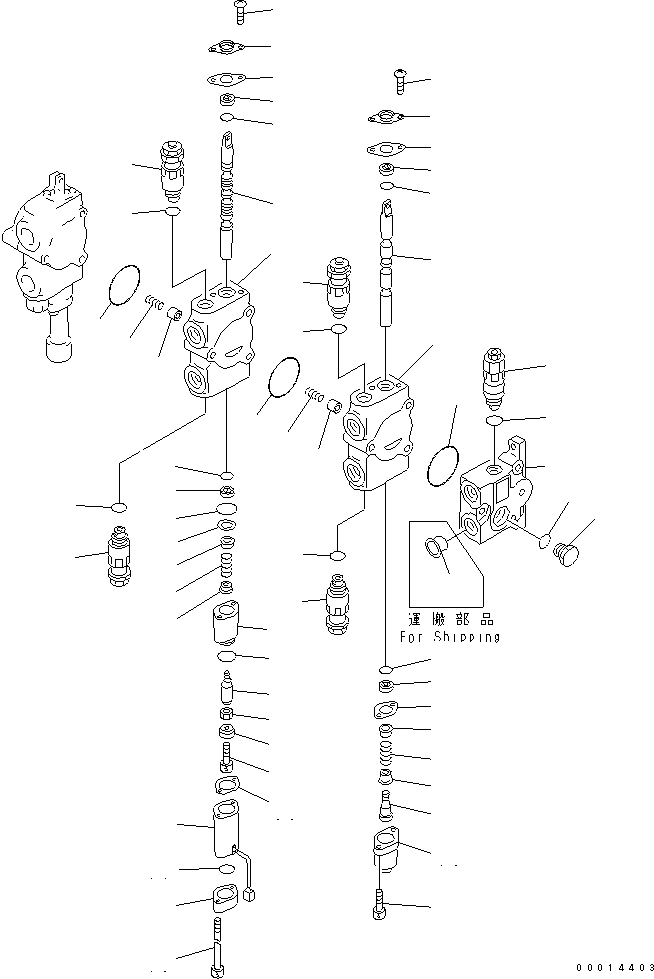

| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1682-01A0 AND Y1682-02A0. | ||||||
| ? | THE KAYABA KOGYO PART NUMBER IS THAT KB IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||||
| ? | 363-43-38470 | • PLATE | 2 | SN: 26001- |
|||
| ? | 42A-64-13160 | • INLET SECTION ASS'Y | 1 | SN: 26001- |
|||
| ? | KB21011-30336 | • • HOUSING,INLET | 1 | SN: 26001- |
|||
| ? | KB21001-00106 | • • O-RING | 1 | SN: 26001- |
|||
| ? | 363-876-3120 | • SPOOL SECTION ASS'Y | 1 | SN: 26001- |
|||
| ? | ☆ | • • HOUSING | 1 | SN: 26001- |
|||
| ? | KB21011-32404 | • • POPPET | 1 | SN: 26001- |
|||
| ? | KB21011-30604 | • • SPRING | 1 | SN: 26001- |
|||
| ? | KB21001-00106 | • • O-RING | 1 | SN: 26001- |
|||
| ? | ☆ | • • SPOOL | 1 | SN: 26001- |
|||
| ? | KB21001-00689 | • • O-RING | 2 | SN: 26001- |
|||
| ? | KB21011-32801 | • • WIPER | 2 | SN: 26001- |
|||
| ? | KB21011-31702 | • • PLATE | 2 | SN: 26001- |
|||
| ? | KB91111-60102 | • • SCREW | 2 | SN: 26001- |
|||
| ? | KB21011-30702 | • • SEAT,SPRING | 2 | SN: 26001- |
|||
| ? | KB21011-30612 | • • SPRING | 1 | SN: 26001- |
|||
| ? | KB21011-30507 | • • SCREW,CAP | 1 | SN: 26001- |
|||
| ? | KB21011-31011 | • • CAP | 1 | SN: 26001- |
|||
| ? | KB92703-06181 | • • BOLT,HEAD | 2 | SN: 26001- |
|||
| ? | 363-64-33220 | • SPOOL SECTION ASS'Y | 1 | SN: 26001- |
|||
| ? | ☆ | • • HOUSING | 1 | SN: 26001- |
|||
| ? | KB21011-32404 | • • POPPET | 1 | SN: 26001- |
|||
| ? | KB21011-30604 | • • SPRING | 1 | SN: 26001- |
|||
| ? | KB21001-00106 | • • O-RING | 1 | SN: 26001- |
|||
| ? | ☆ | • • SPOOL | 1 | SN: 26001- |
|||
| ? | KB21001-00689 | • • O-RING | 1 | SN: 26001- |
|||
| ? | KB21011-32801 | • • WIPER | 1 | SN: 26001- |
|||
| ? | KB21011-31702 | • • PLATE | 1 | SN: 26001- |
|||
| ? | KB91111-60102 | • • SCREW | 2 | SN: 26001- |
|||
| ? | KB21011-31856 | • • SLEEVE | 1 | SN: 26001- |
|||
| ? | KB21001-00689 | • • O-RING | 1 | SN: 26001- |
|||
| ? | KB95151-02800 | • • O-RING | 1 | SN: 26001- |
|||
| ? | KB21011-30702 | • • SEAT,SPRING | 2 | SN: 26001- |
|||
| ? | KB21011-30630 | • • SPRING | 1 | SN: 26001- |
|||
| ? | KB21011-32801 | • • WIPER | 1 | SN: 26001- |
|||
| ? | KB21011-31707 | • • PLATE | 1 | SN: 26001- |
|||
| ? | KB21011-30565 | • • PIN | 1 | SN: 26001- |
|||
| ? | KB93317-05322 | • • NUT | 1 | SN: 26001- |
|||
| ? | KB21011-33453 | • • PLATE | 1 | SN: 26001- |
|||
| ? | KB21001-01456 | • • BOLT,HEAD | 1 | SN: 26001- |
|||
| ? | KB95111-02550 | • • O-RING | 1 | SN: 26001- |
|||
| ? | KB21001-01458 | • • SHIM | A/R | SN: 26001- |
|||
| ? | KB25113-30127 | • • TUBE,COIL | 1 | SN: 26001- |
|||
| ? | KB95111-02550 | • • O-RING | 1 | SN: 26001- |
|||
| ? | KB21011-31095 | • • CAP | 1 | SN: 26001- |
|||
| ? | KB21001-01457 | • • BOLT,HEAD | 2 | SN: 26001- |
|||
| ? | 42A-64-13270 | • PLUG | 1 | SN: 26001- |
|||
| ? | 42A-64-13280 | • O-RING | 1 | SN: 26001- |
|||
| ? | 42A-64-13220 | • RELIEF VALVE ASS'Y,MAIN | 1 | SN: 26001- |
|||
| ? | KB21001-00036 | • • O-RING | 1 | SN: 26001- |
|||
| ? | 42A-64-13230 | • RELIEF VALVE ASS'Y,OVERLOAD | 4 | SN: 26001- |
|||
| ? | KB21001-00036 | • • O-RING | 1 | SN: 26001- |
|||
| ? | 42A-64-13250 | • PLUG,(FOR SHIPPING) | 6 | SN: 26001- |
