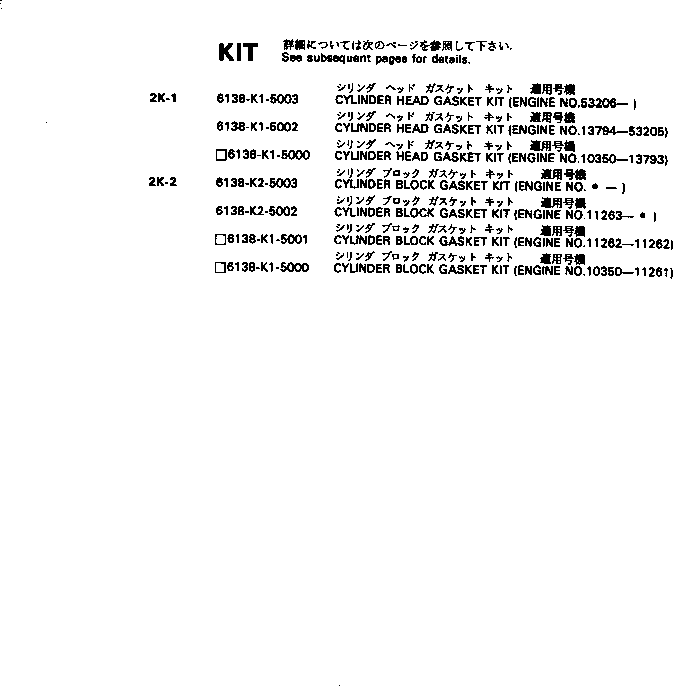

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6138-K1-5003 | GASKET KIT,CYLINDER HEAD | 1 | SN: 53206- |
|||
| ? | 6138-K1-5002 | GASKET KIT,CYLINDER HEAD | 1 | SN: 13794-53205 |
|||
| ? | □6138-K1-5000 | GASKET KIT,CYLINDER HEAD | 1 | SN: 10350-13793 |
|||
| ? | 6138-19-1810 | • GASKET,CYLINDER HEAD | 1 | SN: 10350- |
|||
| ? | (☒6138-11-1812) | • GASKET,CYLINDER HEAD | 1 | SN: (10350-13793) |
|||
| ? | 6136-11-1821 | • GASKET,HANGER | 1 | SN: 10350- |
|||
| ? | 600-181-6510 | • SEAL,BREATHER COVER | 1 | SN: 10350-53205 |
|||
| ? | 6136-11-8814 | • O-RING,HEAD COVER | 1 | SN: 53206- |
|||
| ? | 6136-11-8812 | • O-RING,HEAD COVER | 1 | SN: 10350-53205 |
|||
| ? | 6136-11-8142 | • PACKING,HEAD COVER NUT | 4 | SN: 10350- |
|||
| ? | 6114-21-5190 | • O-RING,BREATHER | 1 | SN: 53206- |
|||
| ? | 6162-63-6240 | • O-RING,AFTER COOLER | 4 | SN: 10350- |
|||
| ? | 6138-11-4620 | • GASKET,AFTER COOLER COVER | 2 | SN: 10350- |
|||
| ? | 6138-11-4810 | • GASKET,INTAKE MANIFOLD | 2 | SN: 10350- |
|||
| ? | 6138-11-4820 | • GASKET,CROSS OVER | 1 | SN: 10350- |
|||
| ? | 6128-61-6830 | • GASKET,AFTER COOLER | 2 | SN: 10350- |
|||
| ? | 6138-61-6461 | • GASKET,WATER PIPE | 1 | SN: 10350- |
|||
| ? | 07000-02021 | • O-RING,WATER PIPE | 1 | SN: 10350- |
|||
| ? | 6138-61-6451 | • GASKET,WATER PIPE | 1 | SN: 10350- |
|||
| ? | 6136-11-4840 | • GASKET,AIR CLEANER | 1 | SN: 53206- |
|||
| ? | □6631-11-4381 | • GASKET,AIR CLEANER | 1 | SN: 10350-53205 |
|||
| ? | 07000-63028 | • O-RING,OIL FILTER MOUNTING | 2 | SN: 13794-53205 |
|||
| ? | 6136-11-5810 | • GASKET,EXHAUST MANIFOLD | 3 | SN: 10350- |
|||
| ? | 6131-11-5170 | • GASKET,TURBOCHARGER | 1 | SN: 10350- |
|||
| ? | 07000-62018 | • O-RING,TURBOCHARGER OIL PIPE | 1 | SN: 10350- |
|||
| ? | 6131-51-7681 | • GASKET,TURBOCHARGER OIL PIPE | 1 | SN: 10350- |
|||
| ? | 07005-00812 | • GASKET,FUEL NOZZLE | 12 | SN: 10350- |
|||
| ? | 6136-11-3131 | • PACKING,FUEL NOZZLE | 6 | SN: 53206- |
|||
| ? | 07005-01612 | • GASKET,THERMOSTAT HOUSING PLUG | 1 | SN: 53206- |
|||
| ? | 6138-11-6810 | • GASKET,THERMOSTAT | 1 | SN: 10350- |
|||
| ? | 6136-11-1821 | • GASKET,THERMOSTAT HOUSING | 1 | SN: 10350- |
|||
| ? | 08034-00414 | • BAND,HOSE AND WIRING | 3 | SN: 53026- |
|||
| ? | 08034-00519 | • BAND,HOSE AND WIRING | 3 | SN: 53026- |
|||
| ? | 07005-00812 | • GASKET,(NOT SHOWN) | 3 | SN: 53026- |
|||
| ? | 07005-01612 | • GASKET,(NOT SHOWN) | 4 | SN: 53026- |
|||
| ? | 6138-K2-5003 | GASKET KIT,CYLINDER BLOCK | 1 | SN: .- |
|||
| ? | 6138-K2-5002 | GASKET KIT,CYLINDER BLOCK | 1 | SN: 11263-. |
|||
| ? | □6138-K2-5001 | GASKET KIT,CYLINDER BLOCK | 1 | SN: 11262-11262 |
|||
| ? | □6138-K2-5000 | GASKET KIT,CYLINDER BLOCK | 1 | SN: 10350-11261 |
|||
| ? | 07005-01212 | • GASKET,CYLINDER BLOCK PLUG | 1 | SN: 10350- |
|||
| ? | 6138-21-7321 | • GASKET,COVER | 1 | SN: 10350-. |
|||
| ? | 6136-21-7811 | • GASKET,CYLINDER BLOCK COVER | 1 | SN: 11262- |
|||
| ? | □6136-21-7810 | • GASKET,CYLINDER BLOCK COVER | 1 | SN: 10350-11261 |
|||
| ? | 07003-02733 | • GASKET,REGULATOR | 1 | SN: 10350-. |
|||
| ? | 07000-62018 | • O-RING,REGULATOR | 1 | SN: 10350-. |
|||
| ? | 6136-21-3821 | • GASKET,FRONT PLATE | 1 | SN: 10350- |
|||
| ? | 6136-21-3812 | • GASKET,FRONT COVER | 1 | SN: 10350- |
|||
| ? | 6136-21-3510 | • SEAL¤ FRONT | 1 | SN: 10350- |
|||
| ? | 6150-71-1910 | • SEAL,OIL | 1 | SN: 10350- |
|||
| ? | 07000-02070 | • O-RING,BEARING COVER | 1 | SN: 10350- |
|||
| ? | 07005-01612 | • GASKET,OIL PAN PLUG | 1 | SN: 10350- |
|||
| ? | 6136-21-5810 | • GASKET,OIL PAN | 1 | SN: 10350- |
|||
| ? | 07000-03022 | • O-RING,OIL PAN DRAIN PLUG | 1 | SN: 10350- |
|||
| ? | 6136-21-4812 | • GASKET,FLYWHEEL HOUSING | 1 | SN: 10350- |
|||
| ? | 6130-22-4231 | • SEAL¤ REAR | 1 | SN: 11262- |
|||
| ? | □6130-22-4230 | • SEAL¤ REAR | 1 | SN: 10350-11261 |
|||
| ? | 07000-63035 | • O-RING,OIL SUCTION PIPE | 1 | SN: 10350- |
|||
| ? | 07000-63028 | • O-RING,OIL FILTER MOUNTING | 2 | SN: 10350- |
|||
| ? | 6136-61-2190 | • O-RING,OIL COOLER PLUG | 1 | SN: 11263- |
|||
| ? | 6136-61-2150 | • O-RING,OIL COOLER CASE | 1 | SN: 11263- |
|||
| ? | 07002-02034 | • O-RING,OIL COOLER PLUG | 1 | SN: 11263-. |
|||
| ? | 6136-61-2190 | • O-RING,OIL COOLER ELEMENT | 2 | SN: 11263- |
|||
| ? | 6136-61-2290 | • GASKET,OIL COOLER ELEMENT | 2 | SN: 11263- |
|||
| ? | 6127-61-2971 | • O-RING,OIL COOLER ELEMENT | 4 | SN: 11263-. |
|||
| ? | 6136-61-2811 | • GASKET,OIL COOLER MOUNT | 1 | SN: 10350- |
|||
| ? | 07000-23022 | • O-RING,OIL PIPE | 1 | SN: 10350- |
|||
| ? | 07000-63028 | • O-RING,OIL PIPE | 1 | SN: 10350- |
|||
| ? | 07012-00032 | • SEAL,OIL | 1 | SN: 10350- |
|||
| ? | 6131-81-3141 | • GASKET,INJECTION PUMP COVER | 1 | SN: 10350- |
|||
| ? | 6136-71-3141 | • WASHER,LOCK | 1 | SN: 11263- |
|||
| ? | 07005-01012 | • GASKET,INJECTION PUMP OIL PIPING | 4 | SN: 10350- |
|||
| ? | 07005-01212 | • GASKET,INJECTION PUMP OIL PIPING | 4 | SN: 11263- |
|||
| ? | 07005-01212 | • GASKET,INJECTION PUMP OIL PIPING | 2 | SN: 10350-11262 |
|||
| ? | 07005-01412 | • GASKET,FUEL PIPE JOINT | 8 | SN: 11263- |
|||
| ? | 07005-01412 | • GASKET,FUEL PIPE JOINT | 4 | SN: 10350-11262 |
|||
| ? | 6150-61-1520 | • SEAL¤ WATER | 1 | SN: 10350- |
|||
| ? | 07000-05160 | • O-RING,WATER PUMP COVER | 1 | SN: 10350- |
|||
| ? | 6136-61-1811 | • GASKET,WATER PUMP MOUNT | 1 | SN: 10350- |
|||
| ? | 07000-02100 | • O-RING,STARTING MOTOR MOUNT | 1 | SN: 10350- |
|||
| ? | 08034-00414 | • BAND,HOSE AND WIRING | 3 | SN: 11263- |
|||
| ? | 08034-00519 | • BAND,HOSE AND WIRING | 3 | SN: 11263- |
|||
| ? | 07005-01012 | • GASKET,(NOT SHOWN) | 1 | SN: 11263- |
|||
| ? | 07005-01412 | • GASKET,(NOT SHOWN) | 2 | SN: 11263- |
|||
| ? | 07005-01612 | • GASKET,(NOT SHOWN) | 4 | SN: 11263- |
