| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

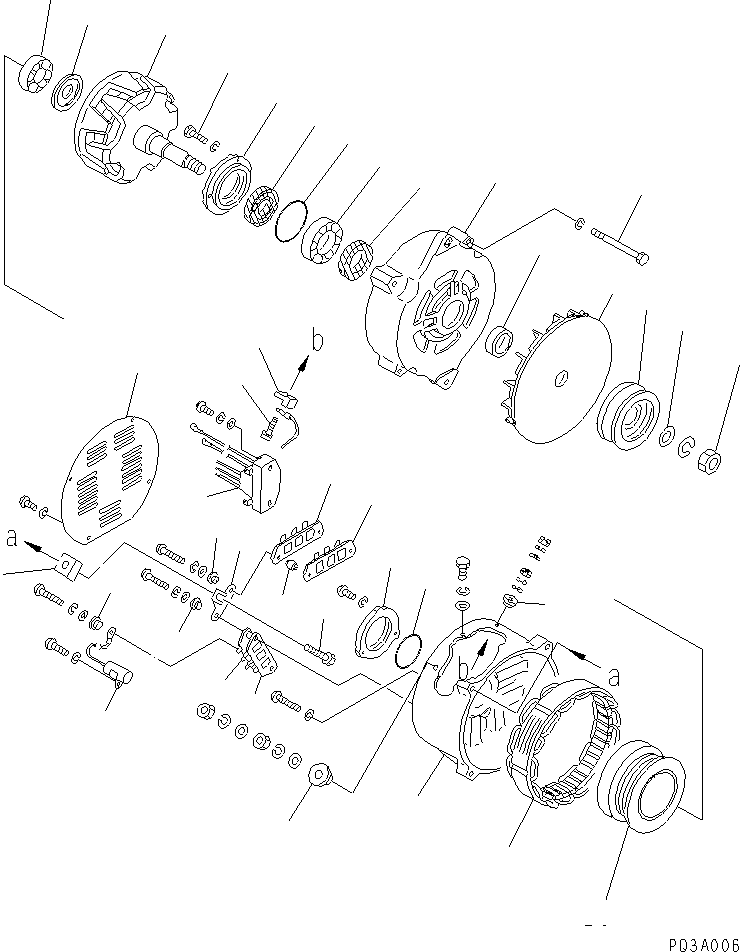

| ? | (☉6164-8X-6300) | ALTERNATOR GROUP | 1 | SN: 10001- |
|||
| ? | ==================== | ||||||
| ? | 600-821-9340 | ALTERNATOR A. (50A) | 1 | SN: 10001- |
|||
| ? | THE SAWAFUJI DENKI PART NUMBER IS THAT SD IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||||
| ? | SD1211-35010 | • STATOR ASS'Y | 1 | SN: 10001- |
|||
| ? | SD1230-18800 | • REAR BRACKET ASS'Y | 1 | SN: 10001- |
|||
| ? | ☆ | • • BRACKET | 1 | SN: 10001- |
|||
| ? | SD1235-06400 | • • HEAT SINK ASS'Y(+) | 2 | SN: 10001- |
|||
| ? | SD1235-06410 | • • HEAT SINK ASS'Y(-) | 2 | SN: 10001- |
|||
| ? | SD5010-26400 | • • BOLT | 1 | SN: 10001- |
|||
| ? | SD3220-38800 | • • SUPPORT | 1 | SN: 10001- |
|||
| ? | SD4215-04000 | • • INSULATOR | 1 | SN: 10001- |
|||
| ? | SD4041-07500 | • • BUSHING | 1 | SN: 10001- |
|||
| ? | SD4215-03900 | • • INSULATOR | 4 | SN: 10001- |
|||
| ? | SD4041-05600 | • • BUSHING | 4 | SN: 10001- |
|||
| ? | SD6060-11920 | • • CONDENSER | 1 | SN: 10001- |
|||
| ? | SD8140-050301 | • • BOLT | 1 | SN: 10001- |
|||
| ? | SD4215-01300 | • • INSULATOR | 1 | SN: 10001- |
|||
| ? | SD4041-05700 | • • BUSHING | 1 | SN: 10001- |
|||
| ? | SD1510-02900 | • • REGULATOR ASS'Y | 1 | SN: 10001- |
|||
| ? | SD4142-01000 | • O-RING | 1 | SN: 10001- |
|||
| ? | SD2202-01401 | • COVER | 1 | SN: 10001- |
|||
| ? | SD6206-00730 | • BEARING,BALL | 1 | SN: 10001- |
|||
| ? | SD3409-00300 | • COVER | 1 | SN: 10001- |
|||
| ? | SD1251-00700 | • COIL ASS'Y | 1 | SN: 10001- |
|||
| ? | SD1221-15100 | • ROTOR ASS'Y | 1 | SN: 10001- |
|||
| ? | SD1240-07200 | • FRONT BRACKET ASS'Y | 1 | SN: 10001- |
|||
| ? | SD2242-08600 | • • BRACKET | 1 | SN: 10001- |
|||
| ? | SD6410-02000 | • • SEAL,OIL | 2 | SN: 10001- |
|||
| ? | SD6206-00320 | • • BEARING,BALL | 1 | SN: 10001- |
|||
| ? | SD4142-00900 | • • O-RING | 1 | SN: 10001- |
|||
| ? | SD2202-02200 | • • COVER | 1 | SN: 10001- |
|||
| ? | SD5010-21500 | • • BOLT | 3 | SN: 10001- |
|||
| ? | SD5010-04730 | • BOLT | 4 | SN: 10001- |
|||
| ? | SD3600-17300 | • COLLAR | 1 | SN: 10001- |
|||
| ? | SD1982-03200 | • FAN | 1 | SN: 10001- |
|||
| ? | SD2080-21500 | • PULLEY | 1 | SN: 10001- |
|||
| ? | SD3000-07800 | • WASHER | 1 | SN: 10001- |
|||
| ? | SD8264-183001 | • NUT | 1 | SN: 10001- |
|||
| ? | SD3002-04600 | • COVER | 1 | SN: 10001- |
|||
| ? | ==================== |
