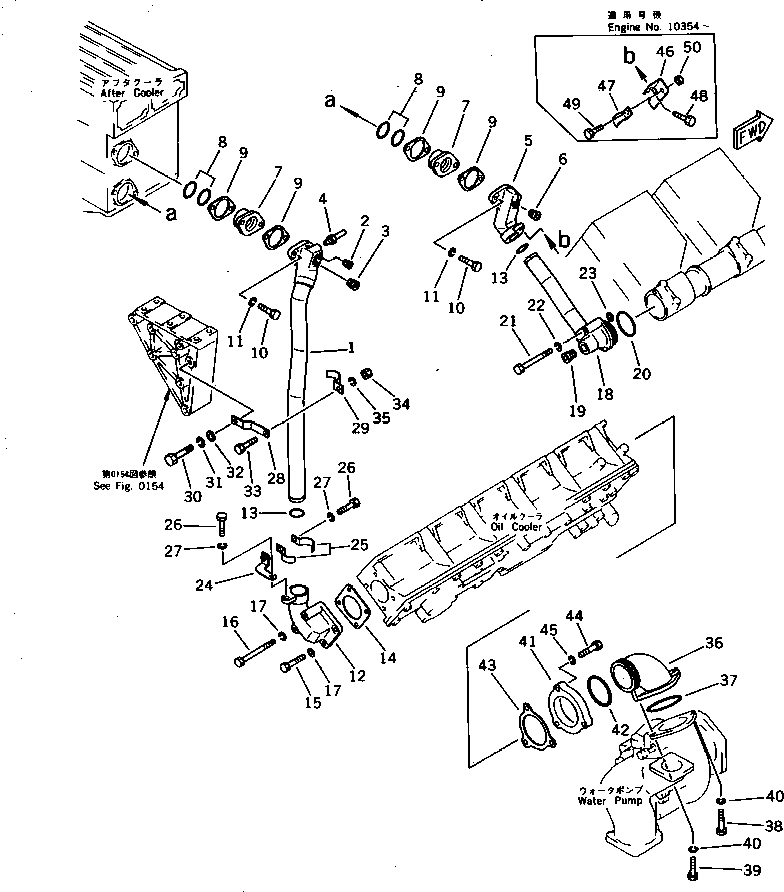

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6164-61-6930 | TUBE | 1 | SN: 10007- |
|||
| ? | 07043-00211 | PLUG | 1 | SN: 10007- |
|||
| ? | 07043-00108 | PLUG | 1 | SN: 10007- |
|||
| ? | 6996-61-9810 | NIPPLE | 1 | SN: 10007- |
|||
| ? | 6164-61-6472 | CONNECTOR | 1 | SN: 10042- |
|||
| ? | 07043-00108 | PLUG | 1 | SN: 10007- |
|||
| ? | 6164-61-6350 | CONNECTOR | 2 | SN: 10239- |
|||
| ? | 6164-61-6340 | O-RING (K1) | 4 | SN: 10007- |
|||
| ? | 6164-61-6360 | GASKET (K1) | 4 | SN: 10007- |
|||
| ? | 01010-31040 | BOLT | 4 | SN: 10246- |
|||
| ? | 01010-31030 | BOLT | 4 | SN: 10007-10245 |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 10007- |
|||
| ? | 6164-61-6291 | CONNECTOR | 1 | SN: 10007- |
|||
| ? | 07000-23038 | O-RING (K1) | 2 | SN: 10007- |
|||
| ? | 6127-11-6130 | GASKET (K2) | 1 | SN: 10007- |
|||
| ? | 01010-31035 | BOLT | 2 | SN: 10007- |
|||
| ? | 01011-31000 | BOLT | 2 | SN: 10007- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 10007- |
|||
| ? | 6164-61-6590 | TUBE,WATER | 1 | SN: 10239- |
|||
| ? | 07043-50415 | PLUG | 1 | SN: 10239- |
|||
| ? | 07000-02070 | O-RING (K1) | 1 | SN: 10007- |
|||
| ? | 01010-31085 | BOLT | 1 | SN: 10239- |
|||
| ? | 01602-01030 | WASHER,SPRING | 1 | SN: 10007- |
|||
| ? | 01643-31032 | WASHER | 1 | SN: 10007- |
|||
| ? | 6164-61-6841 | BRACKET | 1 | SN: 10239- |
|||
| ? | 6164-61-6750 | CLAMP | 2 | SN: 10007- |
|||
| ? | 01010-30825 | BOLT | 2 | SN: 10007- |
|||
| ? | 01640-00816 | WASHER | 2 | SN: 10384- |
|||
| ? | 01602-00825 | WASHER,SPRING | 2 | SN: 10007-10383 |
|||
| ? | 6164-61-6940 | BRACKET | 1 | SN: 10007- |
|||
| ? | 6164-61-6950 | CLAMP | 1 | SN: 10007- |
|||
| ? | 01010-31225 | BOLT | 1 | SN: 10007- |
|||
| ? | 01602-01236 | WASHER,SPRING | 1 | SN: 10007- |
|||
| ? | 01643-31232 | WASHER | 1 | SN: 10007- |
|||
| ? | 01010-31020 | BOLT | 1 | SN: 10007- |
|||
| ? | 01580-01008 | NUT | 1 | SN: 10007- |
|||
| ? | 01602-01030 | WASHER,SPRING | 1 | SN: 10007- |
|||
| ? | 6164-61-6450 | TUBE,WATER PUMP | 1 | SN: 10007- |
|||
| ? | 07000-02095 | O-RING (K6) | 1 | SN: 10007- |
|||
| ? | 01010-31040 | BOLT | 1 | SN: 10007- |
|||
| ? | 01010-31030 | BOLT | 1 | SN: 10007- |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 10007- |
|||
| ? | 6164-61-6440 | FLANGE | 1 | SN: 10007- |
|||
| ? | 6164-61-6570 | O-RING (K6) | 1 | SN: 10007- |
|||
| ? | 6164-61-6460 | GASKET (K6) | 1 | SN: 10007- |
|||
| ? | 01435-01030 | BOLT | 3 | SN: 10339- |
|||
| ? | 01010-31035 | BOLT | 3 | SN: 10007-10338 |
|||
| ? | 01602-01030 | WASHER,SPRING | 3 | SN: 10007-10338 |
|||
| ? | 6166-61-6592 | BRACKET | 1 | SN: 10354- |
|||
| ? | 6164-61-6950 | CLAMP | 1 | SN: 10354- |
|||
| ? | 01010-30816 | BOLT | 1 | SN: 10354- |
|||
| ? | 01010-31016 | BOLT | 1 | SN: 10354- |
|||
| ? | 01580-01008 | NUT | 1 | SN: 10354- |
