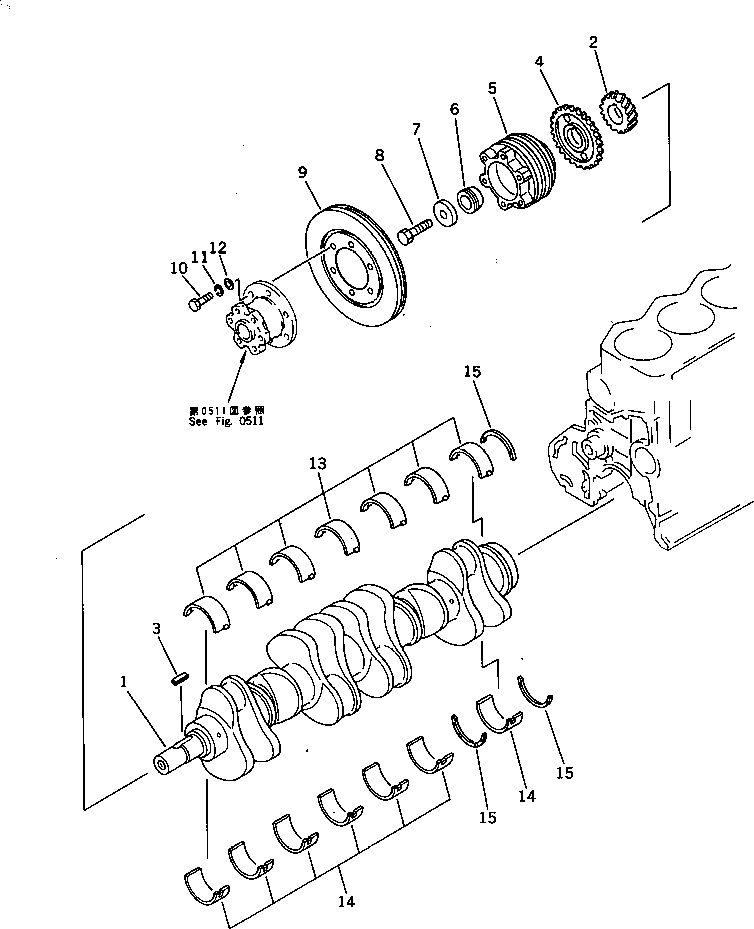

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6136-31-1010 | CRANKSHAFT ASS'Y | 1 | SN: 61481- |
|||
| ? | ☆ | • CRANKSHAFT | 1 | SN: 61481- |
|||
| ? | 6136-31-1120 | • GEAR,CRANKSHAFT | 1 | SN: 61481- |
|||
| ? | 6136-31-1140 | • KEY | 1 | SN: 61481- |
|||
| ? | 6136-31-1130 | GEAR | 1 | SN: 61481- |
|||
| ? | 6136-31-1480 | PULLEY ?NON HARDENING | 1 | SN: 61481- |
|||
| ? | 6136-31-1540 | PULLEY ?NON HARDENING,(PC200SS ? 200LCSS) | 1 | SN: 61481- |
|||
| ? | 6136-31-1580 | PULLEY ? HARDENING,(SANDY AND DUSTY SPEC.) | 1 | SN: 61481- |
|||
| ? | 6136-31-1420 | COLLAR | 1 | SN: 61481- |
|||
| ? | 6136-31-1431 | PLATE | 1 | SN: 61481- |
|||
| ? | 01050-31845 | BOLT | 1 | SN: 92486- |
|||
| ? | ♦6110-33-1411 | BOLT,NYLOCK (K2) | 1 | SN: 61481-92485 |
|||
| ? | 6136-31-8100 | DAMPER | 1 | SN: 61481- |
|||
| ? | 01010-31235 | BOLT | 6 | SN: 61481- |
|||
| ? | 01602-01236 | WASHER,SPRING | 6 | SN: 61481- |
|||
| ? | 01643-31232 | WASHER | 6 | SN: 61481- |
|||
| ? | STANDARD | ||||||
| ? | 6136-22-8010 | MAIN METAL ASS'Y | 7 | SN: 61481- |
|||
| ? | ☆ | • METAL,UPPER | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,LOWER | 1 | SN: 61481- |
|||
| ? | 6136-21-8050 | THRUST METAL ASS'Y | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,THRUST | 3 | SN: 61481- |
|||
| ? | UNDERSIZE 0.25MM | ||||||
| ? | 6136-29-8020 | MAIN METAL ASS'Y | 7 | SN: 61481- |
|||
| ? | ☆ | • METAL,UPPER | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,LOWER | 1 | SN: 61481- |
|||
| ? | UNDERSIZE 0.50MM | ||||||
| ? | 6136-28-8020 | MAIN METAL ASS'Y | 7 | SN: 61481- |
|||
| ? | ☆ | • METAL,UPPER | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,LOWER | 1 | SN: 61481- |
|||
| ? | UNDERSIZE 0.75MM | ||||||
| ? | 6136-27-8020 | MAIN METAL ASS'Y | 7 | SN: 61481- |
|||
| ? | ☆ | • METAL,UPPER | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,LOWER | 1 | SN: 61481- |
|||
| ? | UNDERSIZE 1.00MM | ||||||
| ? | 6136-26-8020 | MAIN METAL ASS'Y | 7 | SN: 61481- |
|||
| ? | ☆ | • METAL,UPPER | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,LOWER | 1 | SN: 61481- |
|||
| ? | OVERSIZE 0.25MM | ||||||
| ? | 6136-29-8050 | THRUST METAL ASS'Y | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,THRUST | 3 | SN: 61481- |
|||
| ? | OVERSIZE 0.50MM | ||||||
| ? | 6136-28-8050 | THRUST METAL ASS'Y | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,THRUST | 3 | SN: 61481- |
|||
| ? | OVERSIZE 0.75MM | ||||||
| ? | 6136-27-8050 | THRUST METAL ASS'Y | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,THRUST | 3 | SN: 61481- |
|||
| ? | OVERSIZE 1.00MM | ||||||
| ? | 6136-26-8050 | THRUST METAL ASS'Y | 1 | SN: 61481- |
|||
| ? | ☆ | • METAL,THRUST | 3 | SN: 61481- |
