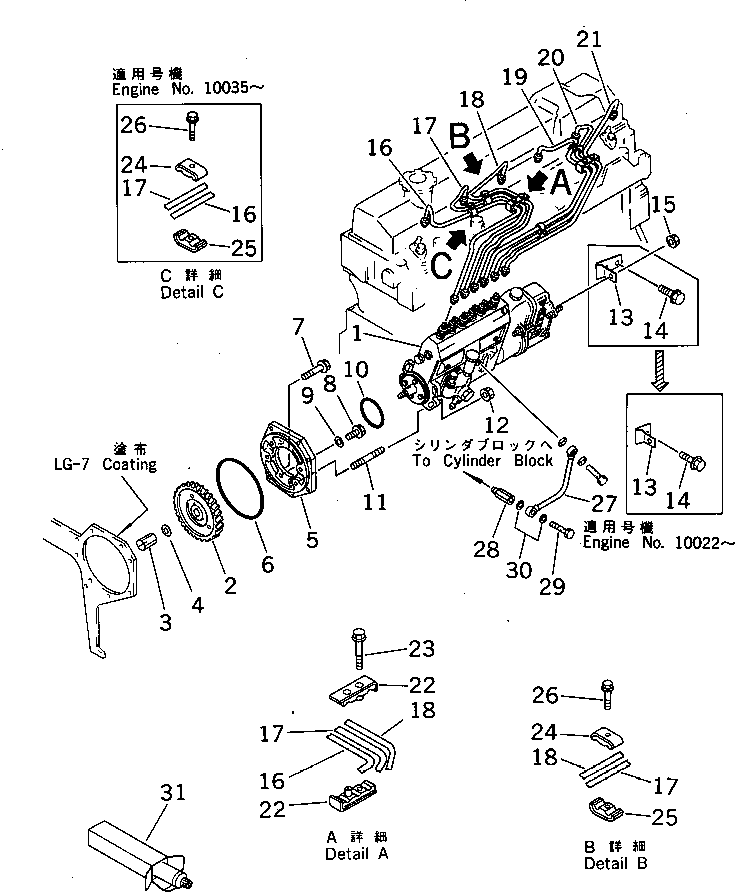

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (6206-71-1221) | INJECTION PUMP ASS'Y,(SEE FIG.0453A) | 1 | SN: 78685- |
|||
| ? | (♦6206-71-1220) | INJECTION PUMP ASS'Y,(SEE FIG.0453) | 1 | SN: 10001-78684 |
|||
| ? | (6206-71-1230) | INJECTION PUMP ASS'Y,(REGULATION OF SWEDEN) | 1 | SN: 10001- |
|||
| ? | 6206-71-3130 | GEAR | 1 | SN: 10001- |
|||
| ? | 6206-71-3630 | NUT | 1 | SN: 10001- |
|||
| ? | 6130-32-1361 | WASHER (K2) | 1 | SN: 65385- |
|||
| ? | □01653-21412 | WASHER,LOCK (K2) | 1 | SN: 10001-65384 |
|||
| ? | 6206-71-3110 | HOLDER | 1 | SN: 10001- |
|||
| ? | 07000-02135 | O-RING (K2) | 1 | SN: 10001- |
|||
| ? | 6204-71-3190 | BOLT | 1 | SN: 10001- |
|||
| ? | 01435-20812 | BOLT | 1 | SN: 10001- |
|||
| ? | 07005-00812 | GASKET (K2) | 1 | SN: 10001- |
|||
| ? | 287-01-12231 | O-RING (K2) | 1 | SN: 10001- |
|||
| ? | 01144-31035 | STUD | 4 | SN: 10001- |
|||
| ? | 01584-01008 | NUT | 4 | SN: 11467- |
|||
| ? | □01584-21008 | NUT | 4 | SN: 10001-11466 |
|||
| ? | 6206-71-1852 | BRACKET | 1 | SN: 10079- |
|||
| ? | □6206-71-1851 | BRACKET | 1 | SN: 10022-10078 |
|||
| ? | 6206-71-1850 | BRACKET | 1 | SN: 10001-10021 |
|||
| ? | 01435-21016 | BOLT | 1 | SN: 10022- |
|||
| ? | 01435-21016 | BOLT | 2 | SN: 10001-10021 |
|||
| ? | 01584-00806 | NUT | 1 | SN: 10001- |
|||
| ? | 6207-71-5111 | TUBE,INJECTION¤ NO.1 | 1 | SN: 58533- |
|||
| ? | ♦6207-71-5110 | TUBE,INJECTION¤ NO.1 | 1 | SN: 10001-58532 |
|||
| ? | 6207-71-5121 | TUBE,INJECTION¤ NO.2 | 1 | SN: 58533- |
|||
| ? | ♦6207-71-5120 | TUBE,INJECTION¤ NO.2 | 1 | SN: 10001-58532 |
|||
| ? | 6207-71-5130 | TUBE,INJECTION¤ NO.3 | 1 | SN: 10001- |
|||
| ? | 6207-71-5140 | TUBE,INJECTION¤ NO.4 | 1 | SN: 10001- |
|||
| ? | 6207-71-5150 | TUBE,INJECTION¤ NO.5 | 1 | SN: 10001- |
|||
| ? | 6207-71-5160 | TUBE,INJECTION¤ NO.6 | 1 | SN: 10001- |
|||
| ? | 6206-71-5720 | CLAMP | 4 | SN: 10001- |
|||
| ? | 01435-20625 | BOLT | 4 | SN: 10001- |
|||
| ? | 6206-71-5700 | CLIP ASS'Y | 4 | SN: 10035- |
|||
| ? | 6206-71-5700 | CLIP ASS'Y | 1 | SN: 10001-10034 |
|||
| ? | 6144-71-5730 | • CLIP | 1 | SN: 10001- |
|||
| ? | 6206-71-5730 | • CLIP¤ WITH THREAD | 1 | SN: 10001- |
|||
| ? | 6206-71-5740 | • BOLT | 1 | SN: 10001- |
|||
| ? | 6204-71-4230 | PIPE,OIL | 1 | SN: 10001- |
|||
| ? | 6204-71-4250 | CONNECTOR | 1 | SN: 10001- |
|||
| ? | 07206-30710 | BOLT,JOINT | 1 | SN: 10001- |
|||
| ? | 07005-01012 | GASKET (K2) | 2 | SN: 10001- |
|||
| ? | (09920-00150) | LIQUID GASKET,LG-7¤ 150G | A/R | SN: 10001- |
