| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

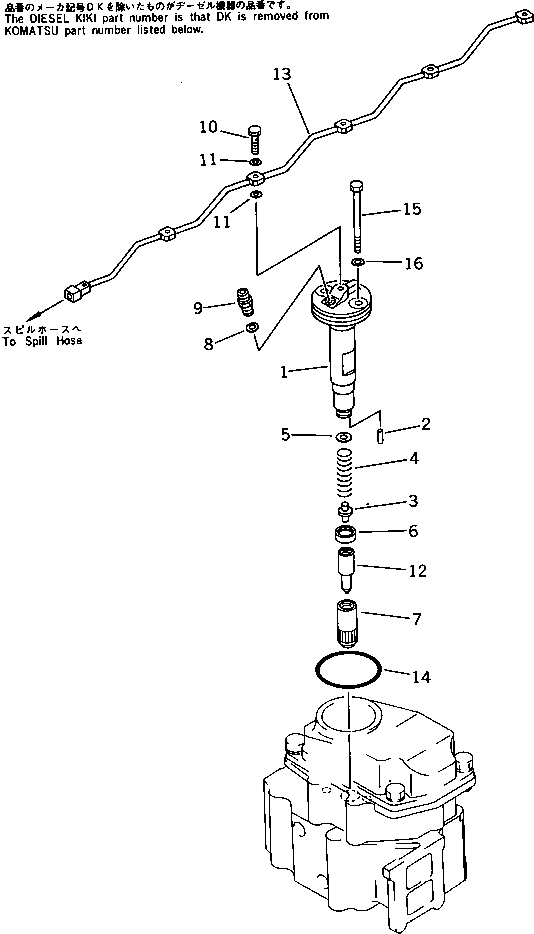

| ? | 6151-11-3101 | NOZZLE HOLDER ASS'Y | 6 | SN: 28434- |
|||
| ? | 6151-11-3111 | • HOLDER ASS'Y | 1 | SN: 28434- |
|||
| ? | DK150525-1700 | • • PIN | 2 | SN: 28434- |
|||
| ? | DK150550-4700 | • • ROD,PUSH | 1 | SN: 28434- |
|||
| ? | DK150562-5000 | • • SPRING,NOZZLE | 1 | SN: 28434- |
|||
| ? | DK150530-4000 | • • SHIM ? 0.500MM | A/R | SN: 28434- |
|||
| ? | DK150530-4100 | • • SHIM ? 0.525MM | A/R | SN: 28434- |
|||
| ? | DK150530-4200 | • • SHIM ? 0.550MM | A/R | SN: 28434- |
|||
| ? | DK150530-4300 | • • SHIM ? 0.575MM | A/R | SN: 28434- |
|||
| ? | DK150530-4400 | • • SHIM ? 0.600MM | A/R | SN: 28434- |
|||
| ? | DK150530-4500 | • • SHIM ? 0.625MM | A/R | SN: 28434- |
|||
| ? | DK150530-4600 | • • SHIM ? 0.650MM | A/R | SN: 28434- |
|||
| ? | DK150530-4700 | • • SHIM ? 0.675MM | A/R | SN: 28434- |
|||
| ? | DK150530-4800 | • • SHIM ? 0.700MM | A/R | SN: 28434- |
|||
| ? | DK150530-4900 | • • SHIM ? 0.725MM | A/R | SN: 28434- |
|||
| ? | DK150530-5000 | • • SHIM ? 0.750MM | A/R | SN: 28434- |
|||
| ? | DK150530-5100 | • • SHIM ? 0.775MM | A/R | SN: 28434- |
|||
| ? | DK150530-5200 | • • SHIM ? 0.800MM | A/R | SN: 28434- |
|||
| ? | DK150530-5300 | • • SHIM ? 0.825MM | A/R | SN: 28434- |
|||
| ? | DK150530-5400 | • • SHIM ? 0.850MM | A/R | SN: 28434- |
|||
| ? | DK150530-5500 | • • SHIM ? 0.875MM | A/R | SN: 28434- |
|||
| ? | DK150530-5600 | • • SHIM ? 0.900MM | A/R | SN: 28434- |
|||
| ? | DK150530-5700 | • • SHIM ? 0.925MM | A/R | SN: 28434- |
|||
| ? | DK150530-5800 | • • SHIM ? 0.950MM | A/R | SN: 28434- |
|||
| ? | DK150530-5900 | • • SHIM ? 0.975MM | A/R | SN: 28434- |
|||
| ? | DK150530-6000 | • • SHIM ? 1.000MM | A/R | SN: 28434- |
|||
| ? | DK150530-6100 | • • SHIM ? 1.025MM | A/R | SN: 28434- |
|||
| ? | DK150530-6200 | • • SHIM ? 1.050MM | A/R | SN: 28434- |
|||
| ? | DK150530-6300 | • • SHIM ? 1.075MM | A/R | SN: 28434- |
|||
| ? | DK150530-6400 | • • SHIM ? 1.100MM | A/R | SN: 28434- |
|||
| ? | DK150530-6500 | • • SHIM ? 1.125MM | A/R | SN: 28434- |
|||
| ? | DK150530-6600 | • • SHIM ? 1.150MM | A/R | SN: 28434- |
|||
| ? | DK150530-6700 | • • SHIM ? 1.175MM | A/R | SN: 28434- |
|||
| ? | DK150530-6800 | • • SHIM ? 1.200MM | A/R | SN: 28434- |
|||
| ? | DK150530-6900 | • • SHIM ? 1.225MM | A/R | SN: 28434- |
|||
| ? | DK150530-7000 | • • SHIM ? 1.250MM | A/R | SN: 28434- |
|||
| ? | DK150530-7100 | • • SHIM ? 1.275MM | A/R | SN: 28434- |
|||
| ? | DK150530-7200 | • • SHIM ? 1.300MM | A/R | SN: 28434- |
|||
| ? | DK150530-7300 | • • SHIM ? 1.325MM | A/R | SN: 28434- |
|||
| ? | DK150530-7400 | • • SHIM ? 1.350MM | A/R | SN: 28434- |
|||
| ? | DK150530-7500 | • • SHIM ? 1.375MM | A/R | SN: 28434- |
|||
| ? | DK150530-7600 | • • SHIM ? 1.400MM | A/R | SN: 28434- |
|||
| ? | DK150530-7700 | • • SHIM ? 1.425MM | A/R | SN: 28434- |
|||
| ? | DK150530-7800 | • • SHIM ? 1.450MM | A/R | SN: 28434- |
|||
| ? | DK150530-7900 | • • SHIM ? 1.475MM | A/R | SN: 28434- |
|||
| ? | DK150530-8000 | • • SHIM ? 1.500MM | A/R | SN: 28434- |
|||
| ? | DK150530-8100 | • • SHIM ? 1.525MM | A/R | SN: 28434- |
|||
| ? | DK150530-8200 | • • SHIM ? 1.550MM | A/R | SN: 28434- |
|||
| ? | DK150530-8300 | • • SHIM ? 1.575MM | A/R | SN: 28434- |
|||
| ? | DK150530-8400 | • • SHIM ? 1.600MM | A/R | SN: 28434- |
|||
| ? | DK150530-8500 | • • SHIM ? 1.625MM | A/R | SN: 28434- |
|||
| ? | DK150530-8600 | • • SHIM ? 1.650MM | A/R | SN: 28434- |
|||
| ? | DK150530-8700 | • • SHIM ? 1.675MM | A/R | SN: 28434- |
|||
| ? | DK150530-8800 | • • SHIM ? 1.700MM | A/R | SN: 28434- |
|||
| ? | DK150530-8900 | • • SHIM ? 1.725MM | A/R | SN: 28434- |
|||
| ? | DK150530-9000 | • • SHIM ? 1.750MM | A/R | SN: 28434- |
|||
| ? | DK150530-9100 | • • SHIM ? 1.775MM | A/R | SN: 28434- |
|||
| ? | DK150530-9200 | • • SHIM ? 1.800MM | A/R | SN: 28434- |
|||
| ? | DK150530-9300 | • • SHIM ? 1.825MM | A/R | SN: 28434- |
|||
| ? | DK150530-9400 | • • SHIM ? 1.850MM | A/R | SN: 28434- |
|||
| ? | DK150530-9500 | • • SHIM ? 1.875MM | A/R | SN: 28434- |
|||
| ? | DK150530-9600 | • • SHIM ? 1.900MM | A/R | SN: 28434- |
|||
| ? | DK150530-9700 | • • SHIM ? 1.925MM | A/R | SN: 28434- |
|||
| ? | DK150530-9800 | • • SHIM ? 1.950MM | A/R | SN: 28434- |
|||
| ? | DK150530-9900 | • • SHIM ? 1.975MM | A/R | SN: 28434- |
|||
| ? | DK150524-4100 | • • SPACER | 1 | SN: 28434- |
|||
| ? | DK150650-9400 | • • NUT,RETAINING | 1 | SN: 28434- |
|||
| ? | DK029300-5070 | • • GASKET | 1 | SN: 28434- |
|||
| ? | DK150645-6800 | • • CONNECTOR,INLET | 1 | SN: 28434- |
|||
| ? | 6127-11-3152 | • • BOLT | 1 | SN: 28434- |
|||
| ? | 07005-00812 | • • GASKET | 2 | SN: 28434- |
|||
| ? | 6151-11-3121 | • NOZZLE | 1 | SN: 28434- |
|||
| ? | 6150-71-5330 | TUBE | 1 | SN: 28434- |
|||
| ? | 07000-65065 | O-RING (K1) | 6 | SN: 28434- |
|||
| ? | 01011-51045 | BOLT | 12 | SN: 28434- |
|||
| ? | 07005-01012 | GASKET (K1) | 12 | SN: 28434- |
