| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

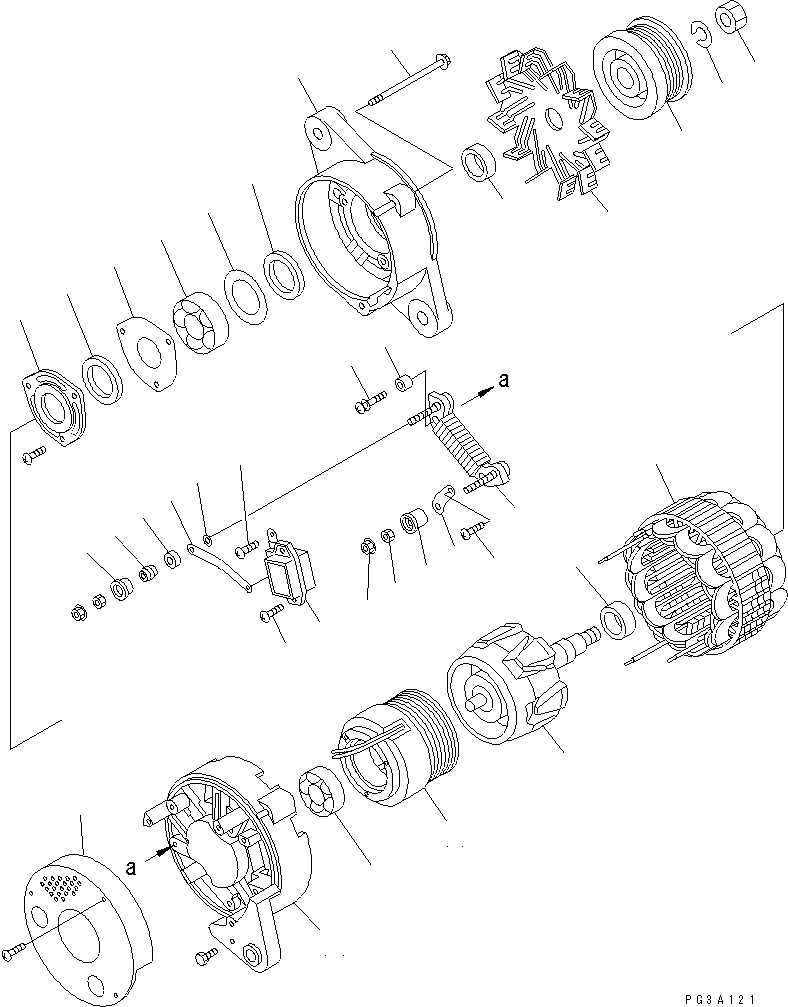

| ? | 600-861-5110 | ALTERNATOR A. (50A) | 1 | SN: 26240595- |
|||
| ? | KD0-35100-0300 | • ROTOR ASS'Y | 1 | SN: 26240595- |
|||
| ? | KD0-35923-0160 | • COLLAR | 1 | SN: 26240595- |
|||
| ? | KD1-33923-0790 | • COLLAR | 1 | SN: 26240595- |
|||
| ? | KD0-09201-0980 | • BEARING,BALL | 1 | SN: 26240595- |
|||
| ? | KD0-35300-0190 | • BRACKET ASS'Y,FRONT | 1 | SN: 26240595- |
|||
| ? | KD0-35926-0070 | • RETAINER | 1 | SN: 26240595- |
|||
| ? | KD0-35926-0060 | • RETAINER | 2 | SN: 26240595- |
|||
| ? | KD0-35926-0090 | • RETAINER | 1 | SN: 26240595- |
|||
| ? | KD0-09201-0880 | • BEARING,BALL | 1 | SN: 26240595- |
|||
| ? | KD1-33926-0730 | • RETAINER | 1 | SN: 26240595- |
|||
| ? | KD0-35120-0210 | • FIELD COIL ASS'Y | 1 | SN: 26240595- |
|||
| ? | KD0-35200-0430 | • STATOR ASS'Y | 1 | SN: 26240595- |
|||
| ? | KD0-0275-06802 | • BOLT | 3 | SN: 26240595- |
|||
| ? | KD0-35700-0750 | • BRACKET ASS'Y,REAR | 1 | SN: 26240595- |
|||
| ? | KD0-35710-0870 | • • BRACKET,REAR | 1 | SN: 26240595- |
|||
| ? | KD0-35730-0510 | • • RECTIFIER ASS'Y | 1 | SN: 26240595- |
|||
| ? | KD0-35719-0200 | • • REGULATOR ASS'Y | 1 | SN: 26240595- |
|||
| ? | KD1-0331-06013 | • • WASHER | 1 | SN: 26240595- |
|||
| ? | KD0-09120-0770 | • • PLATE,TERMINAL | 1 | SN: 26240595- |
|||
| ? | KD0-35784-0240 | • • BAR,CONNECT | 1 | SN: 26240595- |
|||
| ? | KD0-35923-0130 | • • COLLAR | 3 | SN: 26240595- |
|||
| ? | KD0-35943-0140 | • • BUSH,INSULATE | 1 | SN: 26240595- |
|||
| ? | KD0-35943-0150 | • • BUSH,INSULATE | 1 | SN: 26240595- |
|||
| ? | KD0-35943-0160 | • • BUSH,INSULATE | 1 | SN: 26240595- |
|||
| ? | KD0-35943-0170 | • • BUSH,INSULATE | 2 | SN: 26240595- |
|||
| ? | KD0-09011-3270 | • • SCREW | 1 | SN: 26240595- |
|||
| ? | KD0-0055-05202 | • • SCREW | 2 | SN: 26240595- |
|||
| ? | KD0-0056-05302 | • • SCREW | 2 | SN: 26240595- |
|||
| ? | KD0-33902-0090 | • • NUT | 2 | SN: 26240595- |
|||
| ? | KD0-33902-0080 | • • NUT | 2 | SN: 26240595- |
|||
| ? | KD0-35411-0640 | • PULLEY | 1 | SN: 26240595- |
|||
| ? | KD0-35421-0170 | • FAN | 1 | SN: 26240595- |
|||
| ? | KD1-0335-16002 | • WASHER,SPRING | 1 | SN: 26240595- |
|||
| ? | KD0-0280-16022 | • NUT | 1 | SN: 26240595- |
|||
| ? | KD0-35761-0220 | • COVER | 1 | SN: 26240595- |
