| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

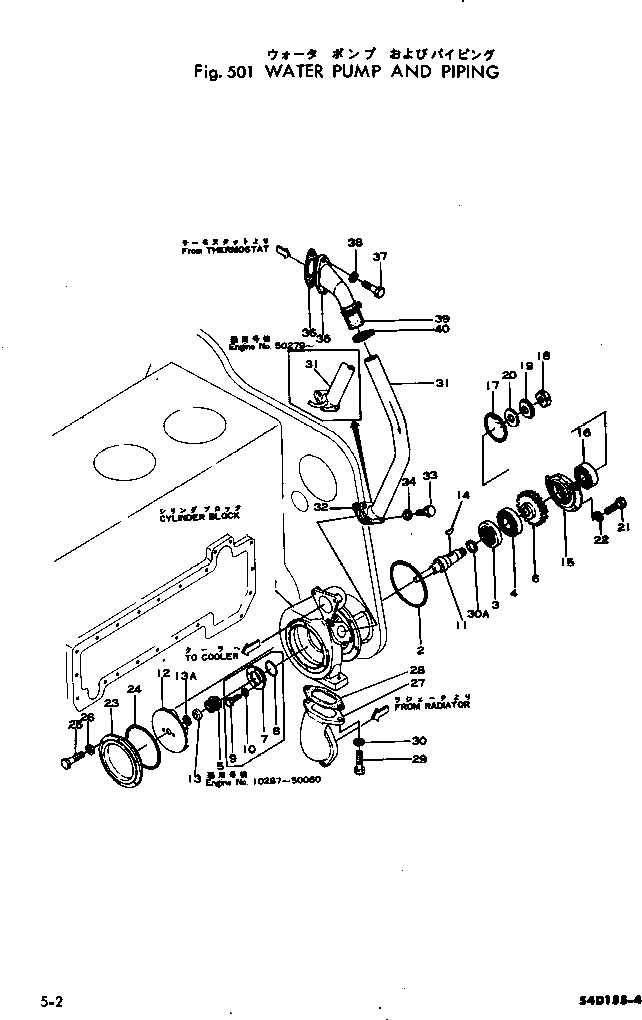

| ? | 6124-61-1004 | WATER PUMP ASS'Y | 1 | SN: 50248- |
|||
| ? | □6124-61-1003 | WATER PUMP ASS'Y | 1 | SN: 50133-50247 |
|||
| ? | □6124-61-1002 | WATER PUMP ASS'Y | 1 | SN: 50061-50132 |
|||
| ? | □6124-61-1001 | WATER PUMP ASS'Y | 1 | SN: 10287-50060 |
|||
| ? | 6124-61-1111 | • BODY | 1 | SN: 50061- |
|||
| ? | □6124-61-1110 | • BODY | 1 | SN: 10287-50060 |
|||
| ? | 07000-05140 | • O-RING (K2) | 1 | SN: 10287- |
|||
| ? | 07012-20042 | • SEAL,OIL (K2) | 1 | SN: 10287- |
|||
| ? | 06000-06207 | • BEARING | 1 | SN: 10287- |
|||
| ? | 6610-61-1511 | • SEAL ? WATER (K2) | 1 | SN: 10287- |
|||
| ? | 6127-61-1410 | • GEAR | 1 | SN: 10287- |
|||
| ? | 6124-61-1520 | • RING | 1 | SN: 10287-50060 |
|||
| ? | 07000-03042 | • O-RING (K2) | 1 | SN: 10287-50060 |
|||
| ? | 01212-20412 | • SCREW | 4 | SN: 10287-50060 |
|||
| ? | 01602-00410 | • WASHER,SPRING | 4 | SN: 10287-50060 |
|||
| ? | 6124-61-1312 | • SHAFT | 1 | SN: 50248- |
|||
| ? | 6124-61-1311 | • SHAFT | 1 | SN: 50133-50247 |
|||
| ? | ▩6124-61-1310 | • SHAFT | 1 | SN: 10287-50132 |
|||
| ? | (6124-61-1311{6124-61-1333 ?} | ||||||
| ? | 6610-61-1331) | ||||||
| ? | ▩6124-61-1031 | • IMPELLER ASS'Y | 1 | SN: 10287-50132 |
|||
| ? | (6124-61-1333{6124-61-1311 ?} | ||||||
| ? | 6610-61-1331) | ||||||
| ? | 6124-61-1333 | • • IMPELLER | 1 | SN: 50133- |
|||
| ? | ☆ | • • IMPELLER | 1 | SN: 10287-50132 |
|||
| ? | 6610-61-1331 | • • SEAT | 1 | SN: 50133- |
|||
| ? | □6610-61-1330 | • • SEAT,SEAL | 1 | SN: 10287-50132 |
|||
| ? | 6610-61-1340 | • • FILM | 1 | SN: 10287-50132 |
|||
| ? | 04010-00728 | • KEY | 1 | SN: 10287- |
|||
| ? | 6127-61-1140 | • HOUSING | 1 | SN: 10287- |
|||
| ? | 06030-06206 | • BEARING | 1 | SN: 10287- |
|||
| ? | 04065-06220 | • RING,SNAP | 1 | SN: 10287- |
|||
| ? | 01530-02010 | • NUT | 1 | SN: 10287- |
|||
| ? | 01658-22016 | • WASHER,LOCK (K2) | 1 | SN: 10287- |
|||
| ? | 01643-32060 | • WASHER | 1 | SN: 10287- |
|||
| ? | 01010-30820 | • BOLT | 4 | SN: 10287- |
|||
| ? | 01602-00825 | • WASHER,SPRING | 4 | SN: 10287- |
|||
| ? | 6124-61-1120 | • COVER | 1 | SN: 10287- |
|||
| ? | 07000-03135 | • O-RING (K2) | 1 | SN: 10287- |
|||
| ? | 01000-30615 | • BOLT | 6 | SN: 10287- |
|||
| ? | 01602-00619 | • WASHER,SPRING | 6 | SN: 10287- |
|||
| ? | 6124-61-1130 | • PIPE,INLET | 1 | SN: 10287- |
|||
| ? | 6124-61-1160 | • GASKET (K2) | 1 | SN: 10287- |
|||
| ? | 01010-31235 | • BOLT | 2 | SN: 10287- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 2 | SN: 10287- |
|||
| ? | 6124-61-1320 | • V-RING (K2) | 1 | SN: 50248- |
|||
| ? | 6124-61-6420 | PIPE,BYPASS | 1 | SN: 50279- |
|||
| ? | 6124-61-6410 | PIPE,BYPASS | 1 | SN: 10287-50278 |
|||
| ? | 6127-61-6850 | GASKET (K2) | 1 | SN: 10287- |
|||
| ? | 01010-31025 | BOLT | 2 | SN: 10287- |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 10287- |
|||
| ? | 6127-61-6510 | ELBOW | 1 | SN: 10287- |
|||
| ? | 6127-61-6860 | GASKET (K2) | 1 | SN: 10287- |
|||
| ? | 01010-31030 | BOLT | 2 | SN: 10287- |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 10287- |
|||
| ? | 6127-61-6421 | HOSE | 1 | SN: 10287- |
|||
| ? | 600-714-1660 | CLAMP | 2 | SN: 50229- |
|||
| ? | □07280-05026 | CLAMP | 2 | SN: 10287-50228 |
