| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

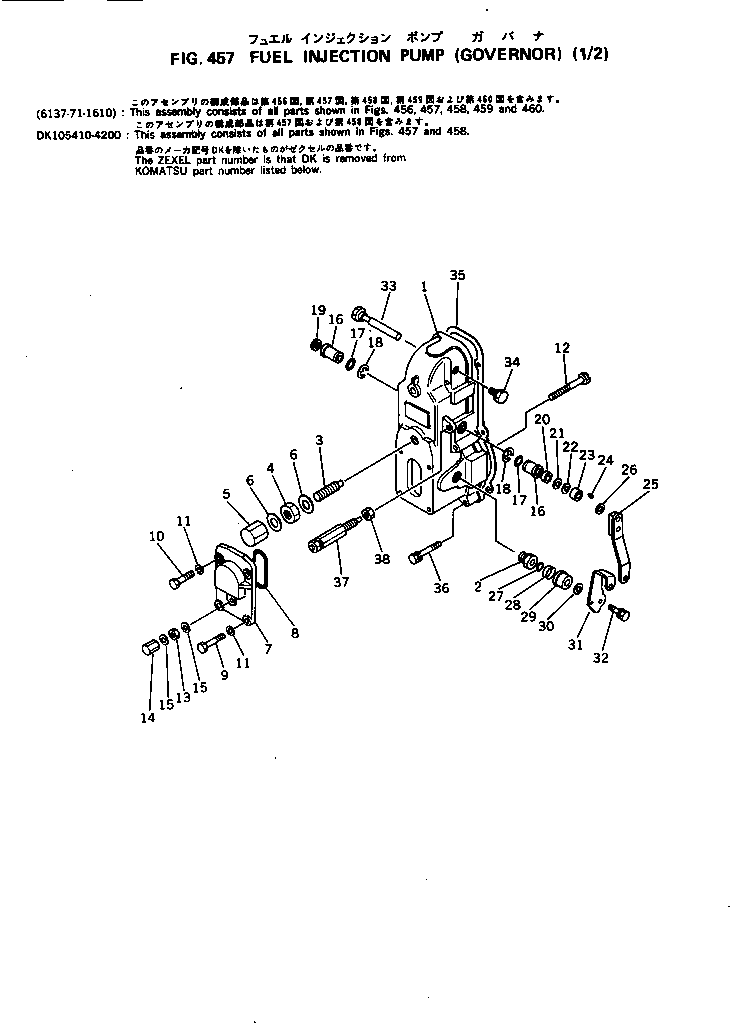

| ? | (6137-71-1610) | INJECTION PUMP ASS'Y | 1 | SN: 11370- |
|||
| ? | DK105410-4200 | • GOVERNOR ASS'Y | 1 | SN: 11370- |
|||
| ? | DK154500-3020 | • • COVER ASS'Y | 1 | SN: 11370- |
|||
| ? | DK154321-0400 | • • • BUSHING | 1 | SN: 11370- |
|||
| ? | DK154157-0120 | • • CAPSULE | 1 | SN: 11370- |
|||
| ? | DK029201-2030 | • • NUT | 1 | SN: 11370- |
|||
| ? | DK154159-1200 | • • NUT,CAP | 1 | SN: 11370- |
|||
| ? | DK026512-1540 | • • GASKET | 2 | SN: 11370- |
|||
| ? | DK154063-1400 | • • COVER | 1 | SN: 11370- |
|||
| ? | DK029635-2020 | • • O-RING | 1 | SN: 11370- |
|||
| ? | DK029020-6210 | • • BOLT | 2 | SN: 11370- |
|||
| ? | DK020006-1640 | • • BOLT | 2 | SN: 11370- |
|||
| ? | DK029320-6040 | • • WASHER,SPRING | 4 | SN: 11370- |
|||
| ? | DK154031-2400 | • • SCREW | 1 | SN: 11370- |
|||
| ? | DK029240-6010 | • • NUT | 1 | SN: 11370- |
|||
| ? | DK154035-1600 | • • NUT,CAP | 1 | SN: 11370- |
|||
| ? | DK026506-1040 | • • GASKET | 2 | SN: 11370- |
|||
| ? | DK154204-0100 | • • BUSHING | 2 | SN: 11370- |
|||
| ? | DK029631-8020 | • • O-RING | 2 | SN: 11370- |
|||
| ? | DK016010-1640 | • • RING,SNAP | 2 | SN: 11370- |
|||
| ? | DK029141-7010 | • • PLUG | 1 | SN: 11370- |
|||
| ? | DK029621-1010 | • • SEAL,OIL | 1 | SN: 11370- |
|||
| ? | DK029311-1070 | • • SHIM ? 0.5MM | 1 | SN: 11370- |
|||
| ? | DK029311-1090 | • • SHIM ? 0.3MM | A/R | SN: 11370- |
|||
| ? | DK154206-0100 | • • COLLAR | 1 | SN: 11370- |
|||
| ? | DK025803-1310 | • • KEY ? 13MM | 1 | SN: 11370- |
|||
| ? | DK154341-6220 | • • LEVER | 1 | SN: 11370- |
|||
| ? | DK154206-0200 | • • WASHER ? 1.0MM | A/R | SN: 11370- |
|||
| ? | DK029631-0030 | • • O-RING | 1 | SN: 11370- |
|||
| ? | DK154327-0200 | • • SPRING | 1 | SN: 11370- |
|||
| ? | DK154322-0100 | • • CAP | 1 | SN: 11370- |
|||
| ? | DK029311-0220 | • • SHIM ? 0.2MM | A/R | SN: 11370- |
|||
| ? | DK029311-0230 | • • SHIM ? 0.5MM | A/R | SN: 11370- |
|||
| ? | DK154304-9100 | • • LEVER | 1 | SN: 11370- |
|||
| ? | DK020006-1640 | • • BOLT | 1 | SN: 11370- |
|||
| ? | DK154237-1100 | • • PIN | 1 | SN: 11370- |
|||
| ? | DK154036-0300 | • • PLUG | 1 | SN: 11370- |
|||
| ? | DK154350-7800 | • • GASKET | 1 | SN: 11370- |
|||
| ? | DK020106-5040 | • • BOLT | 6 | SN: 11370- |
|||
| ? | DK154010-0300 | • • SCREW | 1 | SN: 11370- |
|||
| ? | DK154011-0100 | • • NUT | 1 | SN: 11370- |
