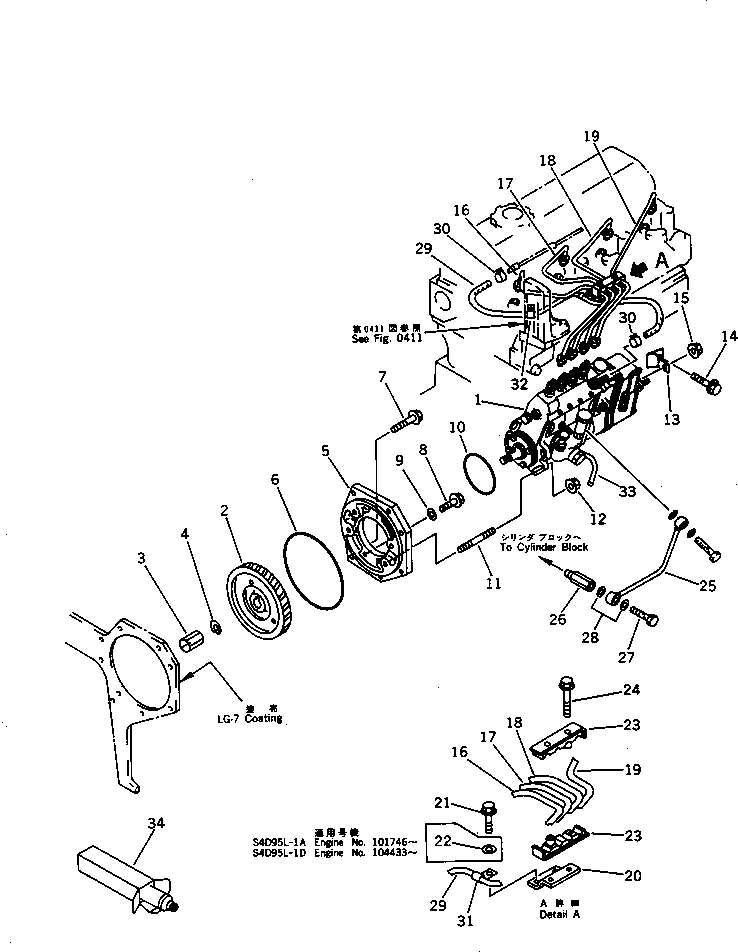

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (6205-71-1271) | INJECTION PUMP ASS'Y,(SEE FIG.0451B) | 1 | SN: 101625- |
|||
| ? | ▩6205-71-1232 | INJECTION PUMP ASS'Y,(SEE FIG.0451A) | 1 | SN: 71664-101624 |
|||
| ? | (6205-71-1271{6202-13-3300(4))} | ||||||
| ? | ♦6205-71-1231 | INJECTION PUMP ASS'Y,(SEE FIG.0451) | 1 | SN: 48797-71663 |
|||
| ? | 6204-71-3130 | GEAR | 1 | SN: 48797- |
|||
| ? | 6204-71-3630 | NUT | 1 | SN: 48797- |
|||
| ? | 6114-31-3330 | WASHER (K2) | 1 | SN: 73773- |
|||
| ? | □01653-21212 | WASHER,LOCK | 1 | SN: 67199-73772 |
|||
| ? | 01653-21212 | WASHER,LOCK (K2) | 1 | SN: 48797-67198 |
|||
| ? | 01653-21212 | WASHER,LOCK (NOISE SUPPRESSION SPEC.) | 1 | SN: 59024-73772 |
|||
| ? | 01653-21212 | WASHER,LOCK (NOISE SUPPRESSION SPEC.) (K2) | 1 | SN: 48797-59023 |
|||
| ? | 6204-71-3110 | HOLDER | 1 | SN: 48797- |
|||
| ? | 07000-02135 | O-RING (K2) | 1 | SN: 48797- |
|||
| ? | 6204-71-3190 | BOLT | 1 | SN: 48797- |
|||
| ? | 01435-20812 | BOLT | 1 | SN: 48797- |
|||
| ? | 07005-00812 | GASKET (K2) | 1 | SN: 48797- |
|||
| ? | 07000-02065 | O-RING (K2) | 1 | SN: 48797- |
|||
| ? | 01144-31035 | STUD | 4 | SN: 48797- |
|||
| ? | 01584-01008 | NUT | 4 | SN: 48797- |
|||
| ? | 6206-71-1852 | BRACKET | 1 | SN: 48797- |
|||
| ? | 01435-21016 | BOLT | 1 | SN: 48797- |
|||
| ? | 01584-00806 | NUT | 1 | SN: 48797- |
|||
| ? | 6204-71-5110 | TUBE,INJECTION ? NO.1 | 1 | SN: 48797- |
|||
| ? | 6204-71-5120 | TUBE,INJECTION ? NO.2 | 1 | SN: 48797- |
|||
| ? | 6204-71-5130 | TUBE,INJECTION ? NO.3 | 1 | SN: 48797- |
|||
| ? | 6204-71-5140 | TUBE,INJECTION ? NO.4 | 1 | SN: 48797- |
|||
| ? | 6204-71-5810 | PLATE | 1 | SN: 48797- |
|||
| ? | 01435-20612 | BOLT | 2 | SN: 48797- |
|||
| ? | 01640-20816 | WASHER | 1 | SN: 101746- |
|||
| ? | 6204-71-5710 | CLAMP | 2 | SN: 48797- |
|||
| ? | 01435-20625 | BOLT | 2 | SN: 48797- |
|||
| ? | 6204-71-4230 | PIPE,OIL | 1 | SN: 48797- |
|||
| ? | 6204-71-4250 | CONNECTOR | 1 | SN: 48797- |
|||
| ? | 07206-30710 | BOLT,JOINT | 1 | SN: 48797- |
|||
| ? | 07005-01012 | GASKET (K2) | 2 | SN: 48797- |
|||
| ? | 6204-71-9420 | HOSE,SPILL | 1 | SN: 101746- |
|||
| ? | (\4\6130-71-5510) | HOSE,SPILL | 1 | SN: 48797-101745 |
|||
| ? | (6204-71-9420{07285-00100(2) ?} | ||||||
| ? | 08036-11214(2){01640-20816)} | ||||||
| ? | 07285-00100 | CLIP | 2 | SN: 101746- |
|||
| ? | 07285-00080 | CLIP | 2 | SN: 48797-101745 |
|||
| ? | 08036-11214 | CLIP | 1 | SN: 101746- |
|||
| ? | 08036-10810 | CLIP | 1 | SN: 48797-101745 |
|||
| ? | 08036-11214 | CLIP | 1 | SN: 101746- |
|||
| ? | 08036-10814 | CLIP | 1 | SN: 48797-101745 |
|||
| ? | 6144-73-5750 | JOINT | 1 | SN: 71664- |
|||
| ? | (09920-00150) | LIQUID GASKET,LG-7 ? 150G | A/R | SN: 48797- |
