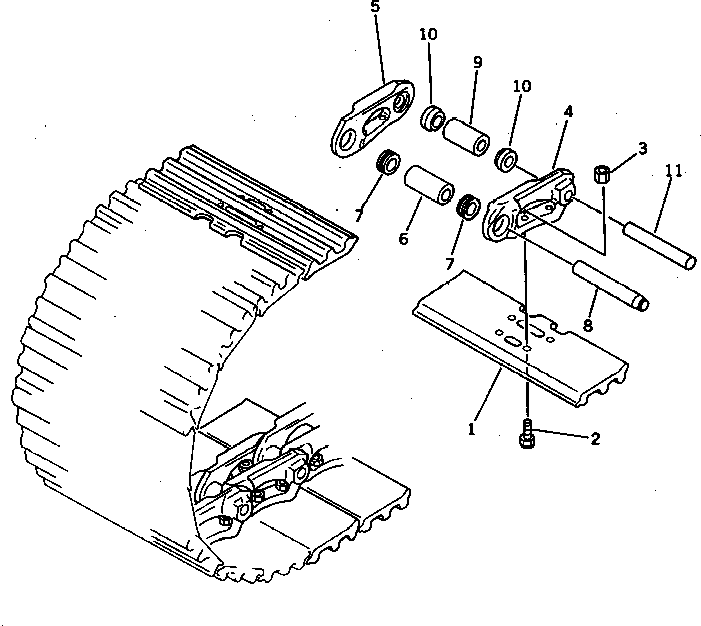

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 510MM WIDE ?WITH HOLE | ||||||
| ? | 203-32-01024 | TRACK SHOE ASS'Y | 1 | SN: 10198- |
|||
| ? | □203-32-01022 | TRACK SHOE ASS'Y | 1 | SN: 10001-10197 |
|||
| ? | 203-32-41111 | • SHOE,TRACK | 96 | SN: 10001- |
|||
| ? | 112-32-11211 | • BOLT ? SHOE (KIT) | 384 | SN: 10198- |
|||
| ? | 203-32-21210 | • BOLT ? SHOE (KIT) | 384 | SN: 10001-10197 |
|||
| ? | 112-32-11221 | • NUT ? SHOE (KIT) | 384 | SN: 10198- |
|||
| ? | 01803-01420 | • NUT (KIT) | 384 | SN: 10001-10197 |
|||
| ? | 203-32-00011 | • TRACK LINK ASS'Y | 1 | SN: 10001- |
|||
| ? | 110-32-11322 | • • LINK,TRACK ? L.H. | 96 | SN: 10001- |
|||
| ? | 110-32-11332 | • • LINK,TRACK ? R.H. | 96 | SN: 10001- |
|||
| ? | 203-32-11342 | • • BUSHING,REGULAR | 92 | SN: 10001- |
|||
| ? | 203-32-11360 | • • SEAL,DUST ? REGULAR | 184 | SN: 10001- |
|||
| ? | 203-32-11351 | • • PIN,REGULAR | 92 | SN: 10001- |
|||
| ? | 203-32-11372 | • • BUSHING,MASTER | 4 | SN: 10001- |
|||
| ? | 203-32-11380 | • • SEAL,DUST ? MASTER | 8 | SN: 10001- |
|||
| ? | 203-32-11391 | • • PIN,MASTER | 4 | SN: 10001- |
|||
| ? | 610MM WIDE{WITH HOLE} | ||||||
| ? | 203-32-01033 | TRACK SHOE ASS'Y | 1 | SN: 10001- |
|||
| ? | 203-32-11281 | • SHOE ? TRACK | 96 | SN: 10001- |
|||
| ? | 112-32-11211 | • BOLT ? SHOE (KIT) | 384 | SN: 10001- |
|||
| ? | 112-32-11221 | • NUT ? SHOE (KIT) | 384 | SN: 10001- |
|||
| ? | 203-32-00011 | • TRACK LINK ASS'Y | 1 | SN: 10001- |
|||
| ? | SERVICE KIT | ||||||
| ? | 112-32-05021 | SHOE BOLT AND NUT K. | 1 | SN: 10198- |
|||
| ? | □203-32-05010 | SHOE BOLT AND NUT K. | 1 | SN: 10001-10197 |
|||
| ? | 112-32-11211 | • BOLT ? SHOE | 50 | SN: 10198- |
|||
| ? | 203-32-21210 | • BOLT ? SHOE | 50 | SN: 10001-10197 |
|||
| ? | 112-32-11221 | • NUT ? SHOE | 50 | SN: 10198- |
|||
| ? | 01803-01420 | • NUT | 50 | SN: 10001-10197 |
|||
| ? | OVERSIZE 0.10MM | ||||||
| ? | 202-98-09112 | BUSHING,REGULAR | A/R | SN: 10001- |
|||
| ? | 202-98-09011 | PIN,REGULAR | A/R | SN: 10001- |
|||
| ? | 202-98-09142 | BUSHING,MASTER | A/R | SN: 10001- |
|||
| ? | 202-98-09041 | PIN,MASTER | A/R | SN: 10001- |
|||
| ? | OVERSIZE 0.18MM | ||||||
| ? | 202-98-09132 | BUSHING,REGULAR | A/R | SN: 10001- |
|||
| ? | 202-98-09031 | PIN,REGULAR | A/R | SN: 10001- |
|||
| ? | 202-98-09162 | BUSHING,MASTER | A/R | SN: 10001- |
|||
| ? | 202-98-09061 | PIN,MASTER | A/R | SN: 10001- |
