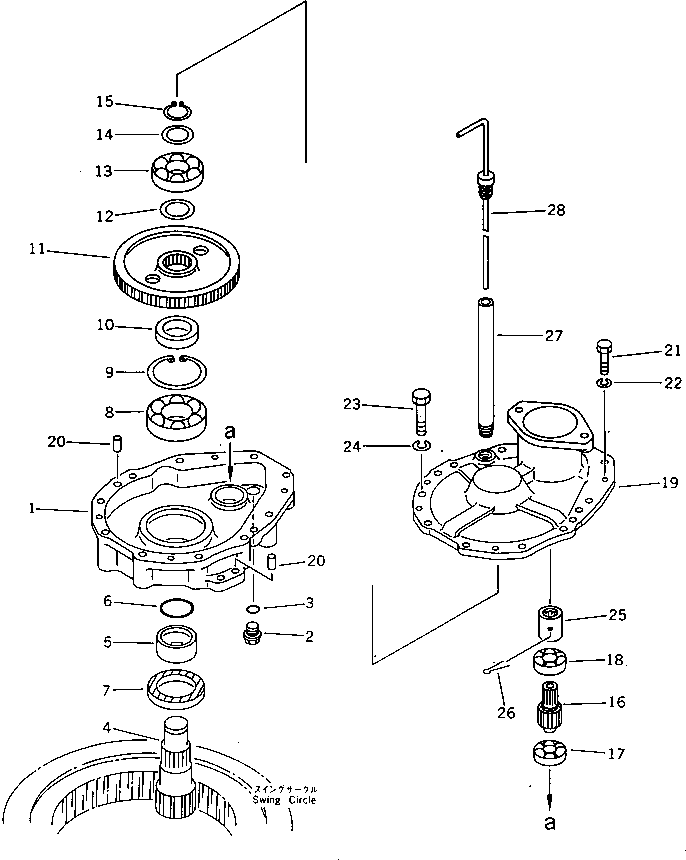

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 20S-26-11150 | CASE,LOWER | 1 | SN: 1001- |
|||
| ? | 07044-12412 | PLUG | 1 | SN: 1001- |
|||
| ? | 07002-02434 | O-RING | 1 | SN: 1001- |
|||
| ? | 20S-26-11111 | SHAFT | 1 | SN: 1001- |
|||
| ? | 20R-26-11330 | COLLAR | 1 | SN: 1001- |
|||
| ? | 07000-02055 | O-RING | 1 | SN: 1001- |
|||
| ? | 07012-00070 | SEAL,OIL | 1 | SN: 1001- |
|||
| ? | 06030-22211 | BEARING,ROLLER | 1 | SN: 1001- |
|||
| ? | 04065-01030 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 20R-26-11340 | COLLAR | 1 | SN: 1001- |
|||
| ? | 20S-26-11120 | GEAR | 1 | SN: 1001- |
|||
| ? | 20S-26-11170 | COLLAR | 1 | SN: 1001- |
|||
| ? | 06044-00308 | BEARING,ROLLER | 1 | SN: 1001- |
|||
| ? | 20R-26-11360 | COLLAR | 1 | SN: 1001- |
|||
| ? | 04064-04018 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 20S-26-11130 | SHAFT | 1 | SN: 1001- |
|||
| ? | 06040-06304 | BEARING,BALL | 1 | SN: 1001- |
|||
| ? | 06044-00205 | BEARING,ROLLER | 1 | SN: 1001- |
|||
| ? | 21E-26-11110 | CASE,UPPER | 1 | SN: 1001- |
|||
| ? | 04020-01434 | PIN,DOWEL | 4 | SN: 1001- |
|||
| ? | 01010-51035 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 01011-51200 | BOLT | 10 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 10 | SN: 1001- |
|||
| ? | 21E-26-11210 | COUPLING | 1 | SN: 1001- |
|||
| ? | 04050-15050 | PIN,COTTER | 1 | SN: 1001- |
|||
| ? | 20S-26-11180 | FILLER | 1 | SN: 1001- |
|||
| ? | 20S-26-11190 | GAUGE,OIL LEVEL (FOR JAPAN) | 1 | SN: 1001- |
|||
| ? | 21F-26-11110 | GAUGE,OIL LEVEL (EXCEPT JAPAN) | 1 | SN: 1001- |
