| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

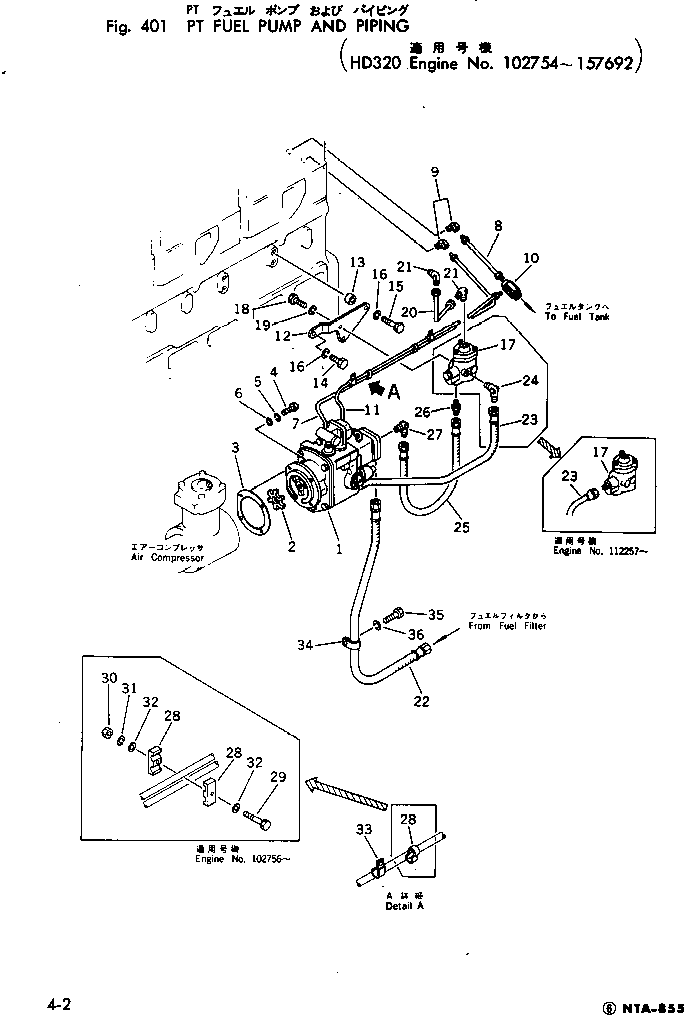

| ? | (6710-71-1011) | PT FUEL PUMP ASS'Y,(SEE FIG.451) | 1 | SN: 138589-@ |
|||
| ? | (6710-71-1010) | PT FUEL PUMP ASS'Y,(SEE FIG.451) | 1 | SN: 102754-138588 |
|||
| ? | 6684-71-7711 | COUPLING | 1 | SN: 102754-@ |
|||
| ? | 6710-71-7920 | GASKET (K2) | 1 | SN: 102754-@ |
|||
| ? | 02010-20732 | BOLT | 4 | SN: 102754-@ |
|||
| ? | 02310-11428 | WASHER | 4 | SN: 102754-@ |
|||
| ? | 02300-11520 | WASHER | 4 | SN: 102754-@ |
|||
| ? | 6710-71-8110 | TUBE | 1 | SN: 102754-@ |
|||
| ? | 6710-71-9140 | TUBE | 1 | SN: 102754-@ |
|||
| ? | 6710-71-9130 | ELBOW | 2 | SN: 102756-@ |
|||
| ? | □6610-71-4410 | ELBOW | 2 | SN: 102754-102755 |
|||
| ? | 6710-71-9110 | TEE | 1 | SN: 102754-@ |
|||
| ? | 6710-71-9280 | TUBE | 1 | SN: 102754-@ |
|||
| ? | 6710-21-6670 | BRACKET | 1 | SN: 102754-@ |
|||
| ? | 6710-21-6650 | SPACER | 1 | SN: 102754-@ |
|||
| ? | 02030-70922 | BOLT | 1 | SN: 102754-@ |
|||
| ? | 02030-70938 | BOLT | 1 | SN: 102754-@ |
|||
| ? | 02310-01836 | WASHER | 2 | SN: 102754-@ |
|||
| ? | (6710-81-8061) | ANEROID CONTROL A.,(SEE FIG.415) | 1 | SN: 145079-157692 |
|||
| ? | □6710-81-8060 | ANEROID CONTROL A.,(SEE FIG.415) | 1 | SN: 138577-145078 |
|||
| ? | (6710-81-8011) | ANEROID CONTROL A.,(SEE FIG.415) | 1 | SN: 112257-138576 |
|||
| ? | ▩6710-81-8010 | ANEROID CONTROL A.,(SEE FIG.415) | 1 | SN: 102754-112256 |
|||
| ? | (6710-81-8011{6710-71-9671)} | ||||||
| ? | 02010-70625 | BOLT | 2 | SN: 102754-@ |
|||
| ? | 01602-00929 | WASHER | 2 | SN: 102754-@ |
|||
| ? | 6710-71-9190 | TUBE | 1 | SN: 102754-@ |
|||
| ? | 6710-71-9620 | ELBOW | 2 | SN: 102754-@ |
|||
| ? | 07102-20518 | HOSE | 1 | SN: 155099-@ |
|||
| ? | 02750-04070 | HOSE | 1 | SN: 102754-155098 |
|||
| ? | 6710-71-9690 | HOSE | 1 | SN: 127581-157692 |
|||
| ? | 6710-71-9671 | HOSE | 1 | SN: 112257-127580 |
|||
| ? | 6710-71-9670 | HOSE | 1 | SN: 102754-112256 |
|||
| ? | 02700-30804 | ELBOW | 1 | SN: 102754-112256 |
|||
| ? | 6710-71-9671 | HOSE | 1 | SN: 112257-@ |
|||
| ? | 6710-71-9670 | HOSE | 1 | SN: 102754-112256 |
|||
| ? | 6710-71-9640 | ADAPTER | 1 | SN: 102754-@ |
|||
| ? | 02700-30802 | ELBOW | 1 | SN: 102754-@ |
|||
| ? | 6610-71-8250 | CLIP | 4 | SN: 102756-@ |
|||
| ? | 6610-71-8251 | CLIP | 2 | SN: 102754-102755 |
|||
| ? | 02010-20425 | BOLT | 2 | SN: 102756-@ |
|||
| ? | 02205-10406 | NUT | 2 | SN: 102756-@ |
|||
| ? | 02310-10916 | WASHER | 2 | SN: 102756-@ |
|||
| ? | 02300-10920 | WASHER | 4 | SN: 102756-@ |
|||
| ? | 6710-71-8240 | CLIP | 2 | SN: 102754-@ |
|||
| ? | (6691-51-9980) | PLATE | 1 | SN: .-155098 |
|||
| ? | 6600-01-5950 | CLIP | 1 | SN: 102754-. |
|||
| ? | 01010-30820 | BOLT | 1 | SN: 102754-@ |
|||
| ? | 01602-00825 | WASHER | 1 | SN: 102754-@ |
