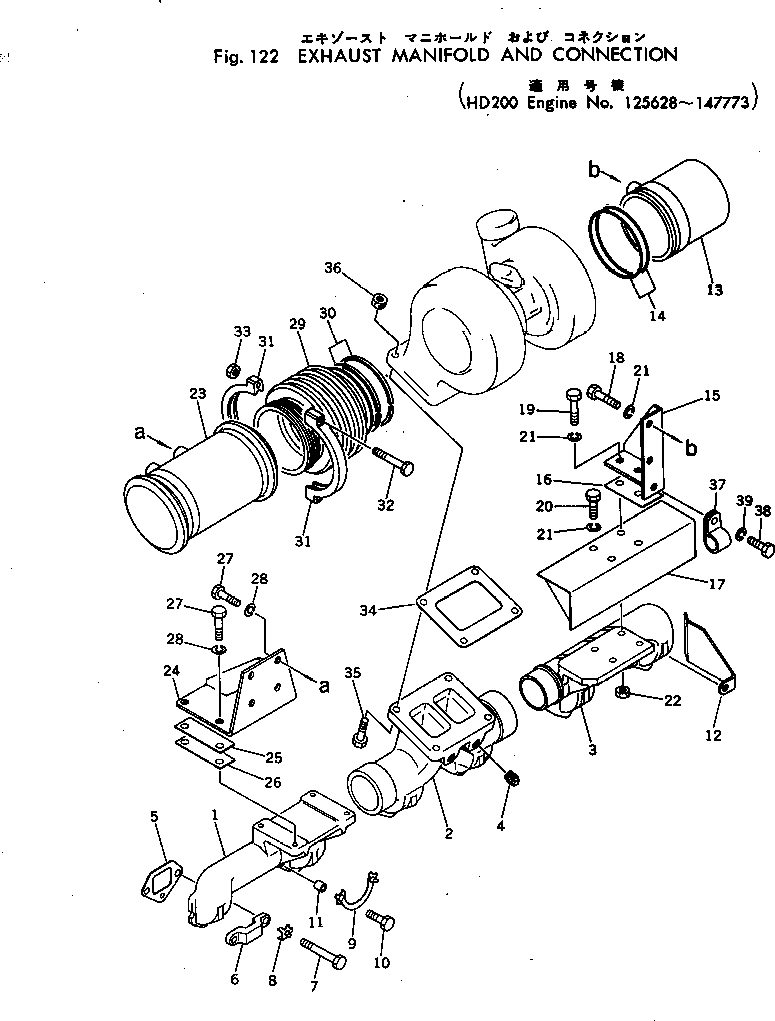

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6686-12-5110 | MANIFOLD | 1 | SN: 125628-@ |
|||
| ? | 6710-12-5120 | MANIFOLD | 1 | SN: 125628-@ |
|||
| ? | 6667-11-5120 | MANIFOLD | 1 | SN: 125628-147773 |
|||
| ? | 02720-10607 | PLUG | 2 | SN: 125628-@ |
|||
| ? | 6685-11-5811 | GASKET (KIT) | 6 | SN: .-@ |
|||
| ? | □6685-11-5810 | GASKET (KIT) | 6 | SN: 125628-. |
|||
| ? | 6610-11-5211 | CLAMP | 2 | SN: 125628-@ |
|||
| ? | 02010-40795 | BOLT | 4 | SN: 125628-@ |
|||
| ? | 6610-11-5220 | PLATE (KIT) | 2 | SN: 125628-@ |
|||
| ? | 6685-11-5220 | PLATE (KIT) | 5 | SN: 125628-@ |
|||
| ? | 02010-50738 | BOLT | 8 | SN: 125628-@ |
|||
| ? | 6685-11-5230 | WASHER | 8 | SN: 125628-@ |
|||
| ? | 6685-11-5421 | SHIELD | 1 | SN: 125628-147773 |
|||
| ? | 6668-11-4810 | PIPE | 1 | SN: 125628-147773 |
|||
| ? | 6127-11-4460 | O-RING (KIT) | 2 | SN: 125628-147773 |
|||
| ? | 6668-11-4820 | BRACKET | 1 | SN: 125628-147773 |
|||
| ? | 6685-10-5910 | SHIM ASS'Y | 2 | SN: 125628-147773 |
|||
| ? | 6668-11-5410 | PLATE | 1 | SN: 125628-147773 |
|||
| ? | 01010-51235 | BOLT | 2 | SN: 125628-147773 |
|||
| ? | 01050-61230 | BOLT | 2 | SN: 125628-147773 |
|||
| ? | 01050-61230 | BOLT | 2 | SN: 125628-147773 |
|||
| ? | 01602-21236 | WASHER | 6 | SN: 125628-147773 |
|||
| ? | 01582-21210 | NUT | 4 | SN: 125628-147773 |
|||
| ? | 6668-11-5540 | PIPE | 1 | SN: 125628-147773 |
|||
| ? | 6668-11-5560 | BRACKET | 1 | SN: 125628-147773 |
|||
| ? | 6667-11-5560 | SHIM | 1 | SN: 125628-147773 |
|||
| ? | 6667-11-5550 | SHIM | 1 | SN: 125628-147773 |
|||
| ? | 01010-61230 | BOLT | 4 | SN: 125628-147773 |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 125628-147773 |
|||
| ? | 6667-11-5530 | JOINT | 1 | SN: 125628-147773 |
|||
| ? | 6128-81-2830 | RING | 2 | SN: 125628-147773 |
|||
| ? | 6657-11-5590 | CLAMP | 2 | SN: 125628-147773 |
|||
| ? | 01010-50880 | BOLT | 2 | SN: 125628-147773 |
|||
| ? | 01580-20806 | NUT | 4 | SN: 125628-147773 |
|||
| ? | 6127-81-2810 | GASKET (KIT) | 1 | SN: 125628-@ |
|||
| ? | 6128-81-2910 | BOLT | 4 | SN: 125628-@ |
|||
| ? | 6710-81-2920 | NUT | 4 | SN: 125628-@ |
|||
| ? | 6685-83-9730 | CLIP | 1 | SN: 125628-147773 |
|||
| ? | 01010-30816 | BOLT | 1 | SN: 125628-@ |
|||
| ? | 01602-00825 | WASHER | 1 | SN: 125628-@ |
