| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

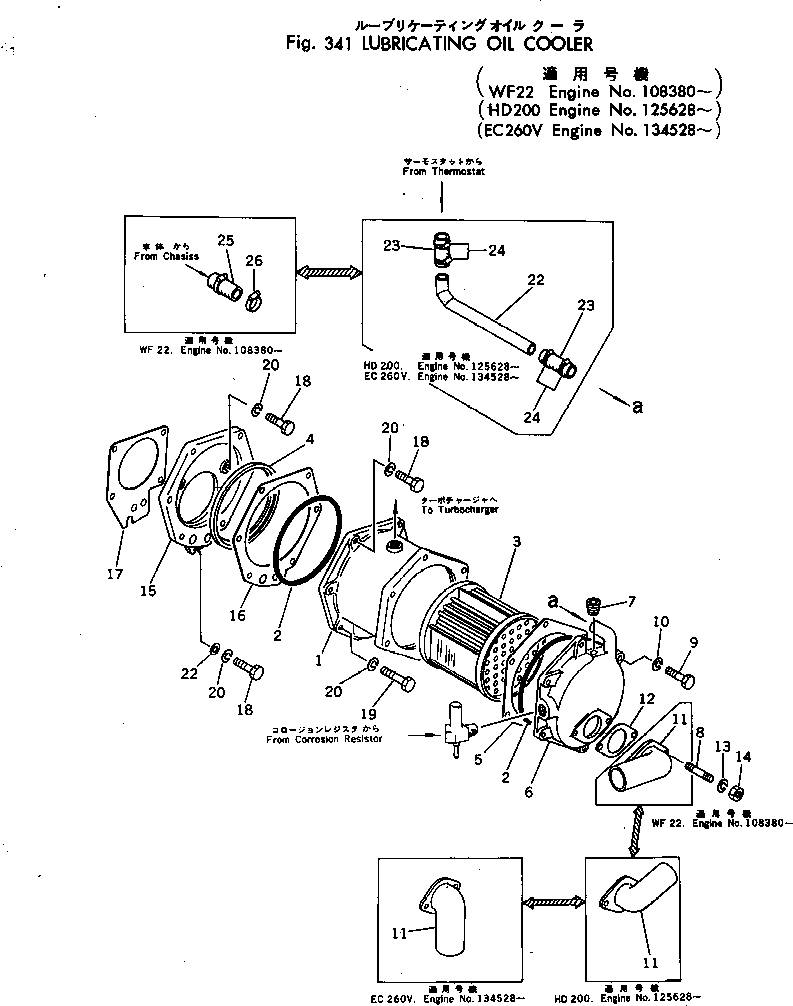

| ? | 6685-61-5011 | OIL COOLER ASS'Y | 1 | SN: 108380- |
|||
| ? | 6668-61-5100 | OIL COOLER ASS'Y,(LARGE CAPACITY) | 1 | SN: 108380- |
|||
| ? | 6685-61-5111 | • HOUSING | 1 | SN: 108380- |
|||
| ? | 6685-61-5130 | • O-RING (KIT) | 2 | SN: 108380- |
|||
| ? | 6685-61-5302 | • ELEMENT | 1 | SN: 108380- |
|||
| ? | 6668-61-5300 | • ELEMENT,(LARGE CAPACITY) | 1 | SN: 108380- |
|||
| ? | 6685-61-5140 | • RETAINER | 1 | SN: 108380- |
|||
| ? | 6685-61-5121 | • GASKET (KIT) | 1 | SN: 108380- |
|||
| ? | 6667-61-5020 | COVER ASS'Y | 1 | SN: 108380- |
|||
| ? | 6685-61-5510 | • COVER | 1 | SN: 108380- |
|||
| ? | 02720-10406 | • PLUG | 1 | SN: 108380- |
|||
| ? | 01100-31025 | • STUD | 2 | SN: 108380- |
|||
| ? | 02010-20632 | BOLT | 6 | SN: 108380- |
|||
| ? | 02310-01224 | WASHER | 6 | SN: 108380- |
|||
| ? | 6668-61-6261 | CONNECTOR | 1 | SN: 125628- |
|||
| ? | 6686-61-6270 | GASKET (KIT) | 1 | SN: 108380- |
|||
| ? | 01602-21030 | WASHER | 2 | SN: 108380- |
|||
| ? | 01582-01008 | NUT | 2 | SN: 108380- |
|||
| ? | 6685-61-5530 | SUPPORT | 1 | SN: 108380- |
|||
| ? | 6685-61-5542 | GASKET (KIT) | 1 | SN: 108380- |
|||
| ? | 6610-61-5811 | GASKET (KIT) | 1 | SN: 108380- |
|||
| ? | 02010-30632 | BOLT | 6 | SN: 108380- |
|||
| ? | 02010-30644 | BOLT | 2 | SN: 108380- |
|||
| ? | 02310-01224 | WASHER | 8 | SN: 108380- |
|||
| ? | 02300-01320 | WASHER | 1 | SN: 108380- |
|||
| ? | 6668-61-6510 | PIPE | 1 | SN: 125528- |
|||
| ? | 6610-61-6531 | HOSE | 2 | SN: 125628- |
|||
| ? | 07281-00489 | CLAMP | 4 | SN: 125628- |
