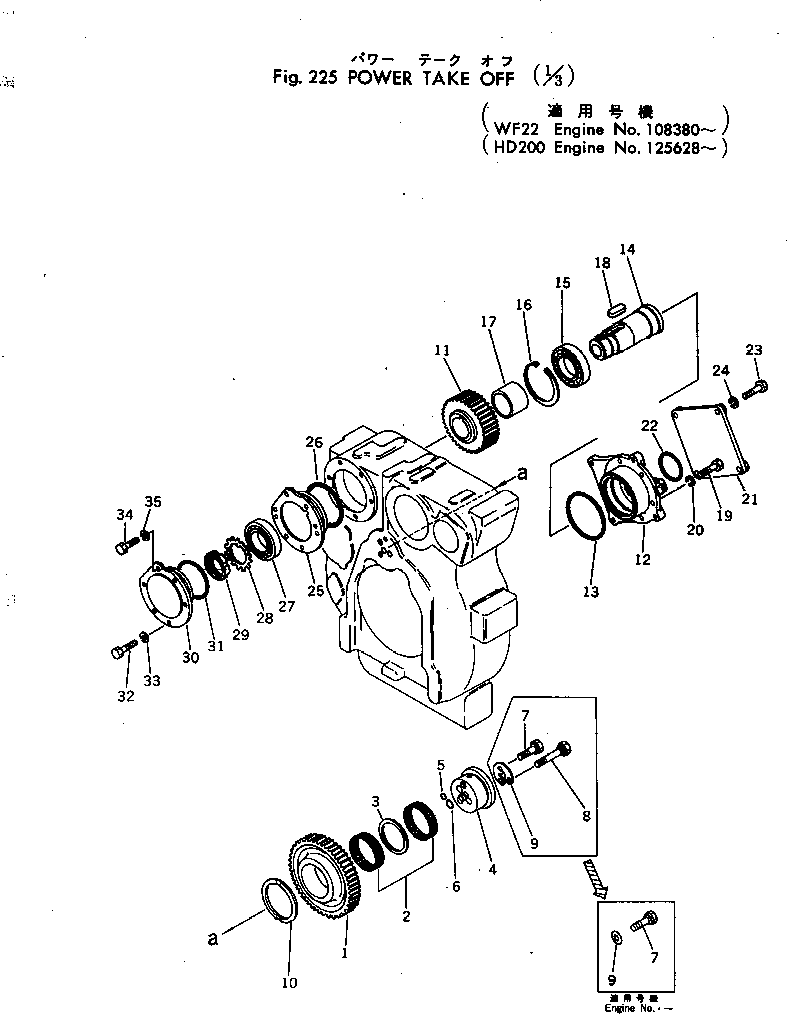

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6667-21-4020 | IDLER GEAR ASS'Y | 1 | SN: 108380- |
|||
| ? | 6667-21-4320 | • GEAR | 1 | SN: 108380- |
|||
| ? | 6657-22-4350 | • BEARING | 2 | SN: 108380- |
|||
| ? | 6667-21-4330 | • COLLAR | 1 | SN: 108380- |
|||
| ? | 6667-21-4310 | SHAFT | 1 | SN: 108380- |
|||
| ? | 07000-62010 | O-RING (KIT) | 1 | SN: 108380- |
|||
| ? | 07000-62015 | O-RING (KIT) | 2 | SN: 108380- |
|||
| ? | 6631-21-4380 | BOLT | 1 | SN: 108380-. |
|||
| ? | 6631-21-4381 | BOLT | 3 | SN: .- |
|||
| ? | 6631-21-4360 | BOLT | 1 | SN: 108380-. |
|||
| ? | 6631-21-4390 | PLATE (KIT) | 1 | SN: 108380-. |
|||
| ? | 6610-31-3331 | WASHER | 3 | SN: .- |
|||
| ? | 6667-21-4340 | BEARING | 1 | SN: 108380- |
|||
| ? | 6631-21-4520 | GEAR | 1 | SN: 108380- |
|||
| ? | 6658-21-4531 | CASE | 1 | SN: 125628- |
|||
| ? | 6667-21-4630 | O-RING (KIT) | 1 | SN: 108380- |
|||
| ? | 6658-21-4510 | SHAFT | 1 | SN: 125638- |
|||
| ? | 06000-06214 | BEARING | 1 | SN: 108380- |
|||
| ? | 04065-01240 | RING | 1 | SN: 108380- |
|||
| ? | 6631-21-4550 | SPACER | 1 | SN: 108380- |
|||
| ? | 04000-01850 | KEY | 1 | SN: 108380- |
|||
| ? | 01010-31230 | BOLT | 6 | SN: 108380- |
|||
| ? | 01602-01236 | WASHER | 6 | SN: 108380- |
|||
| ? | 6631-21-4540 | COVER | 1 | SN: 108380- |
|||
| ? | 07000-62085 | O-RING (KIT) | 1 | SN: 108380- |
|||
| ? | 01010-31245 | BOLT | 4 | SN: 108380- |
|||
| ? | 01602-01236 | WASHER | 4 | SN: 108380- |
|||
| ? | 6631-21-4581 | CASE | 1 | SN: 108380- |
|||
| ? | 6667-21-4670 | O-RING (KIT) | 1 | SN: 125638- |
|||
| ? | 06001-00213 | BEARING | 1 | SN: 108380- |
|||
| ? | 01658-16223 | WASHER (KIT) | 1 | SN: 108380- |
|||
| ? | 01530-16214 | NUT | 1 | SN: 108380- |
|||
| ? | 6631-21-4561 | COVER | 1 | SN: 108380- |
|||
| ? | 07000-65110 | O-RING (KIT) | 1 | SN: 108380- |
|||
| ? | 01010-31240 | BOLT | 4 | SN: 108380- |
|||
| ? | 01602-11236 | WASHER | 4 | SN: 108380- |
|||
| ? | 01010-31235 | BOLT | 2 | SN: 108380- |
|||
| ? | 01650-21212 | WASHER (KIT) | 2 | SN: 108380- |
