| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

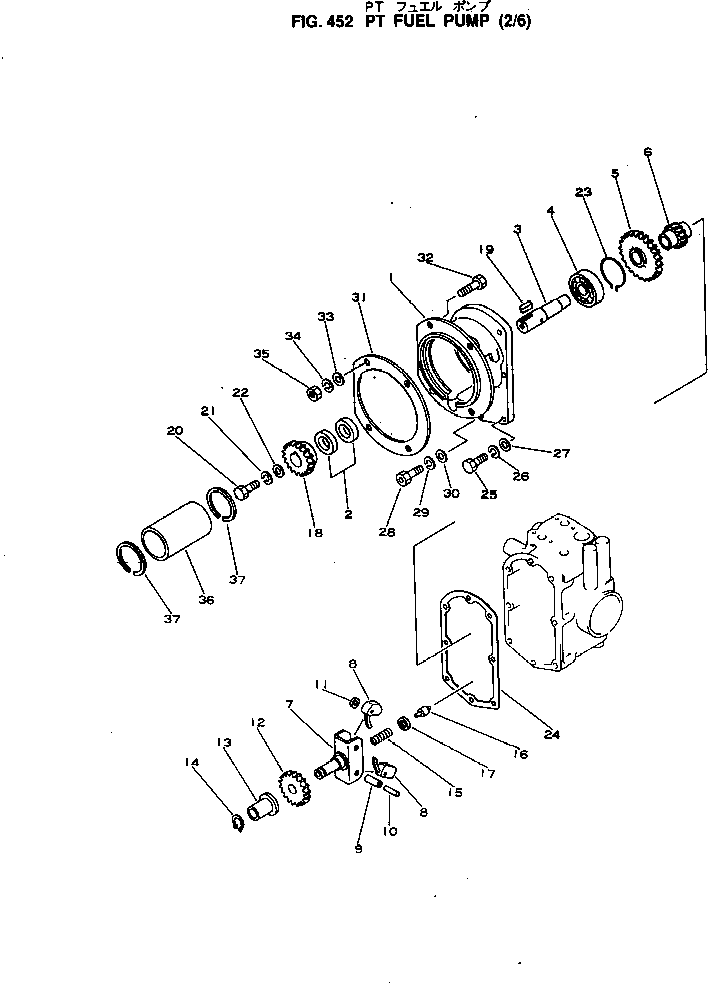

| ? | 6693-73-1001 | PT FUEL PUMP ASS'Y,(GR-J121) | 1 | SN: 139523- |
|||
| ? | □6693-73-1000 | PT FUEL PUMP ASS'Y,(GR-J121) | 1 | SN: 134677-139522 |
|||
| ? | 6610-71-2020 | • GOVERNOR ASS'Y | 1 | SN: 134677- |
|||
| ? | 6610-71-2030 | • • COVER ASS'Y | 1 | SN: 134677- |
|||
| ? | ☆ | • • • COVER,FRONT | 1 | SN: 134677- |
|||
| ? | 6610-71-2320 | • • • SEAL,OIL (K6) | 2 | SN: 134677- |
|||
| ? | 6610-71-2040 | • • DRIVE ASS'Y | 1 | SN: 134677- |
|||
| ? | 6610-71-2330 | • • • SHAFT,DRIVE | 1 | SN: 134677- |
|||
| ? | 6600-01-1240 | • • • BEARING | 1 | SN: 134677- |
|||
| ? | 6610-71-2340 | • • • GEAR,PUMP DRIVE | 1 | SN: 134677- |
|||
| ? | 6610-71-2350 | • • • GEAR,TACHOMETER DRIVE | 1 | SN: 134677- |
|||
| ? | 6610-71-2011 | • • WEIGHT CARRIER A. | 1 | SN: 139523- |
|||
| ? | □6610-71-2010 | • • WEIGHT CARRIER A. | 1 | SN: 134677-139522 |
|||
| ? | 6610-71-2051 | • • • CARRIER ASS'Y | 1 | SN: 139523- |
|||
| ? | □6610-71-2050 | • • • CARRIER ASS'Y | 1 | SN: 134677-139522 |
|||
| ? | ☆ | • • • • CARRIER ASS'Y | 1 | SN: 139523- |
|||
| ? | ☆ | • • • • CARRIER ASS'Y | 1 | SN: 134677-139522 |
|||
| ? | ☆ | • • • • • SHAFT | 1 | SN: 139523- |
|||
| ? | ☆ | • • • • • SHAFT | 1 | SN: 134677-139522 |
|||
| ? | ☆ | • • • • • CARRIER | 1 | SN: 139523- |
|||
| ? | ☆ | • • • • • CARRIER | 1 | SN: 134677-139522 |
|||
| ? | ☆ | • • • • • WIRE | 1 | SN: 134677- |
|||
| ? | 6610-71-2250 | • • • • WEIGHT,GOVERNOR | 2 | SN: 134677- |
|||
| ? | 6610-71-2260 | • • • • SHAFT,WEIGHT | 2 | SN: 134677- |
|||
| ? | 6610-71-2270 | • • • • PIN,PIVOT | 2 | SN: 134677- |
|||
| ? | 6610-71-2280 | • • • • WASHER,THRUST | 4 | SN: 134677- |
|||
| ? | 6610-71-2110 | • • • • GEAR,DRIVE | 1 | SN: 134677- |
|||
| ? | 6610-71-2121 | • • • BUSHING | 1 | SN: 134677- |
|||
| ? | 6610-71-2131 | • • • RING,SNAP | 1 | SN: 134677- |
|||
| ? | 6610-71-2140 | • • • SPRING,WEIGHT ASSIST | 1 | SN: 134677- |
|||
| ? | 6610-71-2150 | • • • PLUNGER,WEIGHT ASSIST | 1 | SN: 134677- |
|||
| ? | 6610-71-2160 | • • • SHIM | 4 | SN: 134677- |
|||
| ? | 6610-71-2380 | • • COUPLING,HALF | 1 | SN: 134677- |
|||
| ? | 6610-71-2370 | • • KEY | 1 | SN: 134677- |
|||
| ? | 02030-20619 | • • BOLT | 1 | SN: 134677- |
|||
| ? | 02310-11224 | • • WASHER,SPRING | 1 | SN: 134677- |
|||
| ? | 02300-11320 | • • WASHER | 1 | SN: 134677- |
|||
| ? | 6610-71-2360 | • • RING,SNAP | 1 | SN: 134677- |
|||
| ? | 6610-71-2410 | • GASKET (K6) | 1 | SN: 134677- |
|||
| ? | 02010-20432 | • BOLT | 6 | SN: 134677- |
|||
| ? | 02310-10916 | • WASHER,SPRING | 6 | SN: 134677- |
|||
| ? | 6610-71-1840 | • WASHER | 6 | SN: 134677- |
|||
| ? | 02100-00332 | • BOLT | 1 | SN: 134677- |
|||
| ? | 02310-10814 | • WASHER,SPRING | 1 | SN: 134677- |
|||
| ? | 02300-10716 | • WASHER | 1 | SN: 134677- |
|||
| ? | 6610-71-7821 | • GASKET (K6) | 1 | SN: 134677- |
|||
| ? | 02010-20744 | • BOLT | 3 | SN: 134677- |
|||
| ? | 6600-01-2280 | • BOLT | 1 | SN: 134677- |
|||
| ? | 02300-11520 | • WASHER | 4 | SN: 134677- |
|||
| ? | 02310-11428 | • WASHER,SPRING | 4 | SN: 134677- |
|||
| ? | 02206-10707 | • NUT | 4 | SN: 134677- |
|||
| ? | 6610-71-7710 | • COUPLING | 1 | SN: 134677- |
|||
| ? | 6610-71-7720 | • RING,SNAP | 2 | SN: 134677- |
