| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

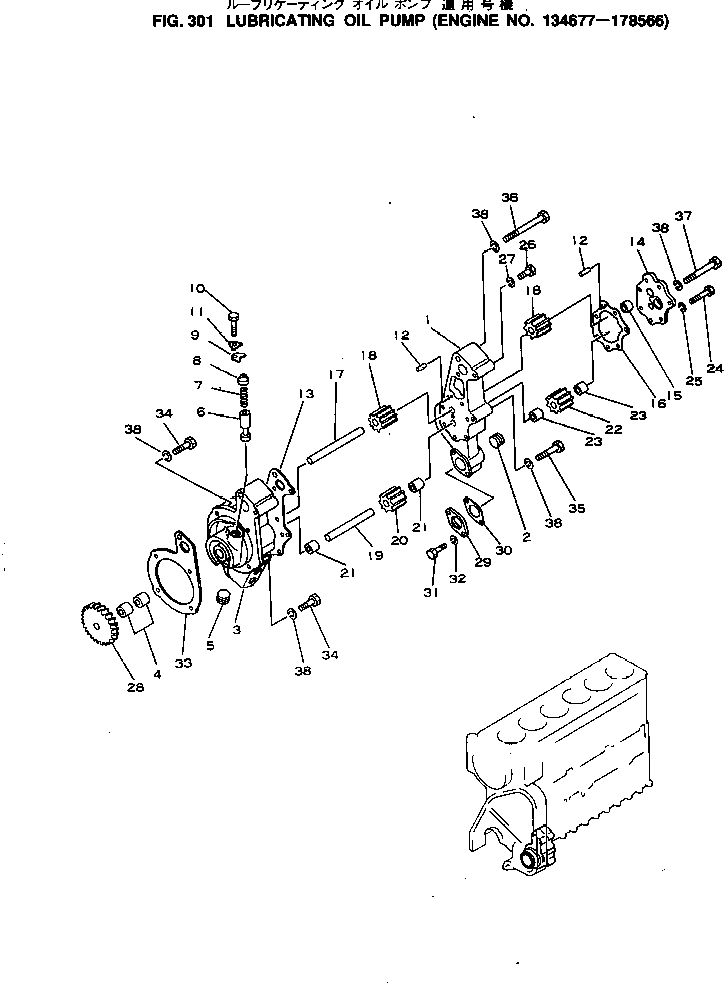

| ? | 6620-51-1021 | OIL PUMP ASS'Y | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1210 | • BODY | 1 | SN: 134677-178566 |
|||
| ? | 02720-21213 | • PLUG | 3 | SN: .-178566 |
|||
| ? | 02720-21213 | • PLUG | 1 | SN: 134677-. |
|||
| ? | 6620-51-3030 | • BODY ASS'Y | 1 | SN: 134677-178566 |
|||
| ? | ☆ | • • BODY | 1 | SN: 134677-178566 |
|||
| ? | ☆ | • • BUSHING | 1 | SN: 134677-178566 |
|||
| ? | 02720-21213 | • • PLUG | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1710 | • PLUNGER,REGULATOR | 1 | SN: 134677-@ |
|||
| ? | 6610-51-1720 | • SPRING | 1 | SN: 134677-@ |
|||
| ? | 6610-51-1740 | • PLUG | 1 | SN: 134677-@ |
|||
| ? | 6610-51-1730 | • RETAINER | 1 | SN: 134677-@ |
|||
| ? | 02010-20622 | • BOLT | 1 | SN: 134677-@ |
|||
| ? | 6610-51-1750 | • PLATE,LOCK | 1 | SN: 134677-@ |
|||
| ? | 02400-10619 | • PIN | 2 | SN: 134677-@ |
|||
| ? | 6610-51-1610 | • GASKET | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1500 | • COVER ASS'Y | 1 | SN: 134677-@ |
|||
| ? | ☆ | • • COVER | 1 | SN: 134677-@ |
|||
| ? | ☆ | • • BUSHING | 1 | SN: 134677-@ |
|||
| ? | 6610-51-1620 | • GASKET | 1 | SN: 134677-@ |
|||
| ? | 6610-51-1321 | • SHAFT,DRIVE | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1340 | • GEAR,DRIVE | 2 | SN: 134677-178566 |
|||
| ? | 6610-51-1330 | • SHAFT,IDLER | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1300 | • GEAR ASS'Y | 1 | SN: 134677-178566 |
|||
| ? | ☆ | • • GEAR | 1 | SN: 134677-178566 |
|||
| ? | ☆ | • • BUSHING | 2 | SN: 134677-178566 |
|||
| ? | 6610-51-1400 | • GEAR ASS'Y | 1 | SN: 134677-178566 |
|||
| ? | ☆ | • • GEAR | 1 | SN: 134677-178566 |
|||
| ? | ☆ | • • BUSHING | 2 | SN: 134677-178566 |
|||
| ? | 02010-20676 | • BOLT | 6 | SN: 134677-178566 |
|||
| ? | 02310-11224 | • WASHER,SPRING | 6 | SN: 134677-@ |
|||
| ? | 02010-30564 | • BOLT | 2 | SN: 134677-@ |
|||
| ? | 02310-11020 | • WASHER,SPRING | 2 | SN: 134677-@ |
|||
| ? | 6620-51-1380 | • GEAR,MAIN DRIVE | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1640 | FLANGE,SCAVENGING | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1650 | GASKET (K2) | 1 | SN: 134677-178566 |
|||
| ? | 02010-20632 | BOLT | 2 | SN: 134677-178566 |
|||
| ? | 02310-11224 | WASHER,SPRING | 2 | SN: 134677-178566 |
|||
| ? | 6610-51-1811 | GASKET (K2) | 1 | SN: 134677-@ |
|||
| ? | 02030-20725 | BOLT | 2 | SN: 134677-@ |
|||
| ? | 02030-20770 | BOLT | 1 | SN: 134677-@ |
|||
| ? | 6600-01-2120 | BOLT | 1 | SN: 134677-178566 |
|||
| ? | 6610-51-1630 | BOLT | 1 | SN: 134677-178566 |
|||
| ? | 02310-11428 | WASHER,SPRING | 5 | SN: 134677-178566 |
