| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

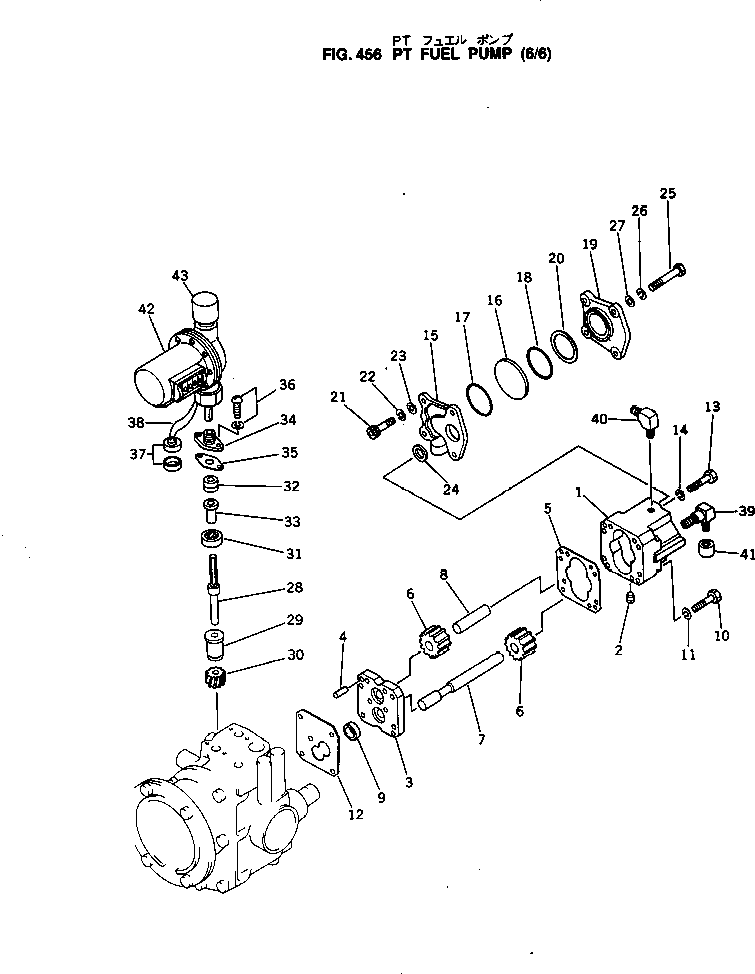

| ? | 6657-72-1004 | PT FUEL PUMP ASS'Y,(GR-J077) | 1 | SN: 139523- |
|||
| ? | □6657-72-1003 | PT FUEL PUMP ASS'Y,(GR-J077) | 1 | SN: 101692-139522 |
|||
| ? | 6657-72-1002 | PT FUEL PUMP ASS'Y,(GR-J077) | 1 | SN: 101674-101691 |
|||
| ? | 6657-72-1001 | PT FUEL PUMP ASS'Y,(GR-J063) | 1 | SN: 25762-101673 |
|||
| ? | 6620-71-2073 | • GEAR PUMP ASS'Y | 1 | SN: 144160- |
|||
| ? | ▩6620-71-2072 | • GEAR PUMP ASS'Y | 1 | SN: 101674-144159 |
|||
| ? | (6620-71-2073{02100-00464(2))} | ||||||
| ? | 6620-71-2070 | • GEAR PUMP ASS'Y | 1 | SN: 25762-101673 |
|||
| ? | ☆ | • • HOUSING ASS'Y | 1 | SN: 144160- |
|||
| ? | ☆ | • • HOUSING ASS'Y | 1 | SN: 101674-144159 |
|||
| ? | ☆ | • • HOUSING ASS'Y | 1 | SN: 25762-101673 |
|||
| ? | ☆ | • • • HOUSING | 1 | SN: 144160- |
|||
| ? | ☆ | • • • HOUSING | 1 | SN: 101674-144159 |
|||
| ? | ☆ | • • • HOUSING | 1 | SN: 25762-101673 |
|||
| ? | 02720-40204 | • • PLUG | 1 | SN: 144160- |
|||
| ? | 02720-20204 | • • PLUG | 1 | SN: 101674-144159 |
|||
| ? | ☆ | • • • COVER | 1 | SN: 101674- |
|||
| ? | ☆ | • • • COVER | 1 | SN: 25762-101673 |
|||
| ? | 02400-20625 | • • • PIN,DOWEL | 2 | SN: 25762- |
|||
| ? | 6610-71-2541 | • • GASKET (K6) | 1 | SN: 25762- |
|||
| ? | ☆ | • • GEAR | 2 | SN: .- |
|||
| ? | ☆ | • • GEAR | 2 | SN: 25762-. |
|||
| ? | ☆ | • • SHAFT,DRIVE | 1 | SN: 25762- |
|||
| ? | ☆ | • • SHAFT,IDLER | 1 | SN: 101674- |
|||
| ? | ☆ | • • SHAFT,IDLER | 1 | SN: 25762-101673 |
|||
| ? | 6610-71-2530 | • • RING,DOWEL | 1 | SN: 25762- |
|||
| ? | 02100-00464 | • • BOLT | 2 | SN: 144160- |
|||
| ? | 02100-00457 | • • BOLT | 2 | SN: 101674-144159 |
|||
| ? | 6610-71-1230 | • • WASHER,SPRING | 2 | SN: 101674- |
|||
| ? | 6600-01-2730 | • • WASHER,SPRING | 2 | SN: 25762-101673 |
|||
| ? | 6610-71-2811 | • GASKET (K6) | 1 | SN: 101674- |
|||
| ? | 6610-71-2810 | • GASKET (K6) | 1 | SN: 25762-101673 |
|||
| ? | 02100-00464 | • BOLT | 4 | SN: 25762-144159 |
|||
| ? | 6610-71-1230 | • WASHER,SPRING | 4 | SN: 25762- |
|||
| ? | 6610-71-2090 | • DAMPER ASS'Y,PULSATION | 1 | SN: 25762- |
|||
| ? | 6610-71-2710 | • • BODY,DAMPER | 1 | SN: 25762- |
|||
| ? | 6610-71-2731 | • • DIAPHRAGM | 1 | SN: .- |
|||
| ? | □6610-71-2730 | • • DIAPHRAGM | 1 | SN: 25762-. |
|||
| ? | 6610-71-2741 | • • RING (K6) | 1 | SN: 25762- |
|||
| ? | 6610-71-2771 | • • RING (K6) | 1 | SN: 25762- |
|||
| ? | 6610-71-2720 | • • COVER,DAMPER | 1 | SN: 25762- |
|||
| ? | 6610-71-2760 | • • WASHER,NYLON | 1 | SN: 25762- |
|||
| ? | 02100-00432 | • • BOLT | 2 | SN: 25762- |
|||
| ? | 6610-71-1230 | • • WASHER,SPRING | 2 | SN: 25762- |
|||
| ? | 6610-71-1840 | • • WASHER | 2 | SN: 25762- |
|||
| ? | 6610-71-2750 | • • SEAL (K6) | 2 | SN: 25762- |
|||
| ? | 6600-01-2150 | • BOLT | 2 | SN: 25762- |
|||
| ? | 6610-71-1230 | • WASHER,SPRING | 2 | SN: 25762- |
|||
| ? | 6610-71-1840 | • WASHER | 2 | SN: 25762- |
|||
| ? | 6610-71-1081 | • DRIVE ASS'Y,SERVICE METER | 1 | SN: 148091- |
|||
| ? | □6610-71-1080 | • DRIVE ASS'Y,SERVICE METER | 1 | SN: 25762-148090 |
|||
| ? | 6610-71-1611 | • • SHAFT | 1 | SN: 148091- |
|||
| ? | □6610-71-1610 | • • SHAFT | 1 | SN: 25762-148090 |
|||
| ? | 6610-71-1620 | • • BUSHING | 1 | SN: 25762- |
|||
| ? | 6610-71-1630 | • • GEAR | 1 | SN: 25762- |
|||
| ? | 6610-71-1911 | • SEAL,OIL (K6) | 1 | SN: 25762- |
|||
| ? | 6610-71-1960 | • WASHER,FELT (K6) | 1 | SN: 25762- |
|||
| ? | 6610-71-1970 | • SPACER | 1 | SN: 25762- |
|||
| ? | 6610-71-1920 | • HOUSING | 1 | SN: 25762- |
|||
| ? | 6610-71-1930 | • GASKET (K6) | 1 | SN: 25762- |
|||
| ? | 6610-71-1951 | • BOLT | 2 | SN: 25762- |
|||
| ? | 6610-71-1760 | • SEAL,LEAD | 1 | SN: 25762- |
|||
| ? | 6610-71-1771 | • WIRE,LOCK | 1 | SN: 25762- |
|||
| ? | 6610-71-2570 | • ELBOW | 1 | SN: 25762- |
|||
| ? | 6610-71-8190 | • ELBOW | 1 | SN: 101674- |
|||
| ? | 08684-00239 | METER,SERVICE | 1 | SN: .- |
|||
| ? | □6640-81-5110 | METER,SERVICE | 1 | SN: 25762-. |
