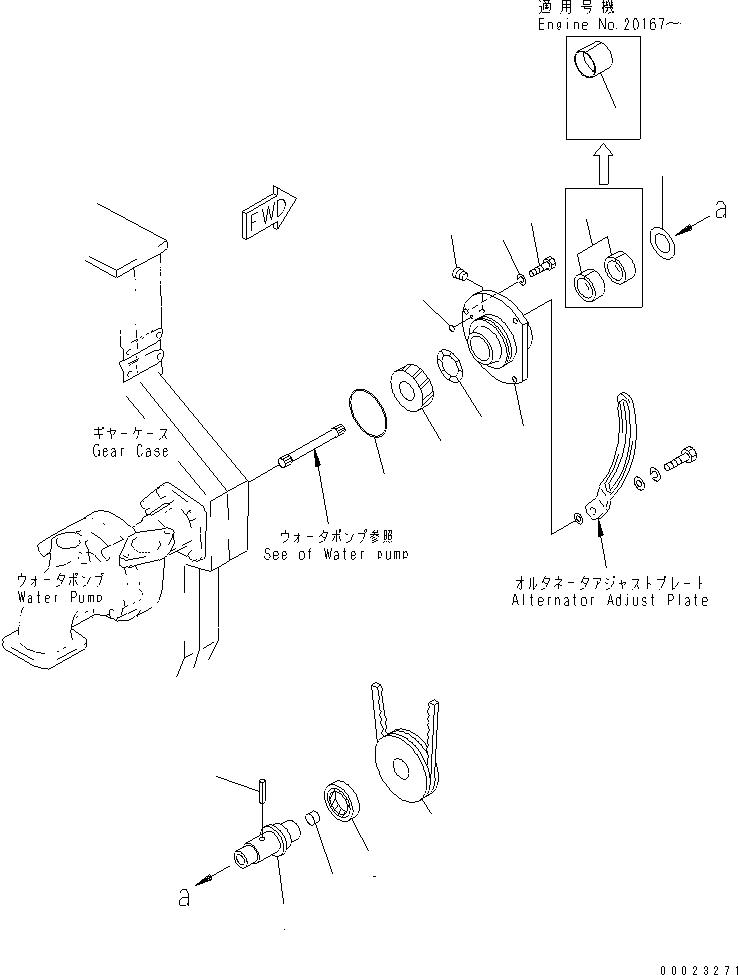

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6162-63-1702 | HOUSING ASS'Y | 1 | SN: 21069-22013 |
|||
| ? | □6162-63-1700 | HOUSING ASS'Y | 1 | SN: 11500-21068 |
|||
| ? | 6162-63-1712 | • HOUSING | 1 | SN: 21069-22013 |
|||
| ? | □6162-63-1711 | • HOUSING | 1 | SN: 20167-21068 |
|||
| ? | 6162-63-1710 | • HOUSING | 1 | SN: 11500-20166 |
|||
| ? | 6162-33-6121 | • BUSHING | 1 | SN: 20167-22013 |
|||
| ? | 6127-31-6221 | • BUSHING | 2 | SN: 11500-20166 |
|||
| ? | 07043-00108 | • PLUG | 1 | SN: 11500-22013 |
|||
| ? | 6162-63-1622 | • SHAFT | 1 | SN: 20167-22013 |
|||
| ? | 6162-63-1621 | • SHAFT | 1 | SN: 11500-20166 |
|||
| ? | 6162-63-1660 | • PLUG | 1 | SN: 11500-22013 |
|||
| ? | 04025-00524 | • PIN,SPRING | 1 | SN: 11500-22013 |
|||
| ? | 6162-33-6160 | • METAL,THRUST | 2 | SN: 20167-22013 |
|||
| ? | 6127-31-6261 | • METAL,THRUST | 2 | SN: 11500-20166 |
|||
| ? | 6162-63-1611 | • GEAR | 1 | SN: 20167-22013 |
|||
| ? | 6162-63-1610 | • GEAR | 1 | SN: 11500-20166 |
|||
| ? | 6162-63-1683 | • SEAL,OIL | 1 | SN: 20773-22013 |
|||
| ? | (☒6162-63-1681) | • SEAL,OIL | 1 | SN: (20773-21068) |
|||
| ? | 6162-63-1691 | • SEAL,OIL | 1 | SN: 14016-20772 |
|||
| ? | □6162-63-1690 | • SEAL,OIL | 1 | SN: 12863-14015 |
|||
| ? | ♦07012-20048 | • SEAL,OIL | 1 | SN: 11500-12862 |
|||
| ? | 07000-62095 | O-RING (K2) | 1 | SN: 11500-22013 |
|||
| ? | 07000-61009 | O-RING (K2) | 1 | SN: 15029-22013 |
|||
| ? | ♦07000-01009 | O-RING (K2) | 1 | SN: 11500-15028 |
|||
| ? | 01010-81030 | BOLT | 1 | SN: 17971-22013 |
|||
| ? | □01010-31030 | BOLT | 1 | SN: 11500-17970 |
|||
| ? | 01602-01030 | WASHER,SPRING | 1 | SN: 11500-22013 |
|||
| ? | 6162-83-1280 | PULLEY | 1 | SN: 11500-22013 |
