| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

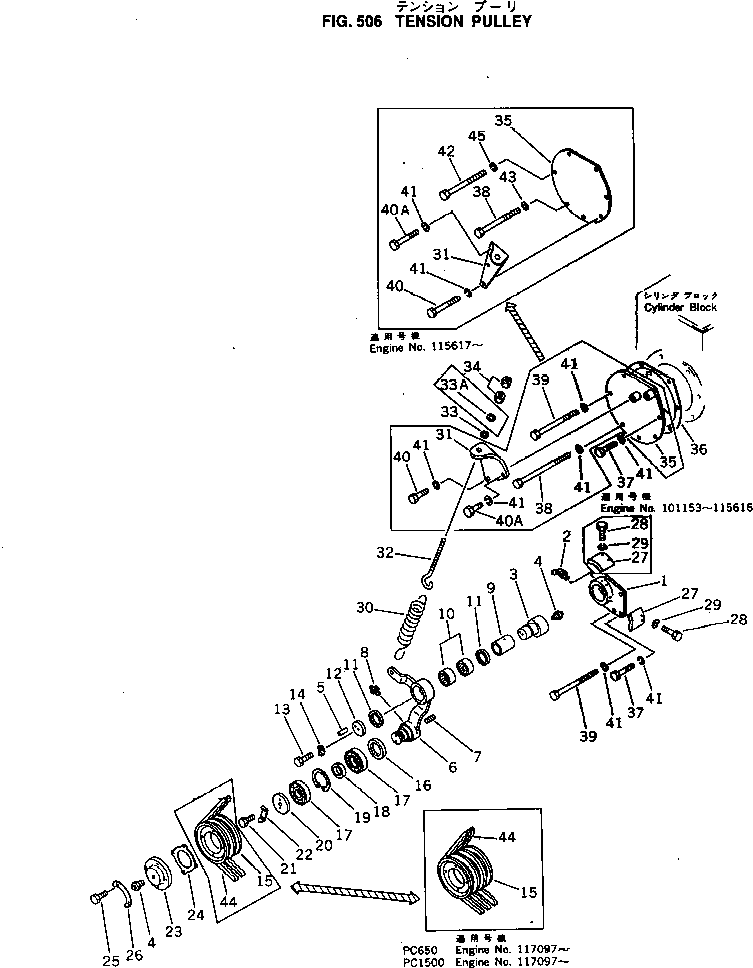

| ? | 6721-61-3601 | TENSION PULLEY ASS'Y | 1 | SN: 115617- |
|||
| ? | 6721-61-3600 | TENSION PULLEY ASS'Y | 1 | SN: 101153-115616 |
|||
| ? | 6721-61-3720 | • BRACKET | 1 | SN: 101153- |
|||
| ? | 07020-00675 | • FITTING | 1 | SN: 101153- |
|||
| ? | 6124-61-3721 | • SHAFT | 1 | SN: 101153- |
|||
| ? | 6127-61-3890 | • VALVE | 2 | SN: 101153- |
|||
| ? | 04020-00514 | • PIN | 1 | SN: 101153- |
|||
| ? | 6721-61-3771 | • LEVER | 1 | SN: 115617- |
|||
| ? | 6721-61-3770 | • LEVER | 1 | SN: 101153-115616 |
|||
| ? | 07043-00108 | • PLUG | 1 | SN: 101153- |
|||
| ? | 07020-00000 | • FITTING | 1 | SN: 101153- |
|||
| ? | 6127-61-3900 | • BEARING ASS'Y | 1 | SN: 101153- |
|||
| ? | 6127-61-3920 | • • RACE | 1 | SN: 101153- |
|||
| ? | 6127-61-3910 | • • BEARING | 2 | SN: 101153- |
|||
| ? | 06122-04504 | • SEAL | 2 | SN: 101153- |
|||
| ? | 6124-61-3780 | • WASHER | 1 | SN: 101153- |
|||
| ? | 01010-30820 | • BOLT | 1 | SN: 101153- |
|||
| ? | 01653-10808 | • WASHER | 1 | SN: 101153- |
|||
| ? | 6721-61-3760 | • PULLEY | 1 | SN: 101153- |
|||
| ? | 6127-61-3770 | • SEAL | 1 | SN: 101153- |
|||
| ? | 06000-06207 | • BEARING | 2 | SN: 101153- |
|||
| ? | 6721-61-3750 | • SPACER | 1 | SN: 101153- |
|||
| ? | 04065-07225 | • RING | 1 | SN: 101153- |
|||
| ? | 6127-61-3780 | • WASHER | 1 | SN: 101153- |
|||
| ? | 01010-30820 | • BOLT | 2 | SN: 101153- |
|||
| ? | 6127-61-3790 | • LOCK | 1 | SN: 101153- |
|||
| ? | 6721-61-3731 | • COVER | 1 | SN: .- |
|||
| ? | □6721-61-3730 | • COVER | 1 | SN: 101153-. |
|||
| ? | 6124-61-3740 | • GASKET | 1 | SN: 101153- |
|||
| ? | 01010-30818 | • BOLT | 4 | SN: 101153- |
|||
| ? | 6124-61-3790 | • LOCK | 2 | SN: 101153- |
|||
| ? | 6721-61-3740 | STOPPER | 1 | SN: 115617- |
|||
| ? | 6721-61-3740 | STOPPER | 2 | SN: 101153-115616 |
|||
| ? | 01010-30820 | BOLT | 2 | SN: 115617- |
|||
| ? | 01010-30820 | BOLT | 4 | SN: 101153-115616 |
|||
| ? | 01602-00825 | WASHER | 2 | SN: 115617- |
|||
| ? | 01602-00825 | WASHER | 4 | SN: 101153-115616 |
|||
| ? | 6721-61-3780 | SPRING | 1 | SN: 102333- |
|||
| ? | 6691-61-2750 | SPRING | 1 | SN: 101153-102332 |
|||
| ? | 6721-61-3830 | BRACKET | 1 | SN: 101153- |
|||
| ? | 6721-61-3831 | BRACKET | 1 | SN: 115617- |
|||
| ? | 6721-61-3810 | SCREW | 1 | SN: 101153- |
|||
| ? | 6124-61-3830 | WASHER | 1 | SN: 101153- |
|||
| ? | 01580-01210 | NUT | 2 | SN: 101153- |
|||
| ? | CU3200763 | COVER | 1 | SN: 115617- |
|||
| ? | 6721-21-3270 | BRACKET | 1 | SN: 101153-115616 |
|||
| ? | CU207082 | GASKET | 1 | SN: 115617- |
|||
| ? | 6721-21-3280 | GASKET | 1 | SN: 101153-115616 |
|||
| ? | 02010-70632 | BOLT | 4 | SN: 101153- |
|||
| ? | CU205276 | BOLT | 2 | SN: 115617- |
|||
| ? | 02011-70608 | BOLT | 2 | SN: 101153-115616 |
|||
| ? | 02010-70689 | BOLT | 4 | SN: 101153- |
|||
| ? | 02010-70657 | BOLT | 1 | SN: 115617- |
|||
| ? | 02011-70627 | BOLT | 1 | SN: 101153-115616 |
|||
| ? | 02011-70627 | BOLT | 1 | SN: 115617- |
|||
| ? | 01602-00929 | WASHER | 6 | SN: 115617- |
|||
| ? | 01602-00929 | WASHER | 11 | SN: 101153-115616 |
|||
| ? | 01602-00929 | WASHER | 7 | SN: 117097- |
|||
| ? | CU205199 | BOLT | 3 | SN: 115617- |
|||
| ? | CUS-604 | WASHER,SPRING | 5 | SN: 115617- |
|||
| ? | 04121-22554 | V-BELT SET | 1 | SN: .- |
|||
| ? | (600-736-8290) | V-BELT | 1 | SN: 101153-. |
