| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

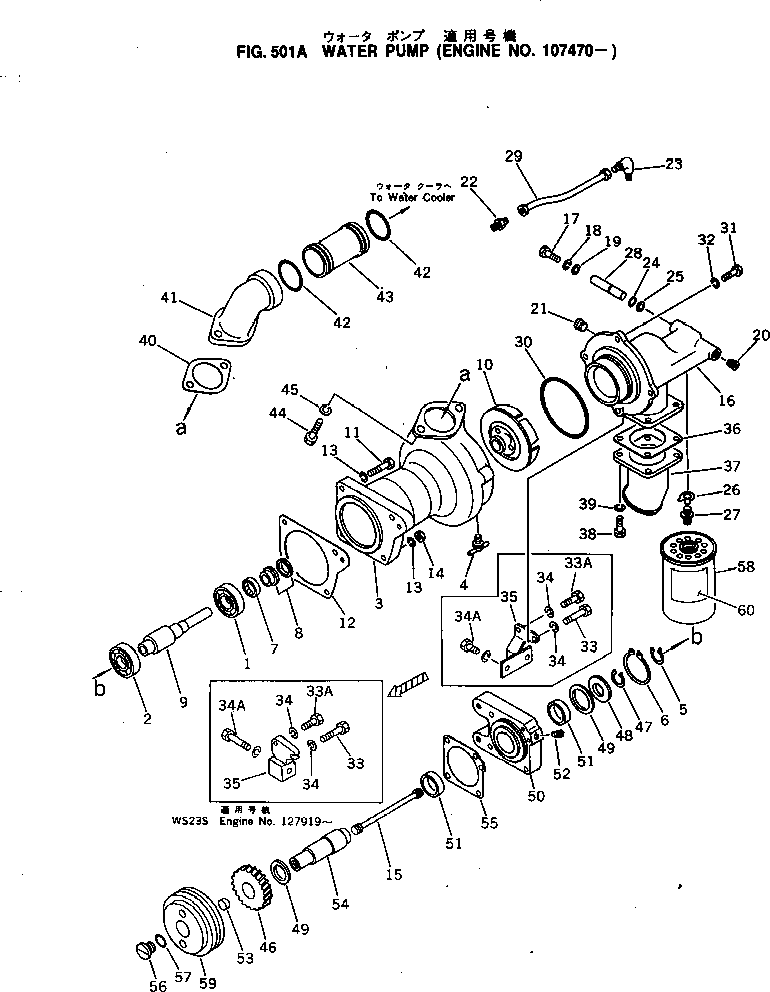

| ? | CU3011389 | WATER PUMP ASS'Y | 1 | SN: 107470- |
|||
| ? | 6710-61-1360 | • BEARING | 1 | SN: 107470- |
|||
| ? | CUS-16069 | • BEARING | 1 | SN: 107470- |
|||
| ? | CU206964 | • BODY | 1 | SN: 107470- |
|||
| ? | 6600-01-3920 | • VALVE | 1 | SN: 107470- |
|||
| ? | CU205258 | • RING | 1 | SN: 107470- |
|||
| ? | CU70183 | • RING | 1 | SN: .- |
|||
| ? | □6710-61-1130 | • RING | 1 | SN: 107470-. |
|||
| ? | CU206948 | • SEAL | 1 | SN: 107470- |
|||
| ? | CU3603094 | • SEAL ASS'Y | 1 | SN: .- |
|||
| ? | □CUAR-12732 | • SEAL ASS'Y | 1 | SN: 107470-. |
|||
| ? | CU205254 | • SHAFT | 1 | SN: 107470- |
|||
| ? | CU3008433 | • IMPELLER | 1 | SN: 107470- |
|||
| ? | CUS-181 | BOLT | 1 | SN: 107470- |
|||
| ? | 02010-20695 | BOLT | 2 | SN: 107470- |
|||
| ? | CU205233 | GASKET | 1 | SN: 107470- |
|||
| ? | 02310-01224 | WASHER,SPRING | 4 | SN: 107470- |
|||
| ? | CUS-205 | NUT | 1 | SN: 107470- |
|||
| ? | CU3022229 | SHAFT | 1 | SN: .- |
|||
| ? | □CU205259 | SHAFT | 1 | SN: 107470-. |
|||
| ? | CU3010529 | HOUSING ASS'Y | 1 | SN: 107470- |
|||
| ? | CU3010181 | • HOUSING | 1 | SN: 107470- |
|||
| ? | 02010-20419 | • BOLT | 1 | SN: 107470- |
|||
| ? | CUS-167-A | • BOLT | 1 | SN: 107470- |
|||
| ? | 02310-10916 | • WASHER,SPRING | 1 | SN: 107470- |
|||
| ? | CU146159 | • WASHER | 1 | SN: 107470- |
|||
| ? | 6685-82-9330 | • WASHER | 1 | SN: 107470- |
|||
| ? | 02720-10406 | • PLUG | 1 | SN: 107470- |
|||
| ? | 02720-01213 | • PLUG | 1 | SN: 107470- |
|||
| ? | CUS-1006-A | • CONNECTOR | 1 | SN: 107470- |
|||
| ? | CUS-1007-A | • ELBOW | 1 | SN: 107470- |
|||
| ? | CU70861 | • O-RING | 1 | SN: 107470- |
|||
| ? | CU205363 | • WASHER | 1 | SN: 107470- |
|||
| ? | CU206957 | • WASHER | 1 | SN: 107470- |
|||
| ? | CU206963 | • ADAPTER | 1 | SN: 107470- |
|||
| ? | CU3010536 | • VALVE | 1 | SN: 107470- |
|||
| ? | CU3010704 | • TUBE | 1 | SN: 107470- |
|||
| ? | CU145623 | O-RING | 1 | SN: 107470- |
|||
| ? | CUS-103-D | BOLT | 3 | SN: 107470- |
|||
| ? | 02310-01224 | WASHER,SPRING | 5 | SN: 107470- |
|||
| ? | 02010-70651 | BOLT | 1 | SN: 127919- |
|||
| ? | 02010-70638 | BOLT | 1 | SN: 107470-127918 |
|||
| ? | 02010-70632 | BOLT | 1 | SN: 127919- |
|||
| ? | 02010-70622 | BOLT | 1 | SN: 107470-127918 |
|||
| ? | 02310-01224 | WASHER,SPRING | 2 | SN: 107470- |
|||
| ? | 02010-71051 | BOLT | 1 | SN: 127919- |
|||
| ? | 02010-71032 | BOLT | 2 | SN: 107470-127918 |
|||
| ? | CU3036096 | BRACKET | 1 | SN: 127919- |
|||
| ? | CU3010530 | BRACKET | 1 | SN: 107470-127918 |
|||
| ? | 6721-61-1120 | GASKET | 1 | SN: 107470- |
|||
| ? | 6721-61-6110 | CONNECTION | 1 | SN: 107470- |
|||
| ? | 02010-20676 | BOLT | 4 | SN: 107470- |
|||
| ? | 02310-01224 | WASHER,SPRING | 4 | SN: 107470- |
|||
| ? | CU205289 | GASKET | 1 | SN: 107470- |
|||
| ? | CU3200211 | CONNECTION | 1 | SN: 107470- |
|||
| ? | CU3028291 | O-RING | 2 | SN: .- |
|||
| ? | □CU69760 | O-RING | 2 | SN: 107470-. |
|||
| ? | CU206998 | TUBE | 1 | SN: 107470- |
|||
| ? | CUS-103 | BOLT | 2 | SN: 107470- |
|||
| ? | 02310-01224 | WASHER,SPRING | 2 | SN: 107470- |
|||
| ? | CU3025885 | DRIVE ASS'Y | 1 | SN: 119256- |
|||
| ? | CU3002325 | DRIVE ASS'Y | 1 | SN: 107470-119255 |
|||
| ? | CU207251 | • GEAR | 1 | SN: 107470- |
|||
| ? | CU205166 | • RING | 1 | SN: 107470-119255 |
|||
| ? | CU3025886 | • RETAINER | 1 | SN: 119256- |
|||
| ? | CU3002743 | • WASHER | 1 | SN: 107470-119255 |
|||
| ? | CU3026556 | • BEARING | 2 | SN: ..- |
|||
| ? | □CU116388 | • WASHER | 2 | SN: .-.. |
|||
| ? | □6610-71-7230 | • WASHER | 2 | SN: 107470-. |
|||
| ? | CU3007386 | • SUPPORT ASS'Y | 1 | SN: .- |
|||
| ? | CUAR-10595 | • SUPPORT ASS'Y | 1 | SN: 107470-. |
|||
| ? | CU205156 | • • BUSHING | 2 | SN: 107470- |
|||
| ? | 02720-10104 | • • PLUG | 1 | SN: 107470- |
|||
| ? | CU205498 | • PLUG | 1 | SN: 107470- |
|||
| ? | CU3025887 | • SHAFT | 1 | SN: 119246- |
|||
| ? | CU3002326 | • SHAFT | 1 | SN: 107470-119255 |
|||
| ? | CU3200945 | GASKET | 1 | SN: 107470- |
|||
| ? | CU139473 | PLUG | 1 | SN: 107470- |
|||
| ? | CU43696-A | O-RING | 1 | SN: 107470- |
|||
| ? | CUWF-2055 | ELEMENT | 1 | SN: .- |
|||
| ? | □CUWF-2014 | ELEMENT | 1 | SN: 107470-. |
|||
| ? | CUWF-2051 | ELEMENT,(SERVICE PARTS) | 1 | SN: .- |
|||
| ? | □CUWF-2010 | ELEMENT,(SERVICE PARTS) | 1 | SN: 107470-. |
|||
| ? | CUDCA-30L | INHIBITOR,(SERVICE PARTS) | A/R | SN: .- |
|||
| ? | □CUDCA-4L | INHIBITOR,(SERVICE PARTS) | A/R | SN: 107470-. |
|||
| ? | 6721-81-2611 | PULLEY | 1 | SN: 107470- |
|||
| ? | 6721-81-1541 | PLATE,(JAPANESE-ENGLISH) | 1 | SN: 107470- |
|||
| ? | 6721-81-1640 | PLATE,(FOR BULGARIA) | 1 | SN: 107470- |
|||
| ? | CU207721 | PLUG,(NOT SHOWN) | 1 | SN: 107470- |
|||
| ? | CUS-181 | BOLT,(NOT SHOWN) | 2 | SN: 107470- |
|||
| ? | CUS-603 | WASHER,SPRING (NOT SHOWN) | 2 | SN: 107470- |
