| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

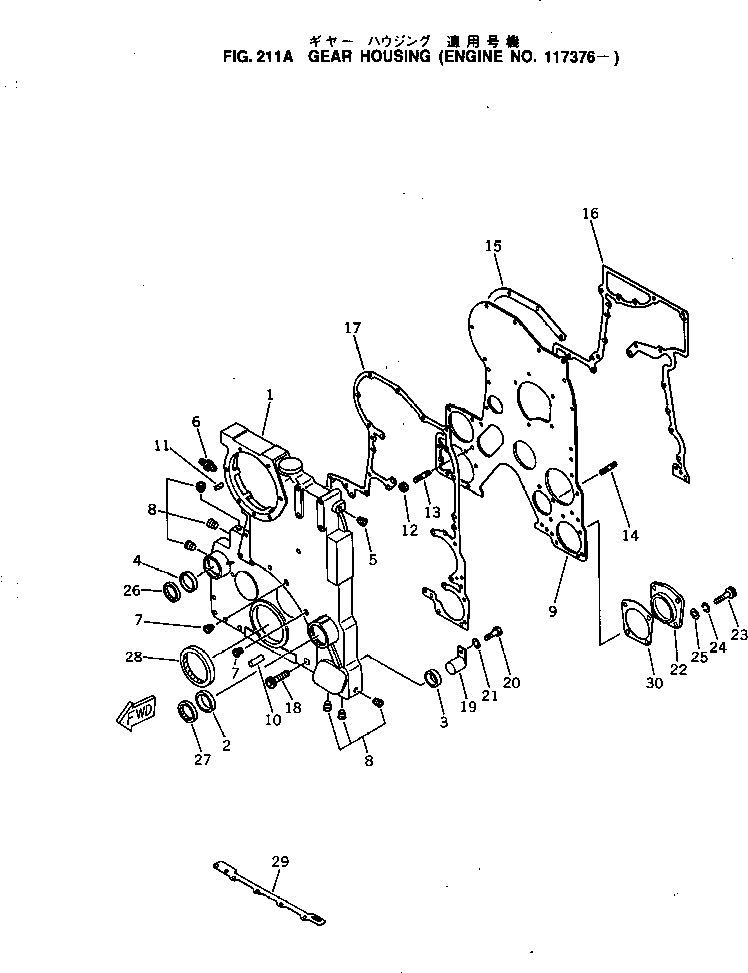

| ? | CU3012302 | GEAR COVER ASS'Y | 1 | SN: 117376- |
|||
| ? | CU3007362 | • COVER | 1 | SN: 117376- |
|||
| ? | CU132770 | • BUSHING | 1 | SN: 117376- |
|||
| ? | CU205133 | • BUSHING | 1 | SN: 117376- |
|||
| ? | CU132770 | • BUSHING | 1 | SN: 117376- |
|||
| ? | CU175831 | • PLUG | 1 | SN: 117376- |
|||
| ? | CUS-1039-A | • CONNECTOR | 1 | SN: 117376- |
|||
| ? | CU67622 | • PLUG | 2 | SN: 117376- |
|||
| ? | CU3002158 | PLUG | 6 | SN: 117376- |
|||
| ? | CU3007658 | PLATE ASS'Y | 1 | SN: 117376- |
|||
| ? | CU3007363 | • PLATE | 1 | SN: 117376- |
|||
| ? | CU70645 | • PIN | 1 | SN: 117376- |
|||
| ? | CU102957 | • PIN | 1 | SN: 117376- |
|||
| ? | CU3019961 | • NUT | 1 | SN: 117376- |
|||
| ? | CU3200754 | • STUD | 1 | SN: 117376- |
|||
| ? | CU206217 | • STUD | 1 | SN: 117376- |
|||
| ? | CU3200642 | PLATE | 1 | SN: 117376- |
|||
| ? | CU3200944 | GASKET | 1 | SN: 117376- |
|||
| ? | CU3007376 | GASKET | 1 | SN: 117376- |
|||
| ? | CUS-104 | BOLT,(HEXAGON HEAD) | 1 | SN: .- |
|||
| ? | □CU205375 | BOLT,(12 POINT HEAD) | 1 | SN: 117376-. |
|||
| ? | CU3003123 | INSERT | 1 | SN: 117376- |
|||
| ? | CUS-103 | BOLT | 1 | SN: 117376- |
|||
| ? | CUS-604 | WASHER | 1 | SN: 117376- |
|||
| ? | CU3007374 | COVER | 1 | SN: 117376- |
|||
| ? | CUS-120 | BOLT,(HEXAGON HEAD) | 4 | SN: .- |
|||
| ? | □CU205275 | BOLT,(12 POINT HEAD) | 4 | SN: 117376-. |
|||
| ? | CUS-604 | WASHER | 4 | SN: 117376- |
|||
| ? | CU127367 | WASHER | 4 | SN: 117376- |
|||
| ? | CU3016794 | SEAL,OIL | 1 | SN: 117376- |
|||
| ? | CU3016788 | SEAL,OIL | 1 | SN: 117376- |
|||
| ? | CU3016792 | SEAL,OIL | 1 | SN: 117376- |
|||
| ? | CU3017319 | GASKET | 1 | SN: 117376- |
|||
| ? | CU3007380 | GASKET | 1 | SN: 117376- |
|||
| ? | MOUNTING PARTS | ||||||
| ? | CUS-102-D | BOLT,(HEXAGON HEAD) | 5 | SN: .- |
|||
| ? | □CU205278 | BOLT,(12 POINT HEAD) | 5 | SN: 117376-. |
|||
| ? | CUS-103-D | BOLT,(HEXAGON HEAD) | 3 | SN: .- |
|||
| ? | □CU191772 | BOLT,(12 POINT HEAD) | 3 | SN: 117376-. |
|||
| ? | CUS-105 | BOLT,(HEXAGON HEAD) | 1 | SN: .- |
|||
| ? | □CU205199 | BOLT,(12 POINT HEAD) | 1 | SN: 117376-. |
|||
| ? | CUS-137 | BOLT,(HEXAGON HEAD) | 2 | SN: .- |
|||
| ? | □CU172640 | BOLT,(12 POINT HEAD) | 2 | SN: 117376-. |
|||
| ? | CUS-199-B | BOLT,(HEXAGON HEAD) | 6 | SN: .- |
|||
| ? | □CU206305 | BOLT,(12 POINT HEAD) | 6 | SN: 117376-. |
|||
| ? | CUS-604 | WASHER | 20 | SN: 117376- |
|||
| ? | CUS-223 | NUT | 2 | SN: 117376- |
|||
| ? | CUS-602 | WASHER | 6 | SN: 117376- |
|||
| ? | CU127362 | WASHER | 12 | SN: 117376- |
