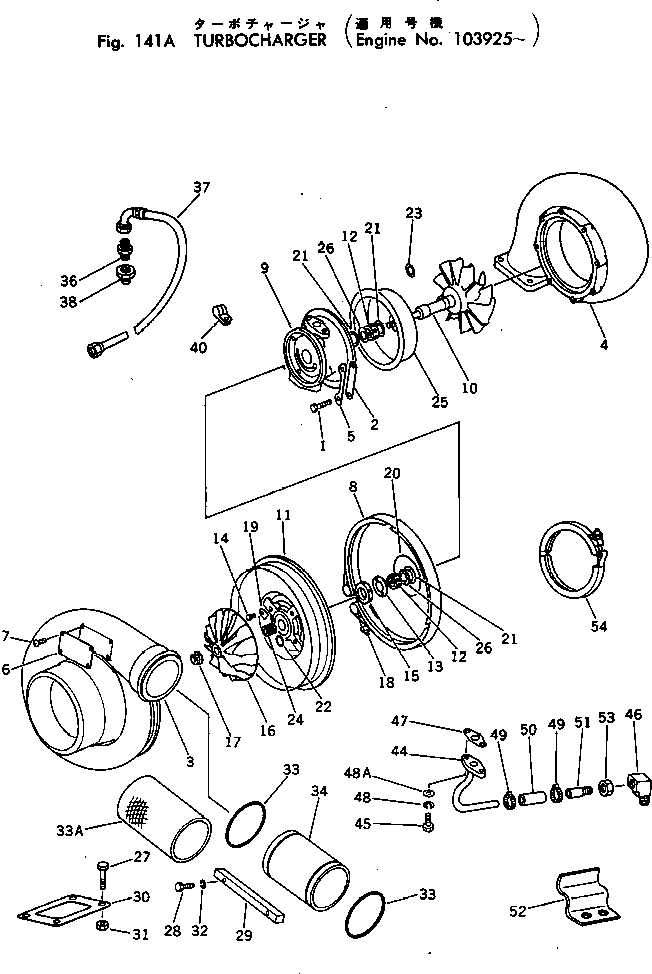

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | CU3033554 | TURBOCHARGER ASS'Y | 2 | SN: 107115- |
|||
| ? | CU3025165 | TURBOCHARGER | 2 | SN: 103925-107114 |
|||
| ? | CU202870 | • BOLT | 8 | SN: 103559- |
|||
| ? | CU202871 | • CLAMP | 4 | SN: 103559- |
|||
| ? | CU3022507 | • HOUSING | 1 | SN: 103925- |
|||
| ? | CU207438 | • HOUSING | 1 | SN: 103559- |
|||
| ? | CU202872 | • PLATE | 4 | SN: 103559- |
|||
| ? | CU207433 | • PLATE ? NAME | 1 | SN: 103559- |
|||
| ? | CU207434 | • SCREW | 4 | SN: 103559- |
|||
| ? | CU202868 | • V-BAND | 1 | SN: 103559- |
|||
| ? | CU3033543 | • HOUSING ASS'Y | 1 | SN: 107115- |
|||
| ? | CU3022506 | • HOUSING ASS'Y | 1 | SN: 103925-107114 |
|||
| ? | CU3022514 | • • HOUSING | 1 | SN: 103925-107114 |
|||
| ? | CU3022505 | • • SHAFT ASS'Y | 1 | SN: 103925-107114 |
|||
| ? | CU3022503 | • • PLATE | 1 | SN: 103925-107114 |
|||
| ? | CU207425 | • • BEARING | 2 | SN: 103559-107114 |
|||
| ? | CU202856 | • • PLATE | 1 | SN: 103559-107114 |
|||
| ? | CU3009195 | • • BOLT | 4 | SN: 103925-107114 |
|||
| ? | CU3009198 | • • COLLAR | 1 | SN: 103925-107114 |
|||
| ? | CU3022504 | • • IMPELLER | 1 | SN: 103925-107114 |
|||
| ? | CU3009199 | • • NUT | 1 | SN: 103925-107114 |
|||
| ? | CU207432 | • • NUT | 1 | SN: 103559-107114 |
|||
| ? | CU3004583 | • • PLATE | 4 | SN: 103559-107114 |
|||
| ? | CU202859 | • • O-RING | 1 | SN: 103559-107114 |
|||
| ? | CU202853 | • • RING | 3 | SN: 103559-107114 |
|||
| ? | CU202860 | • • RING | 1 | SN: 103559-107114 |
|||
| ? | CU207431 | • • RING | 1 | SN: 103559-107114 |
|||
| ? | CU3009197 | • • SPACER | 1 | SN: 103925-107114 |
|||
| ? | CU202852 | • • SHROUD | 1 | SN: 103559-107114 |
|||
| ? | CU202855 | • • WASHER | 2 | SN: 103559-107114 |
|||
| ? | CUS-165 | BOLT | 16 | SN: 103559- |
|||
| ? | CUS-107 | BOLT | 8 | SN: 103559- |
|||
| ? | CU3175806 | STRAP | 4 | SN: 103559- |
|||
| ? | CU206576 | GASKET | 4 | SN: 103559- |
|||
| ? | CU219138 | NUT | 16 | SN: 103559- |
|||
| ? | CUS-604 | WASHER | 8 | SN: 103559- |
|||
| ? | CU3023066 | O-RING | 4 | SN: .- |
|||
| ? | □CU207236 | O-RING | 4 | SN: 103559-. |
|||
| ? | CU3023130 | SEAL | 2 | SN: 103559- |
|||
| ? | CU3023129 | SEAL | 2 | SN: 103559- |
|||
| ? | CU207214 | TUBE | 4 | SN: 103559- |
|||
| ? | CUS-626 | WASHER | 8 | SN: 103559- |
|||
| ? | CUS-1039A | ADAPTER | 2 | SN: 103925- |
|||
| ? | CU3177046 | HOSE | 2 | SN: 103925- |
|||
| ? | CU3014354 | ADAPTER | 2 | SN: 103925- |
|||
| ? | CU108722 | CLIP | 4 | SN: 103559- |
|||
| ? | CU206668 | ELBOW,(NOT SHOWN) | 2 | SN: 103559- |
|||
| ? | CU3003039 | TUBE | 2 | SN: 103559- |
|||
| ? | CUS-112 | BOLT | 4 | SN: 103559- |
|||
| ? | CUS-1064 | ELBOW | 2 | SN: 103559- |
|||
| ? | CU201048 | GASKET | 2 | SN: 103559- |
|||
| ? | CUS-604 | WASHER | 4 | SN: 103559- |
|||
| ? | CUS-602 | WASHER | 4 | SN: 103559- |
|||
| ? | CU556148 | CLAMP | 4 | SN: 103559- |
|||
| ? | CU556150 | HOSE | 2 | SN: 103559- |
|||
| ? | CU3175219 | TUBE | 2 | SN: 103559- |
|||
| ? | CU3175595 | SHIELD | 2 | SN: 103559- |
|||
| ? | CUS-1065 | NUT | 2 | SN: 103559- |
|||
| ? | CU201989 | CLAMP | 2 | SN: 103559- |
