| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

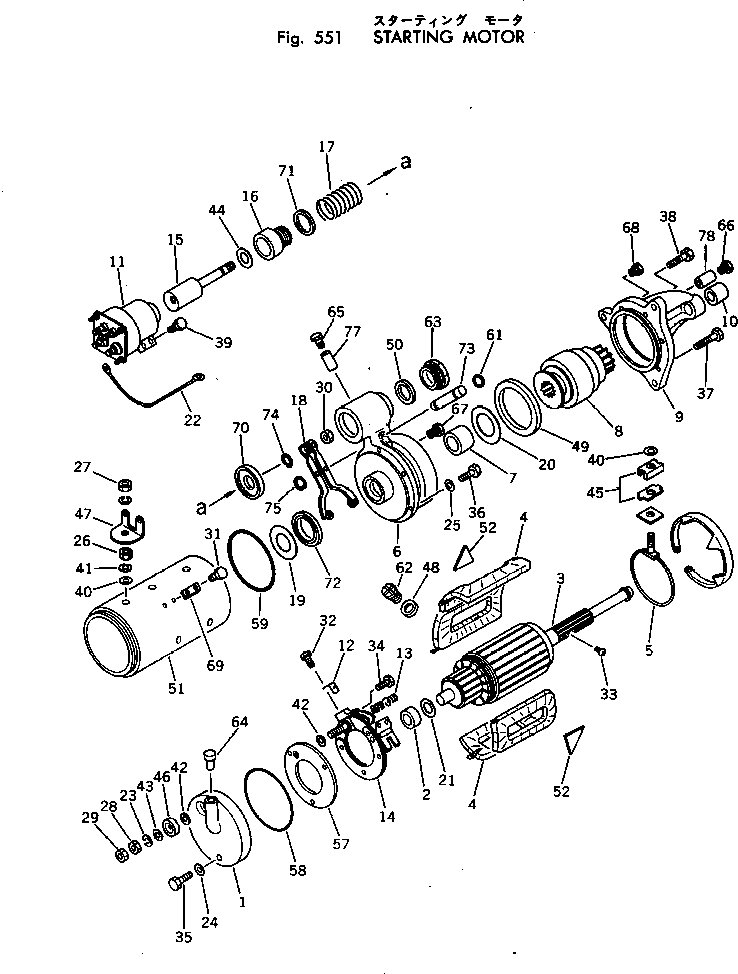

| ? | CU3010125 | STARTING MOTOR ASS'Y | 1 | SN: 103559- |
|||
| ? | CUDR-1945848 | • FRAME | 1 | SN: 103559- |
|||
| ? | CUDR-1894638 | • BUSHING | 1 | SN: 103559- |
|||
| ? | CUDR-1945840 | • ARMATURE | 1 | SN: 103559- |
|||
| ? | CUDR-1945853 | • FIELD COIL | 1 | SN: 103559- |
|||
| ? | CUDR-1950561 | • STUD | 1 | SN: 103559- |
|||
| ? | CUDR-1979598 | • HOUSING | 1 | SN: 103559- |
|||
| ? | CUDR-1894637 | • LEVER | 1 | SN: 103559- |
|||
| ? | CUDR-1976884 | • DRIVE ASS'Y | 1 | SN: 103559- |
|||
| ? | CUDR-1957846 | • HOUSING | 1 | SN: 103559- |
|||
| ? | CUDR-1894635 | • BUSHING | 1 | SN: 103559- |
|||
| ? | CUDR-1115559 | • SWITCH | 1 | SN: 103559- |
|||
| ? | CUDR-1906989 | • BRUSH | 1 | SN: 103559- |
|||
| ? | CUDR-1861785 | • SPRING | 1 | SN: 103559- |
|||
| ? | CUDR-1946849 | • BRUSH | 1 | SN: 103559- |
|||
| ? | CUDR-1948522 | • PLUNGER | 1 | SN: 103559- |
|||
| ? | CUDR-801077 | • BOOT | 1 | SN: 103559- |
|||
| ? | CUDR-1948521 | • SPRING | 1 | SN: 103559- |
|||
| ? | CUDR-1945484 | • LEVER | 1 | SN: 103559- |
|||
| ? | CUDR-1936466 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-1911644 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-1953237 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-1979600 | • LEAD | 1 | SN: 103559- |
|||
| ? | CUDR-9421427 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-9421423 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-9421423 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-9414418 | • NUT | 1 | SN: 103559- |
|||
| ? | CUDR-1979451 | • NUT | 1 | SN: 103559- |
|||
| ? | CUDR-9414418 | • NUT | 1 | SN: 103559- |
|||
| ? | CUDR-1979451 | • NUT | 1 | SN: 103559- |
|||
| ? | CUDR-9412305 | • NUT | 1 | SN: 103559- |
|||
| ? | CUDR-1968396 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-453418 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1968998 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1847807 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1914869 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1914869 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1948536 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1948537 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1930611 | • SCREW | 1 | SN: 103559- |
|||
| ? | CUDR-1922457 | • WASHER | 2 | SN: 103559- |
|||
| ? | CUDR-194647 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-1861791 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-1914647 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-1948519 | • WASHER | 1 | SN: 103559- |
|||
| ? | CUDR-1851632 | • INSULATOR | 1 | SN: 103559- |
|||
| ? | CUDR-1965472 | • BUSHING | 1 | SN: 103559- |
|||
| ? | CUDR-1945862 | • CONNECTOR | 1 | SN: 103559- |
|||
| ? | CUDR-1964857 | • GASKET | 1 | SN: 103559- |
|||
| ? | CUDR-1945476 | • GASKET | 1 | SN: 103559- |
|||
| ? | CUDR-1964857 | • GASKET | 1 | SN: 103559- |
|||
| ? | CUDR-1955989 | • INSULATOR | 1 | SN: 103559- |
|||
| ? | CUDR-1914873 | • INSULATOR | 1 | SN: 103559- |
|||
| ? | CUDR-1964516 | • INSULATOR | 1 | SN: 103559- |
|||
| ? | CUDR-1945860 | • O-RING | 1 | SN: 103559- |
|||
| ? | CUDR-1945860 | • O-RING | 1 | SN: 103559- |
|||
| ? | CUDR-1894643 | • O-RING | 1 | SN: 103559- |
|||
| ? | CUDR-1894642 | • O-RING | 1 | SN: 103559- |
|||
| ? | CUDR-1945356 | • PLUG | 1 | SN: 103559- |
|||
| ? | CUDR-1945356 | • PLUG | 1 | SN: 103559- |
|||
| ? | CUDR-1978756 | • PLUG | 1 | SN: 103559- |
|||
| ? | CUDR-1978756 | • PLUG | 1 | SN: 103559- |
|||
| ? | CUDR-1978756 | • PLUG | 1 | SN: 103559- |
|||
| ? | CUDR-1964402 | • PLUG | 1 | SN: 103559- |
|||
| ? | CUDR-1949619 | • PLUG | 1 | SN: 103559- |
|||
| ? | CUDR-1934477 | • POLE | 1 | SN: 103559- |
|||
| ? | CUDR-1948526 | • RETAINER | 1 | SN: 103559- |
|||
| ? | CUDR-1948520 | • RETAINER | 1 | SN: 103559- |
|||
| ? | CUDR-1918047 | • SEAL | 1 | SN: 103559- |
|||
| ? | CUDR-1948529 | • SHAFT | 1 | SN: 103559- |
|||
| ? | CUDR-9416374 | • RING | 1 | SN: 103559- |
|||
| ? | CUDR-9416374 | • RING | 1 | SN: 103559- |
|||
| ? | CUDR-1978754 | • WICK | 1 | SN: 103559- |
|||
| ? | CUDR-1978754 | • WICK | 1 | SN: 103559- |
