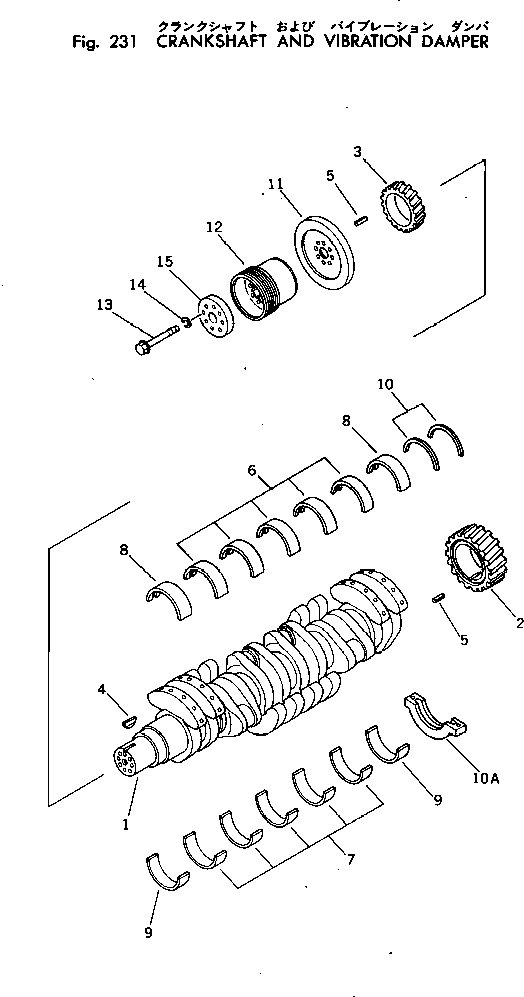

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | CU3015577 | CRANKSHAFT ASS'Y | 1 | SN: .- |
|||
| ? | CU3014254 | CRANKSHAFT ASS'Y | 1 | SN: 103559-. |
|||
| ? | ☆ | • CRANKSHAFT | 1 | SN: .- |
|||
| ? | ☆ | • CRANKSHAFT | 1 | SN: 103559-. |
|||
| ? | CU3175255 | • GEAR | 1 | SN: 103559-. |
|||
| ? | CU3004262 | • GEAR | 1 | SN: 103559- |
|||
| ? | CU206904 | • KEY | 1 | SN: 103559- |
|||
| ? | CU131584 | • PIN | 2 | SN: 103559- |
|||
| ? | STANDARD | ||||||
| ? | CUAR-12250 | BEARING ASS'Y | 1 | SN: 103559- |
|||
| ? | CU206580 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | 5 | SN: 103559- |
|||
| ? | CU206640 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | 5 | SN: 103559- |
|||
| ? | CU206600 | • BEARING,NO.1 ?7 | 2 | SN: 103559- |
|||
| ? | CU206630 | • BEARING,NO.1 ?7 | 2 | SN: 103559- |
|||
| ? | UNDERSIZE 0.25MM | ||||||
| ? | CUAR-12251 | BEARING ASS'Y | 1 | SN: 103559- |
|||
| ? | CU206581 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | 5 | SN: 103559- |
|||
| ? | CU206591 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | 5 | SN: 103559- |
|||
| ? | CU206601 | • BEARING,NO.1 ?7 | 2 | SN: 103559- |
|||
| ? | CU206611 | • BEARING,NO.1 ?7 | 2 | SN: 103559- |
|||
| ? | UNDERSIZE 0.50MM | ||||||
| ? | CUAR-12252 | BEARING ASS'Y | 1 | SN: 103559- |
|||
| ? | CU206582 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | 5 | SN: 103559- |
|||
| ? | CU206592 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | 5 | SN: 103559- |
|||
| ? | CU206602 | • BEARING,NO.1 ?7 | 2 | SN: 103559- |
|||
| ? | CU206612 | • BEARING,NO.1 ?7 | 2 | SN: 103559- |
|||
| ? | UNDERSIZE 0.76MM | ||||||
| ? | CUAR-12253 | BEARING ASS'Y | 1 | SN: 103559- |
|||
| ? | CU206583 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | A/R | SN: 103559- |
|||
| ? | CU206593 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | A/R | SN: 103559- |
|||
| ? | CU206603 | • BEARING,NO.1 ?7 | A/R | SN: 103559- |
|||
| ? | CU206613 | • BEARING,NO.1 ?7 | A/R | SN: 103559- |
|||
| ? | UNDERSIZE 1.02MM | ||||||
| ? | CUAR-12324 | BEARING ASS'Y | 1 | SN: 103559- |
|||
| ? | CU206584 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | A/R | SN: 103559- |
|||
| ? | CU206594 | • BEARING,NO.2 ?3 ?4 ?5 ?6 | A/R | SN: 103559- |
|||
| ? | CU206604 | • BEARING,NO.1 ?7 | A/R | SN: 103559- |
|||
| ? | CU206614 | • BEARING,NO.1 ?7 | A/R | SN: 103559- |
|||
| ? | STANDARD | ||||||
| ? | CU3000139 | • BEARING | 2 | SN: 103559- |
|||
| ? | OVERSIZE 0.25MM | ||||||
| ? | CU3001708 | • BEARING | 2 | SN: 103559- |
|||
| ? | OVERSIZE 0.50MM | ||||||
| ? | CU3001709 | • BEARING | 2 | SN: 103559- |
|||
| ? | OVERSIZE 0.76MM | ||||||
| ? | CU3034075 | • BEARING | 2 | SN: 103559- |
|||
| ? | OVERSIZE 1.02MM | ||||||
| ? | CU3034076 | • BEARING | 2 | SN: 103559- |
|||
| ? | (CU3175281) | PLATE | 1 | SN: 103559- |
|||
| ? | CU207531 | DAMPER | 1 | SN: 103559- |
|||
| ? | CU3003344 | PULLEY | 1 | SN: 103559- |
|||
| ? | CU3025071 | BOLT | 8 | SN: 104776- |
|||
| ? | □CU3023539 | BOLT | 8 | SN: 103559-104775 |
|||
| ? | CU3175924 | WASHER | 8 | SN: 104776- |
|||
| ? | □CU205059 | WASHER | 8 | SN: 103559-104775 |
|||
| ? | CU3175924 | WASHER | 1 | SN: 104742- |
