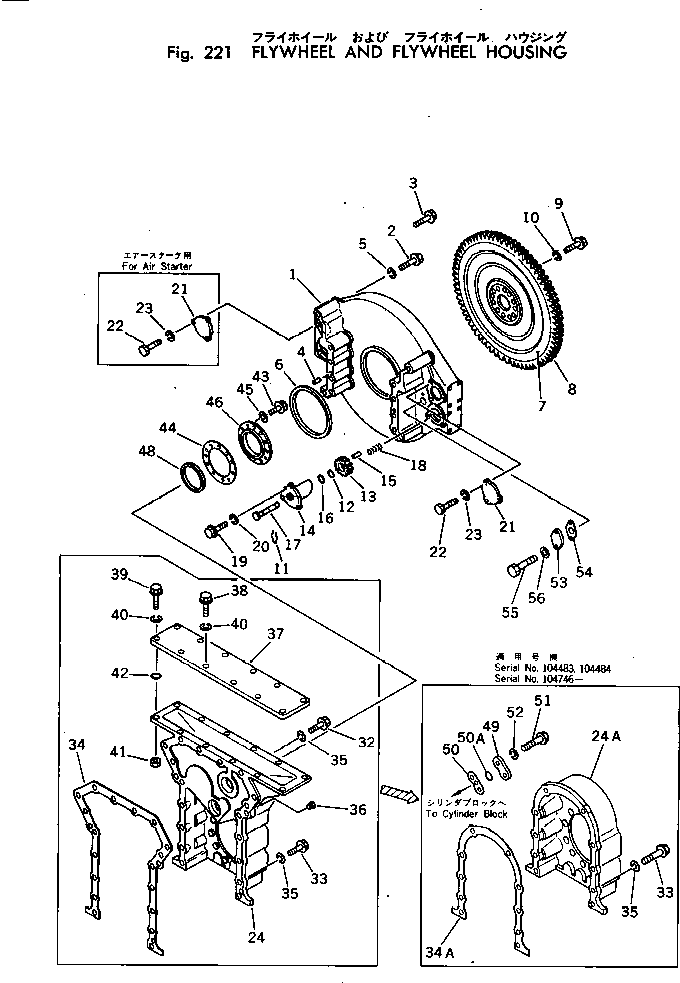

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | CU3175302 | HOUSING ASS'Y,FLYWHEEL | 1 | SN: 103559- |
|||
| ? | CU3034629 | • HOUSING | 1 | SN: 107377- |
|||
| ? | □CU3024586 | • HOUSING | 1 | SN: 103559-107376 |
|||
| ? | CU163086 | • PLUG,(NOT SHOWN) | 1 | SN: 103559- |
|||
| ? | CUS-150-A | BOLT | 10 | SN: 103559- |
|||
| ? | CU205565 | BOLT | 2 | SN: 103559- |
|||
| ? | CU70662 | PIN | 2 | SN: 103559- |
|||
| ? | CUS-611 | WASHER | 12 | SN: 103559- |
|||
| ? | CU207551 | SEAL | 1 | SN: 103559- |
|||
| ? | CU3021394 | FLYWHEEL ASS'Y | 1 | SN: .- |
|||
| ? | □CUAR-11491 | FLYWHEEL ASS'Y | 1 | SN: 103559-. |
|||
| ? | ☆ | • FLYWHEEL | 1 | SN: 103559- |
|||
| ? | CU124507 | • GEAR | 1 | SN: 103559- |
|||
| ? | CU3023536 | BOLT | 12 | SN: .- |
|||
| ? | □CU205564 | BOLT | 12 | SN: 103559-. |
|||
| ? | CU205059 | WASHER | 12 | SN: 103559- |
|||
| ? | CUAR-11490 | BARRING ASS'Y | 1 | SN: 103559- |
|||
| ? | CU169834 | • CLAMP | 1 | SN: 103559- |
|||
| ? | CU206090 | • O-RING | 1 | SN: 103559- |
|||
| ? | CU206091 | • GEAR | 1 | SN: 103559- |
|||
| ? | CU206093 | • HOUSING | 1 | SN: 103559- |
|||
| ? | CUS-306 | • KEY | 1 | SN: 103559- |
|||
| ? | CU102827 | • O-RING | 1 | SN: 103559- |
|||
| ? | CU206089 | • SHAFT | 1 | SN: 103559- |
|||
| ? | CU206092 | • SPRING | 1 | SN: 103559- |
|||
| ? | CU158250 | BOLT | 3 | SN: 103559- |
|||
| ? | CUS-603 | WASHER | 3 | SN: 103559- |
|||
| ? | CU62182 | COVER,(FOR STARTING MOTOR) | 1 | SN: 103559- |
|||
| ? | CU62182 | COVER,(FOR AIR STARTER) | 2 | SN: 103559- |
|||
| ? | 02010-71032 | BOLT | 6 | SN: .- |
|||
| ? | □CUS-181 | BOLT | 6 | SN: 103559-. |
|||
| ? | 01602-01648 | WASHER | 3 | SN: 103559- |
|||
| ? | CU206168 | HOUSING | 1 | SN: 104485-104745 |
|||
| ? | CU206168 | HOUSING | 1 | SN: 103559-104482 |
|||
| ? | CU3005937 | HOUSING | 1 | SN: 104746- |
|||
| ? | CU3005937 | HOUSING | 1 | SN: 104483-104484 |
|||
| ? | CU103009 | BOLT | 4 | SN: 104485-104745 |
|||
| ? | CU103009 | BOLT | 4 | SN: 103559-104482 |
|||
| ? | CU106069 | BOLT | 10 | SN: 104746- |
|||
| ? | CU106069 | BOLT | 14 | SN: 104485-104745 |
|||
| ? | CU106069 | BOLT | 10 | SN: 104483-104484 |
|||
| ? | CU106069 | BOLT | 14 | SN: 103559-104482 |
|||
| ? | CU206421 | GASKET | 1 | SN: 104485-104745 |
|||
| ? | CU206421 | GASKET | 1 | SN: 103559-104482 |
|||
| ? | CU3005940 | GASKET | 1 | SN: 104746- |
|||
| ? | CU3005940 | GASKET | 1 | SN: 104483-104484 |
|||
| ? | CUS-610 | WASHER | 10 | SN: 104746- |
|||
| ? | CUS-610 | WASHER | 18 | SN: 104485-104745 |
|||
| ? | CUS-610 | WASHER | 10 | SN: 104483-104484 |
|||
| ? | CUS-610 | WASHER | 18 | SN: 103559-104482 |
|||
| ? | CU3002158 | PLUG | 1 | SN: 103559- |
|||
| ? | CU206169 | PLATE | 1 | SN: 104485-104745 |
|||
| ? | CU206169 | PLATE | 1 | SN: 103559-104482 |
|||
| ? | CU103009 | BOLT | 8 | SN: 104485-104745 |
|||
| ? | CU103009 | BOLT | 8 | SN: 103559-104482 |
|||
| ? | CUS-140 | BOLT | 6 | SN: 104485-104745 |
|||
| ? | CUS-140 | BOLT | 6 | SN: 103559-104482 |
|||
| ? | CUS-610 | WASHER | 14 | SN: 104485-104745 |
|||
| ? | CUS-610 | WASHER | 14 | SN: 103559-104482 |
|||
| ? | CUS-217 | NUT | 5 | SN: 104485-104745 |
|||
| ? | CUS-217 | NUT | 5 | SN: 103559-104482 |
|||
| ? | CU70861 | O-RING | 2 | SN: 104485-104745 |
|||
| ? | CU70861 | O-RING | 2 | SN: 103559-104482 |
|||
| ? | CUS-115 | BOLT | 10 | SN: 103559- |
|||
| ? | CU205571 | GASKET | 1 | SN: 103559- |
|||
| ? | CUS-605 | WASHER | 10 | SN: 103559- |
|||
| ? | CU207547 | RETAINER | 1 | SN: 103559- |
|||
| ? | CU3016790 | SEAL | 1 | SN: 103559- |
|||
| ? | CU3177151 | PLATE,L.H. | 1 | SN: .- |
|||
| ? | CU3177152 | PLATE,R.H. | 1 | SN: .- |
|||
| ? | CU3005938 | PLATE | 2 | SN: 104746-. |
|||
| ? | CU3005939 | GASKET | 2 | SN: 104746-. |
|||
| ? | CU43696 | SEAL | 2 | SN: .- |
|||
| ? | CU103023 | BOLT | 4 | SN: 104746- |
|||
| ? | CU103023 | BOLT | 4 | SN: 104483-104484 |
|||
| ? | CUS-610 | WASHER | 4 | SN: 104746- |
|||
| ? | CUS-610 | WASHER | 4 | SN: 104483-104484 |
|||
| ? | CU3010410 | COVER | 2 | SN: .- |
|||
| ? | □CU206081 | COVER | 2 | SN: 103559-. |
|||
| ? | CU163087 | GASKET | 2 | SN: 103559- |
|||
| ? | CUS-167 | BOLT | 4 | SN: 103559- |
|||
| ? | CUS-600 | WASHER | 4 | SN: 103559- |
