| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | SERIALNO: |
|||||
| ? | (714-21-10005) | TRANSMISSION ASS'Y | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | (☒714-21-10004) | TRANSMISSION ASS'Y | 1 | SN: ((1490)-00053227) KIT-FLAG: _- SERIALNO: ((1490)-00053227) |
|||
| ? | (☒714-21-10003) | TRANSMISSION ASS'Y | 1 | SN: ((1490)-(101557)) KIT-FLAG: _- SERIALNO: ((1490)-(101557)) |
|||
| ? | □714-21-10002 | TRANSMISSION ASS'Y | 1 | SN: (1224)-(1489) KIT-FLAG: _- SERIALNO: (1224)-(1489) |
|||
| ? | □714-21-10001 | TRANSMISSION ASS'Y | 1 | SN: 53001-(1223) KIT-FLAG: _- SERIALNO: 53001-(1223) |
|||

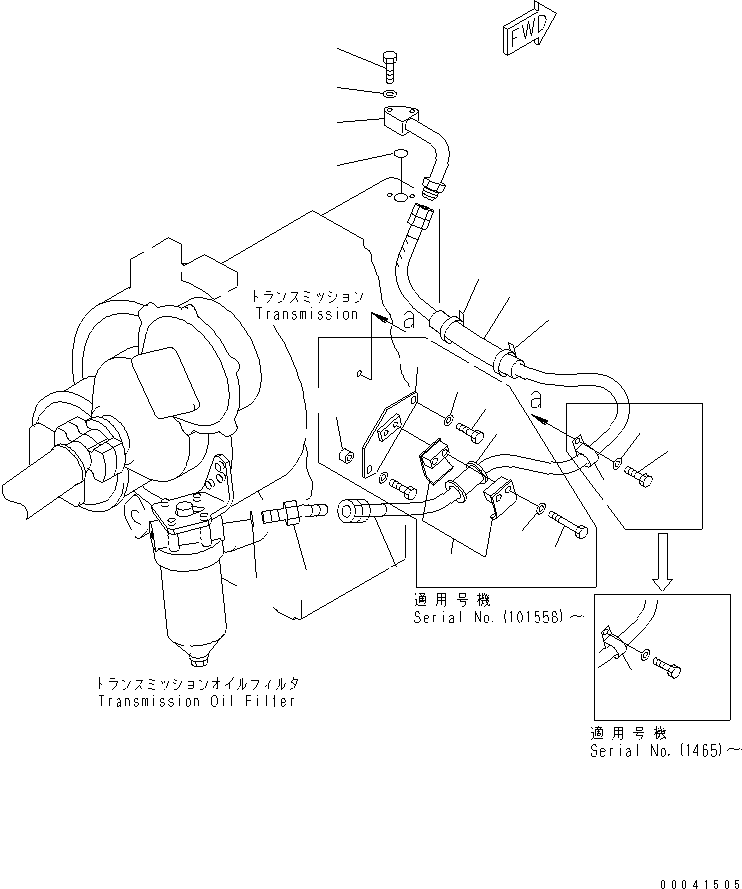

| ? | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0. | SERIALNO: |
|||||
| ? | 07236-11034 | • ELBOW | 1 | SN: 53001- KIT-FLAG: _- SERIALNO: 53001- |
|||
| ? | 07002-13334 | • O-RING (K1) | 1 | SN: 53001- KIT-FLAG: _- SERIALNO: 53001- |
|||
| ? | 714-21-18280 | • HOSE | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 714-22-18280 | • HOSE | 1 | SN: (1478)-00053227 KIT-FLAG: _- SERIALNO: (1478)-00053227 |
|||
| ? | 07102-21010 | • HOSE | 1 | SN: (1468)-(1477) KIT-FLAG: _- SERIALNO: (1468)-(1477) |
|||
| ? | 07102-21008 | • HOSE | 1 | SN: (1010)-(1467) KIT-FLAG: _- SERIALNO: (1010)-(1467) |
|||
| ? | 07102-21005 | • HOSE | 1 | SN: 53001-(1009) KIT-FLAG: _- SERIALNO: 53001-(1009) |
|||
| ? | 281-01-13180 | • CLIP | 1 | SN: 53001-53227 KIT-FLAG: _- SERIALNO: 53001-53227 |
|||
| ? | 01010-81025 | • BOLT | 1 | SN: 53001-(1464) KIT-FLAG: _- SERIALNO: 53001-(1464) |
|||
| ? | 01643-31032 | • WASHER | 1 | SN: 53001-(1464) KIT-FLAG: _- SERIALNO: 53001-(1464) |
|||
| ? | 714-19-18160 | • TUBE | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 714-22-18160 | • TUBE | 1 | SN: (101558)-00053227 KIT-FLAG: _- SERIALNO: (101558)-00053227 |
|||
| ? | 714-19-18160 | • TUBE | 1 | SN: 53001-(101557) KIT-FLAG: _- SERIALNO: 53001-(101557) |
|||
| ? | 01010-81055 | • BOLT | 2 | SN: 53001- KIT-FLAG: _- SERIALNO: 53001- |
|||
| ? | 01643-31032 | • WASHER | 2 | SN: 53001- KIT-FLAG: _- SERIALNO: 53001- |
|||
| ? | 07000-13028 | • O-RING (K1) | 1 | SN: 53001- KIT-FLAG: _- SERIALNO: 53001- |
|||
| ? | 205-62-53780 | • COVER | 1 | SN: (1468)- KIT-FLAG: _- SERIALNO: (1468)- |
|||
| ? | 08034-20519 | • BAND | 2 | SN: (1468)- KIT-FLAG: _- SERIALNO: (1468)- |
|||
| ? | 714-21-18770 | • PLATE | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 6144-85-6680 | • SPACER | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 01010-81030 | • BOLT | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 01643-31032 | • WASHER | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 07094-11024 | • CLAMP | 2 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 07095-01035 | • CUSHION | 1 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 01010-81275 | BOLT | 2 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: (1490)- KIT-FLAG: _- SERIALNO: (1490)- |
