| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

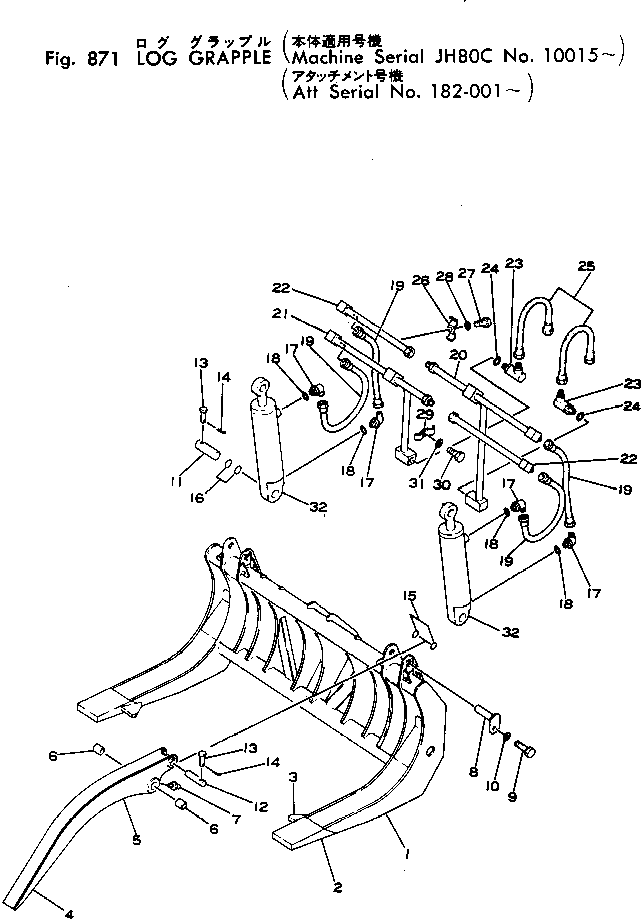

| ? | 385-10204361 | LOG GRAPPLE ASS'Y | 1 | SN: (005)- |
|||
| ? | □385-10124101 | LOG GRAPPLE ASS'Y | 1 | SN: (001)-(004) |
|||
| ? | 385-10204351 | • FORK ASS'Y | 1 | SN: (005)- |
|||
| ? | □385-10124111 | • FORK ASS'Y | 1 | SN: (001)-(004) |
|||
| ? | 381-897574-2 | • • FORK | 2 | SN: (001)- |
|||
| ? | 385-10124241 | • STOPPER | 2 | SN: (001)- |
|||
| ? | 385-10124271 | • ARM ASS'Y | 2 | SN: (001)- |
|||
| ? | 385-10124281 | • • ARM | 1 | SN: (001)- |
|||
| ? | 380-172195-1 | • • BUSHING | 2 | SN: (001)- |
|||
| ? | 380-119692-1 | • • FITTING | 1 | SN: (001)- |
|||
| ? | 381-970701-1 | • PIN | 2 | SN: (001)- |
|||
| ? | 382-024884-1 | • BOLT | 2 | SN: (001)- |
|||
| ? | 382-025557-1 | • WASHER | 2 | SN: (001)- |
|||
| ? | 381-970989-2 | • PIN | 2 | SN: (001)- |
|||
| ? | 380-889614-1 | • PIN | 2 | SN: (001)- |
|||
| ? | 380-215860-1 | • PIN | 4 | SN: (001)- |
|||
| ? | 380-CP47-000 | • PIN | 4 | SN: (001)- |
|||
| ? | 380-199934-1 | • RING | 4 | SN: (001)- |
|||
| ? | 380-160529-1 | • RING | 4 | SN: (001)- |
|||
| ? | 384-9410978 | • ELBOW | 4 | SN: (001)- |
|||
| ? | 381-876107-1 | • O-RING | 4 | SN: (001)- |
|||
| ? | 380-889805-1 | • HOSE | 4 | SN: (001)- |
|||
| ? | 385-10204791 | • TUBE | 1 | SN: (005)- |
|||
| ? | 385-10124481 | • TUBE | 1 | SN: (001)-(004) |
|||
| ? | 385-10204801 | • TUBE | 1 | SN: (005)- |
|||
| ? | 385-10124491 | • TUBE | 1 | SN: (001)-(004) |
|||
| ? | 385-10204781 | • TUBE | 2 | SN: (005)- |
|||
| ? | 385-10124471 | • TUBE | 2 | SN: (001)-(004) |
|||
| ? | 381-897003-1 | • SWIVEL ASS'Y | 2 | SN: (001)- |
|||
| ? | 381-876110-1 | • O-RING | 2 | SN: (001)- |
|||
| ? | 381-988468-1 | • HOSE | 2 | SN: (001)- |
|||
| ? | 381-897432-1 | • CLAMP | 3 | SN: (001)- |
|||
| ? | 382-025773-1 | • BOLT | 3 | SN: (001)- |
|||
| ? | 380-131099-0 | • WASHER | 3 | SN: (001)- |
|||
| ? | 381-898988-1 | • CLAMP | 2 | SN: (001)- |
|||
| ? | 382-024842-1 | • BOLT | 2 | SN: (001)- |
|||
| ? | 380-131099-0 | • WASHER | 2 | SN: (001)- |
|||
| ? | (381-983359-2) | CYLINDER ASS'Y | 2 | SN: (.)- |
|||
| ? | □381-983359-1 | CYLINDER ASS'Y | 2 | SN: (001)-(.) |
