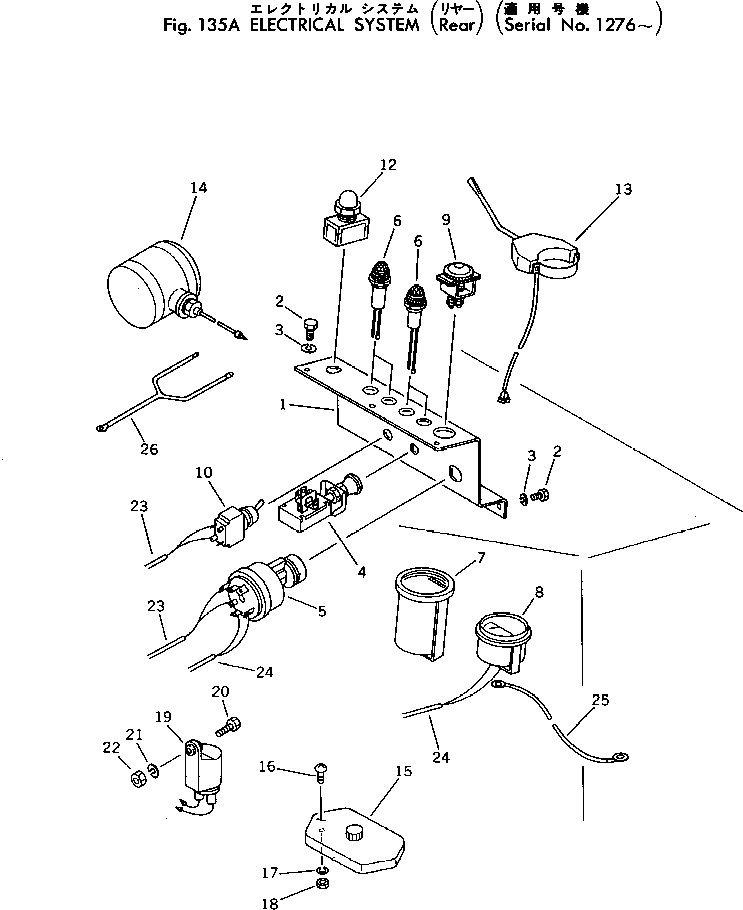

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 258-20-16121 | PANEL | 1 | SN: 1276- |
|||
| ? | 01220-30612 | SCREW | 6 | SN: 1001- |
|||
| ? | 01602-00619 | WASHER | 6 | SN: 1001- |
|||
| ? | 266-20-22540 | SWITCH,LAMP | 1 | SN: 1001- |
|||
| ? | 08086-00000 | SWITCH,STARTING | 1 | SN: 1001- |
|||
| ? | 2691-2-16320 | LAMP | 4 | SN: 1276- |
|||
| ? | 08687-11200 | METER,SERVICE | 1 | SN: 1001- |
|||
| ? | 258-20-16310 | METER,THERMO | 1 | SN: 1001- |
|||
| ? | 258-20-16330 | SIGNAL,GLOW | 1 | SN: 1001- |
|||
| ? | 258-20-16700 | SWITCH | 1 | SN: 1276- |
|||
| ? | 2692-2-18220 | SWITCH | 1 | SN: 1001- |
|||
| ? | 258-20-16910 | SWITCH,TURN SIGNAL | 1 | SN: 1001- |
|||
| ? | 258-20-16920 | LAMP | 2 | SN: 1001- |
|||
| ? | 258-20-16200 | BOX | 1 | SN: 1001- |
|||
| ? | 01220-30516 | SCREW | 2 | SN: 1001- |
|||
| ? | 01601-00513 | WASHER | 2 | SN: 1001- |
|||
| ? | 01580-00504 | NUT | 2 | SN: 1001- |
|||
| ? | 258-20-16400 | RELAY,FRASHER | 1 | SN: 1141- |
|||
| ? | 01010-30616 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-00619 | WASHER | 2 | SN: 1001- |
|||
| ? | 01580-00605 | NUT | 2 | SN: 1001- |
|||
| ? | 258-20-16803 | HARNESS ASS'Y | 1 | SN: 1466- |
|||
| ? | 258-20-16802 | HARNESS ASS'Y | 1 | SN: 1276-1465 |
|||
| ? | 258-20-16822 | • HARNESS | 1 | SN: 1466- |
|||
| ? | 258-20-16821 | • HARNESS | 1 | SN: 1276-1465 |
|||
| ? | 258-20-16810 | • HARNESS | 1 | SN: 1001- |
|||
| ? | 258-20-16850 | • CABLE | 1 | SN: 1001- |
|||
| ? | 258-20-16861 | • CABLE | 1 | SN: 1276- |
