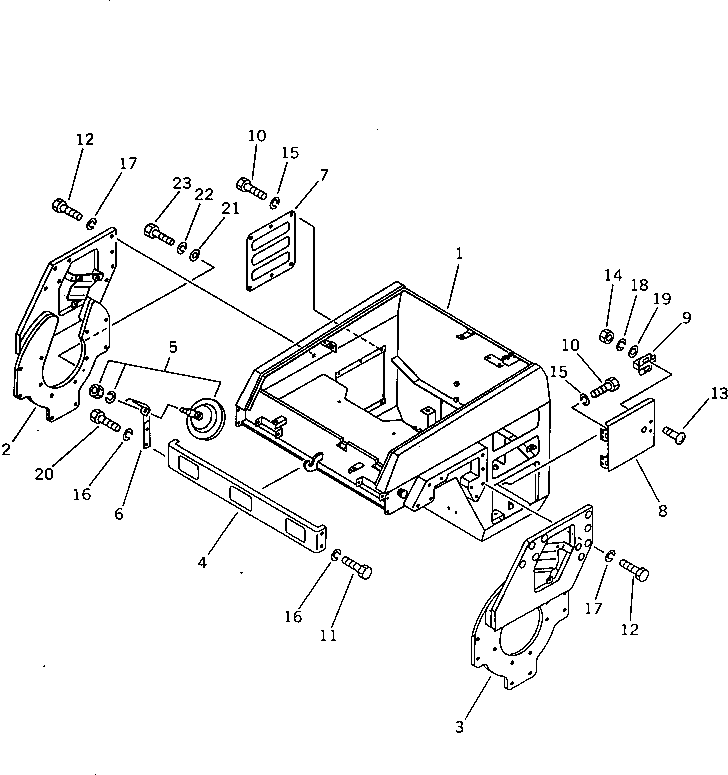

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 258-10-21004 | FRAME | 1 | SN: 2701- |
|||
| ? | 258-10-22802 | COVER,R.H. | 1 | SN: 2051- |
|||
| ? | 258-10-22902 | COVER,L.H. | 1 | SN: 2051- |
|||
| ? | 258-10-26310 | COVER | 1 | SN: 2001- |
|||
| ? | 257-10-17610 | MIRROR | 1 | SN: 2001- |
|||
| ? | 258-10-27511 | STAY | 1 | SN: 2001- |
|||
| ? | 258-10-26721 | COVER | 1 | SN: 2001- |
|||
| ? | 258-10-26803 | COVER | 1 | SN: 2701- |
|||
| ? | 258-10-26900 | LATCH | 1 | SN: 2701- |
|||
| ? | 01010-30816 | BOLT | 10 | SN: 2001- |
|||
| ? | 01010-31020 | BOLT | 2 | SN: 2001- |
|||
| ? | 01010-31660 | BOLT | 18 | SN: 2001- |
|||
| ? | 01235-40516 | SCREW | 2 | SN: 2701- |
|||
| ? | 01580-20504 | NUT | 2 | SN: 2701- |
|||
| ? | 01602-20825 | WASHER,SPRING | 10 | SN: 2001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 2001- |
|||
| ? | 01602-01648 | WASHER,SPRING | 18 | SN: 2001- |
|||
| ? | 01601-20513 | WASHER,SPRING | 2 | SN: 2701- |
|||
| ? | 01641-20508 | WASHER | 2 | SN: 2701- |
|||
| ? | 01010-31040 | BOLT | 2 | SN: 2001- |
|||
| ? | 26991-12-480 | WASHER | 1 | SN: 2031- |
|||
| ? | 01602-21030 | WASHER,SPRING | 1 | SN: 2031- |
|||
| ? | 01252-31035 | BOLT | 1 | SN: 2031- |
