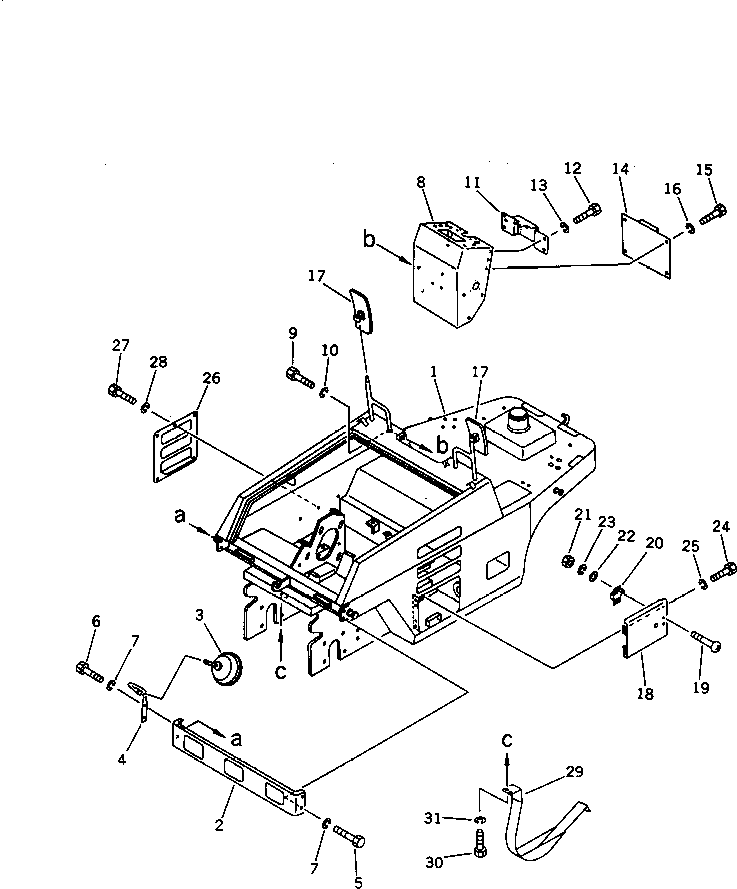

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 257-10-31000 | FRAME | 1 | SN: 1001- |
|||
| ? | 266-10-66310 | COVER | 1 | SN: 1001- |
|||
| ? | 257-10-17610 | MIRROR,UNDER | 1 | SN: 1001- |
|||
| ? | 258-10-27511 | STAY | 1 | SN: 1001- |
|||
| ? | 01010-51020 | BOLT | 2 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 257-10-35101 | BOARD,DASH | 1 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 258-10-25715 | COVER | 1 | SN: 1001- |
|||
| ? | 01010-50816 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 257-10-35600 | COVER | 1 | SN: 1001- |
|||
| ? | 01010-50816 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 257-10-17630 | MIRROR | 2 | SN: 1001- |
|||
| ? | 258-10-26803 | COVER | 1 | SN: 1001- |
|||
| ? | 01235-40516 | SCREW | 2 | SN: 1001- |
|||
| ? | 258-10-26900 | LATCH | 1 | SN: 1001- |
|||
| ? | 01580-10504 | NUT | 2 | SN: 1001- |
|||
| ? | 01641-20508 | WASHER | 2 | SN: 1001- |
|||
| ? | 01602-20513 | WASHER,SPRING | 2 | SN: 1001- |
|||
| ? | 01010-50816 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 258-10-26722 | COVER | 1 | SN: 1001- |
|||
| ? | 01010-50816 | BOLT | 6 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 6 | SN: 1001- |
|||
| ? | 257-10-35200 | COVER,CHAIN | 1 | SN: 1001- |
|||
| ? | 01010-50816 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 4 | SN: 1001- |
