| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||||
| ? | (56B-13-10002) | TORQFLOW ASS'Y | 1 | SN: (100063)-0001076) |
|||
| ? | (56B-13-10001) | TORQFLOW ASS'Y | 1 | SN: (0005)-(100062) |
|||
| ? | (56B-13-10000) | TORQFLOW ASS'Y | 1 | SN: (1001-(0004) |
|||
| ? | THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS. | ||||||

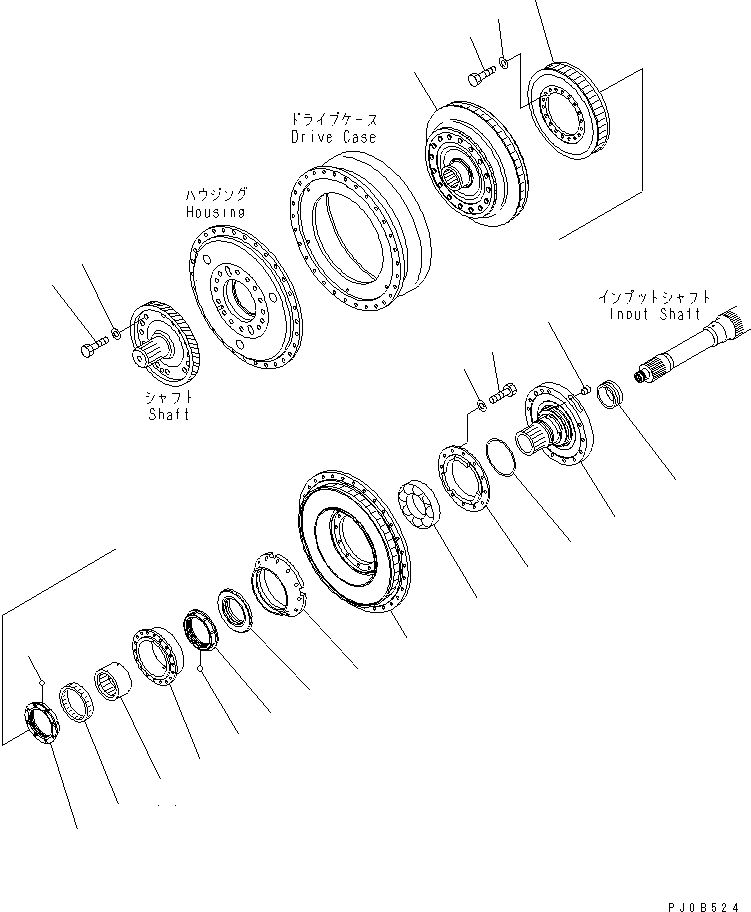

| ? | 56B-13-11000 | • TORQUE CONVERTER A. | 1 | SN: (1001-1076) |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3300-65A0 AND F3300-66A0. | ||||||
| ? | 711-20-31120 | • • PUMP | 1 | SN: (1001-1076) |
|||
| ? | 711-20-31140 | • • RETAINER | 1 | SN: (1001-1076) |
|||
| ? | 711-20-31190 | • • GUIDE | 1 | SN: (1001-1076) |
|||
| ? | 01010-81040 | • • BOLT | 12 | SN: (1001-1076) |
|||
| ? | 01643-31032 | • • WASHER | 12 | SN: (1001-1076) |
|||
| ? | 711-40-21510 | • • TURBINE ASS'Y | 1 | SN: (1001-1076) |
|||
| ? | ☆ | • • • TURBINE | 1 | SN: (1001-1076) |
|||
| ? | ☆ | • • • BOSS | 1 | SN: (1001-1076) |
|||
| ? | ☆ | • • • PLATE | 1 | SN: (1001-1076) |
|||
| ? | ☆ | • • • RIVET | 16 | SN: (1001-1076) |
|||
| ? | 711-20-32110 | • • STATOR | 1 | SN: (1001-1076) |
|||
| ? | 711-20-32120 | • • RACE | 1 | SN: (1001-1076) |
|||
| ? | 01010-81025 | • • BOLT | 18 | SN: (1001-1076) |
|||
| ? | 01643-31032 | • • WASHER | 18 | SN: (1001-1076) |
|||
| ? | 711-20-12141 | • • BUSHING | 2 | SN: (1001-1076) |
|||
| ? | 711-20-12160 | • • WHEEL | 1 | SN: (1001-1076) |
|||
| ? | 04260-00635 | • • BALL | 2 | SN: (1001-1076) |
|||
| ? | 711-20-32130 | • • RACE | 1 | SN: (1001-1076) |
|||
| ? | 56B-13-12521 | • • SHAFT,STATOR | 1 | SN: (1001-1076) |
|||
| ? | 56B-13-12530 | • • SLEEVE | 1 | SN: (1001-1076) |
|||
| ? | 14X-15-19220 | • • SEAL RING (K1) | 1 | SN: (1001-1076) |
|||
| ? | 568-13-13351 | • • BEARING | 1 | SN: (1001-1076) |
|||
| ? | 711-40-12680 | • • NUT | 1 | SN: (1001-1076) |
|||
| ? | 07043-00108 | • • PLUG | 2 | SN: (1001-1076) |
|||
| ? | 01010-61645 | • • BOLT | 14 | SN: (0005)-0001076) |
|||
| ? | 01010-61640 | • • BOLT | 14 | SN: (1001-(0004) |
|||
| ? | 01643-31645 | • • WASHER | 14 | SN: (1001-1076) |
