| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

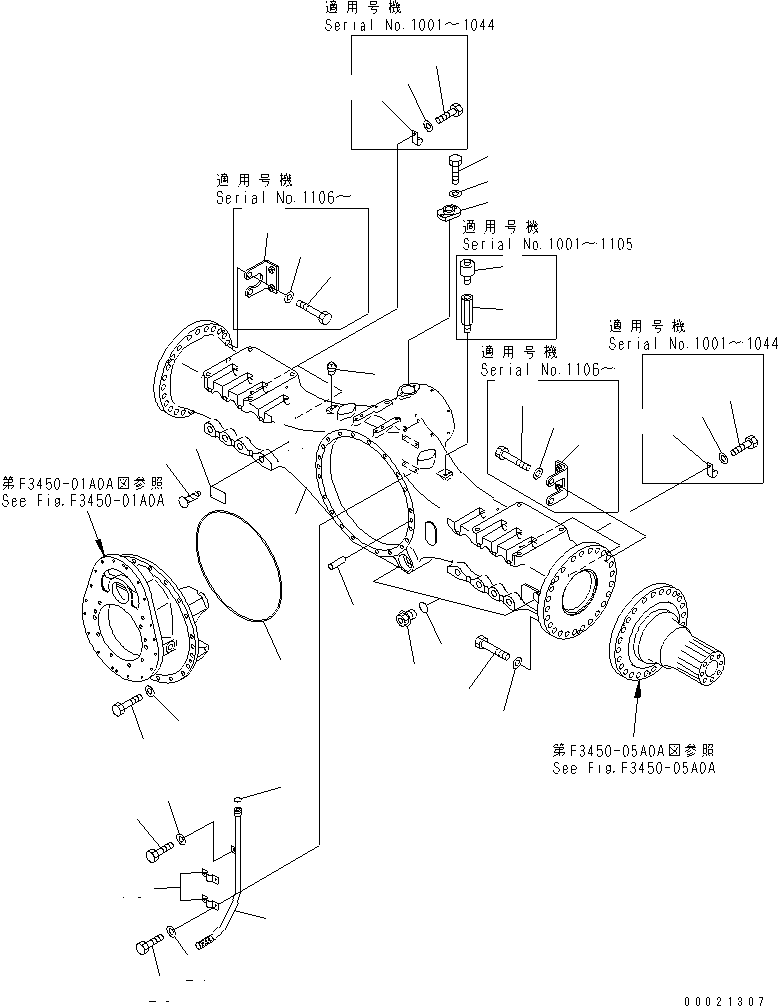

| ? | (56B-23-10005) | AXLE ASS'Y,CENTER | 1 | SN: .- |
|||
| ? | (56B-23-10004) | AXLE ASS'Y,CENTER | 1 | SN: 1106-. |
|||
| ? | (56B-23-10003) | AXLE ASS'Y,CENTER | 1 | SN: 1033-1105 |
|||
| ? | 04418-13060 | • SCREW | 4 | SN: 1001- |
|||
| ? | 815-02-10110 | • PLATE¤ NAME,(LIMITED SUPPLY) | 1 | SN: 1001- |
|||
| ? | 07044-13620 | • PLUG | 3 | SN: 1001- |
|||
| ? | 07002-13634 | • O-RING | 3 | SN: 1001- |
|||
| ? | 07030-00252 | • BREATHER | 1 | SN: 1001- |
|||
| ? | 170-21-11190 | • NIPPLE | 1 | SN: 1001- |
|||
| ? | 07042-00211 | • PLUG | 1 | SN: 1001- |
|||
| ? | 01010-61450 | • BOLT | 20 | SN: 1001- |
|||
| ? | 01643-31445 | • WASHER | 20 | SN: 1001- |
|||
| ? | 07000-15455 | • O-RING | 1 | SN: 1001- |
|||
| ? | 04020-01638 | • PIN,DOWEL | 1 | SN: 1001- |
|||
| ? | 01011-62000 | • BOLT | 46 | SN: 1106- |
|||
| ? | 01011-62000 | • BOLT | 50 | SN: 1001-1105 |
|||
| ? | 01011-62010 | • BOLT | 4 | SN: 1106- |
|||
| ? | 01643-32060 | • WASHER | 50 | SN: 1001- |
|||
| ? | 56B-43-18181 | • BRACKET | 1 | SN: 1106- |
|||
| ? | 56B-43-18152 | • BRACKET | 1 | SN: 1112- |
|||
| ? | 56B-43-18151 | • BRACKET | 1 | SN: 1106-1111 |
|||
| ? | 01010-81016 | • BOLT | 4 | SN: 1001-1044 |
|||
| ? | 01643-31032 | • WASHER | 4 | SN: 1001-1044 |
|||
| ? | 04434-51010 | • CLIP | 4 | SN: 1001-1044 |
|||
| ? | 56B-23-13110 | • HOUSING | 1 | SN: 1001- |
|||
| ? | 56B-23-19660 | • TUBE | 1 | SN: 1001- |
|||
| ? | 07282-12288 | • CLAMP | 2 | SN: 1001- |
|||
| ? | 01010-61020 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01643-51032 | • WASHER | 4 | SN: 1001- |
|||
| ? | 56B-22-11990 | • FLANGE | 1 | SN: 1001- |
|||
| ? | 01010-61020 | • BOLT | 2 | SN: 1001- |
|||
| ? | 01010-61030 | • BOLT | 2 | SN: 1001- |
|||
| ? | 01643-51032 | • WASHER | 2 | SN: 1001- |
|||
| ? | 07000-13022 | • O-RING | 1 | SN: 1001- |
